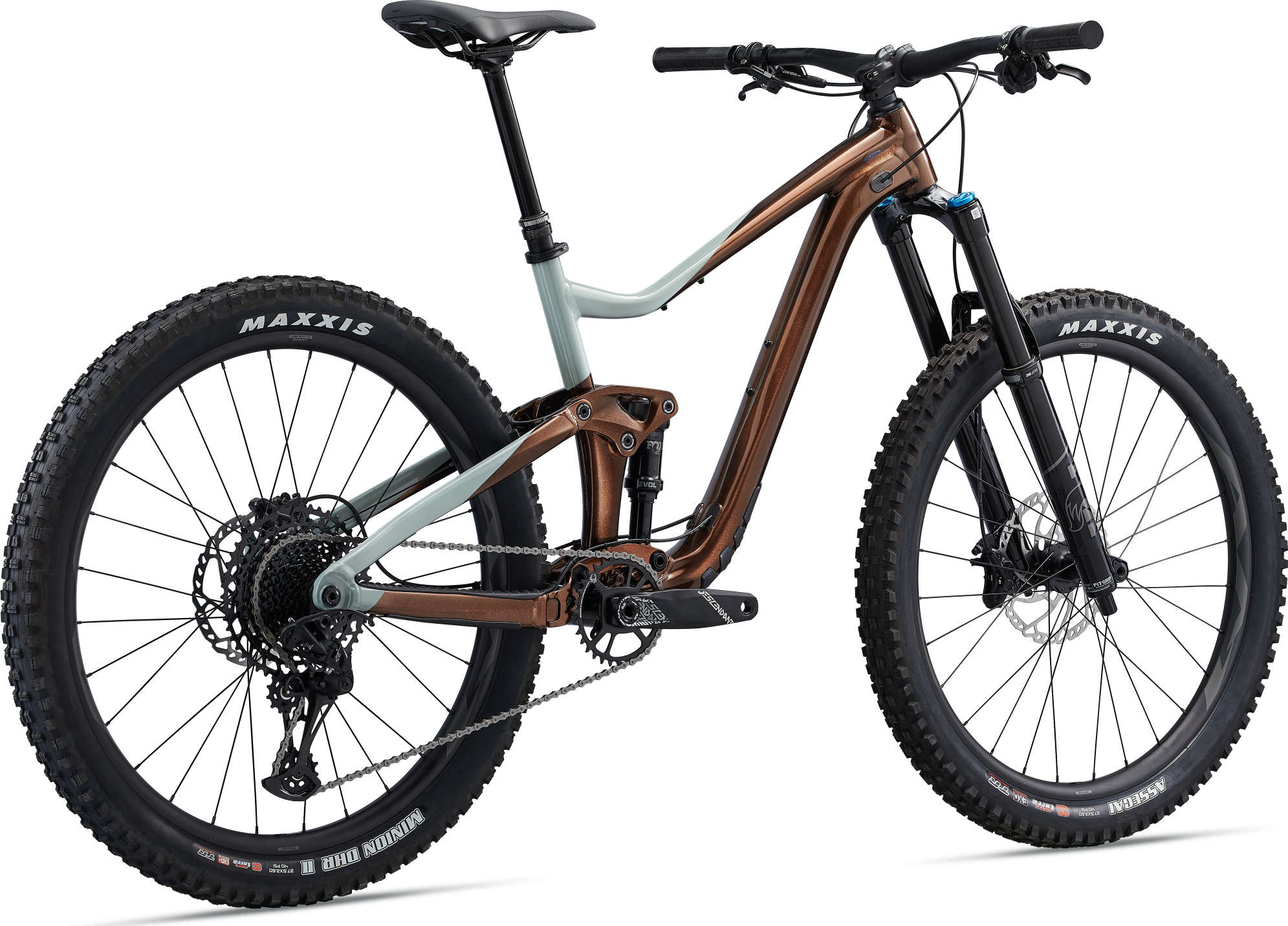

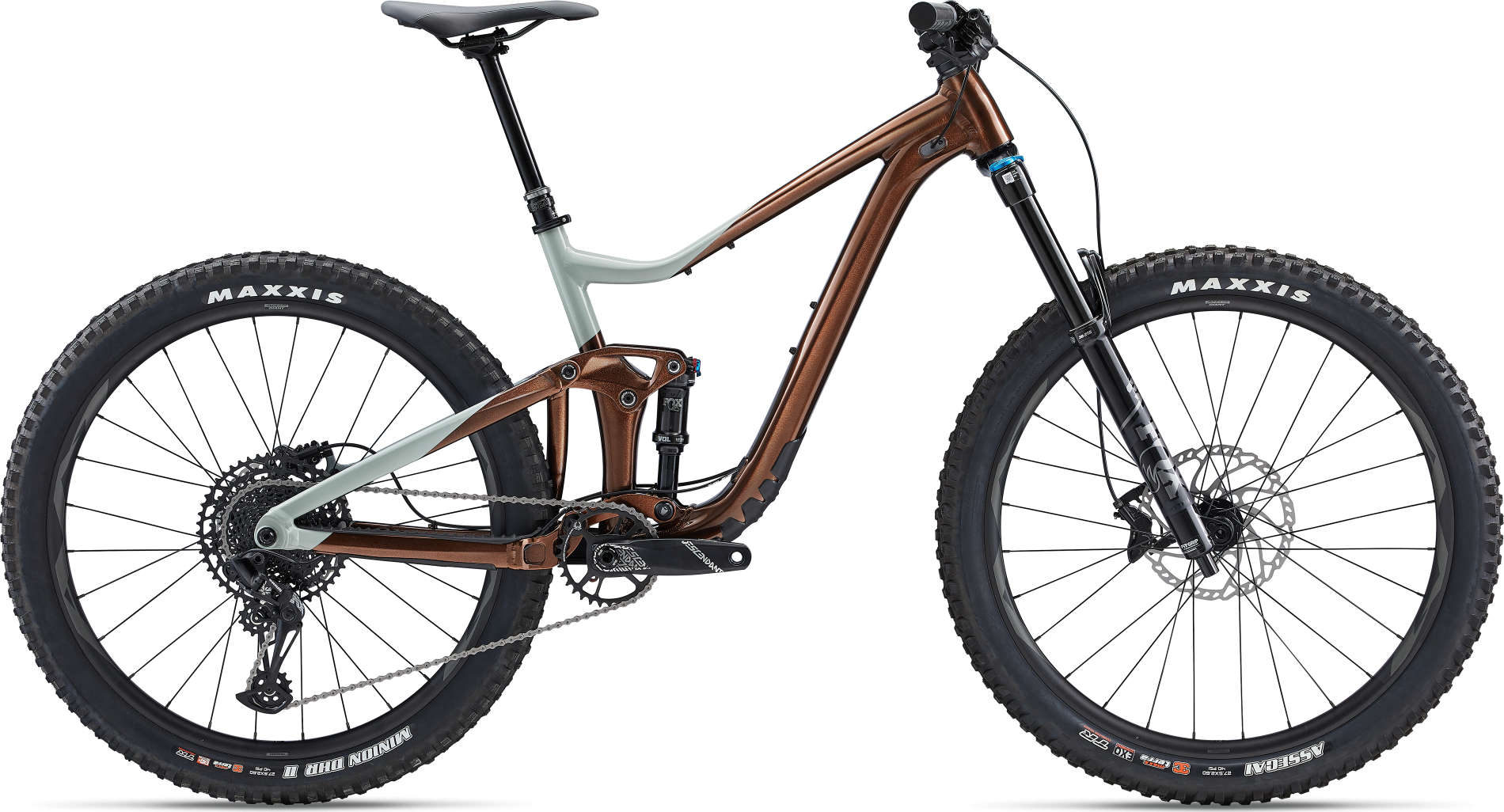

Float through rock gardens, hit the jumps, and find the faster line. With quick-handling 27.5 wheels and adjustable frame geometry, this lively trail bike is a party on wheels.
Built for those who favor the responsive, agile handling of 27.5 wheels, Trance X features a flip chip that lets you adjust the frame geometry for riding style and terrain. You can choose a steeper or slacker head tube angle and either a 20mm or 30mm bottom bracket drop. The ALUXX SL aluminum frame has an updated Maestro rear suspension featuring 145mm of smooth, active rear travel. A trunnion-mount shock and Advanced Forged Composite rocker arm help soak up bumps, giving you traction and control to float through rocks, roots and ruts. Confidence is further bolstered by a 160mm travel suspension fork up front.
FEATURES:
- Adjustable frame geometry: New flip chip feature lets you change the headtube and seattube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
- 27.5 agility and control: 27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
- Progressive suspension: Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
SPECS:
| Frame | ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, flip chip, 12x148mm thru-axle |
|---|---|
| Fork | Fox 36 Rhythm, GRIP damper, 37mm offset, 160mm, 15x110 Kabolt, custom tuned for Giant |
| Rear Shock | Fox Float DPS Performance, 185/55, custom tuned for Giant |
| Rims | Giant AM 27.5, alloy |
| Hubs | Alloy, sealed bearing |
| Spokes | Sapim |
| Tires | Front: Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR Rear: Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless |
| Bottom Bracket | SRAM DUB, press fit |
| Crankset | TruVativ Descendent 6k Eagle, 32t |
| Shifters | SRAM NX Eagle, 1x12 |
| Rear Derailleur | SRAM NX Eagle |
| Cassette/Freewheel | SRAM NX Eagle, 11x50 |
| Chain | SRAM GX Eagle |
| Brakes | Shimano Deore BR-MT520, hydraulic |
| Rotors | Shimano RT-66 rotors |
| Brake Levers | Shimano Deore BL-MT501 |
| Handlebars | Giant Contact TR35, 800x35mm, 20mm rise |
| Tape/Grips | Giant Tactal Pro Single |
| Stem | Giant Contact SL 35 |
| Seatpost | TranzX travel-adjustable dropper, remote |
| Saddle | Giant Romero |
| Pedals | Sold separately |
| Accessories & Extras | Tubeless prepared, 2.6" max tire size, 34t max chainring size |
