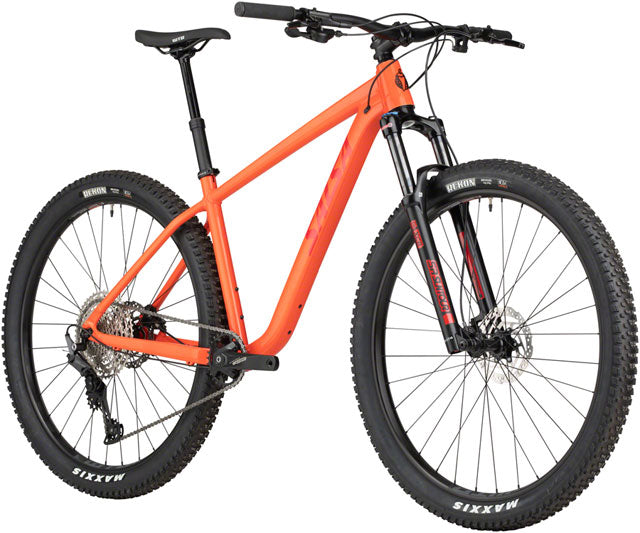

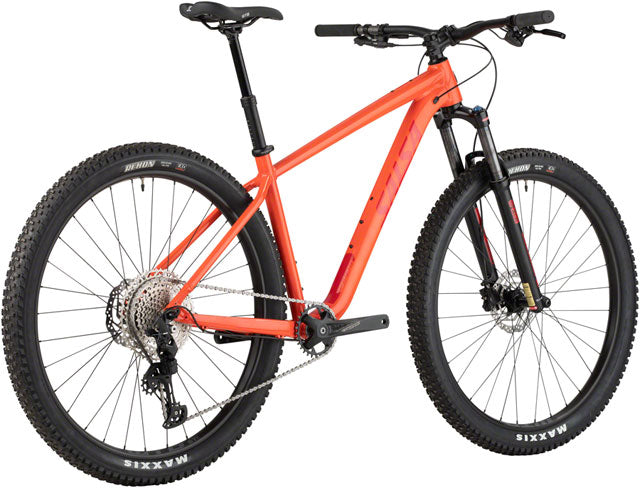

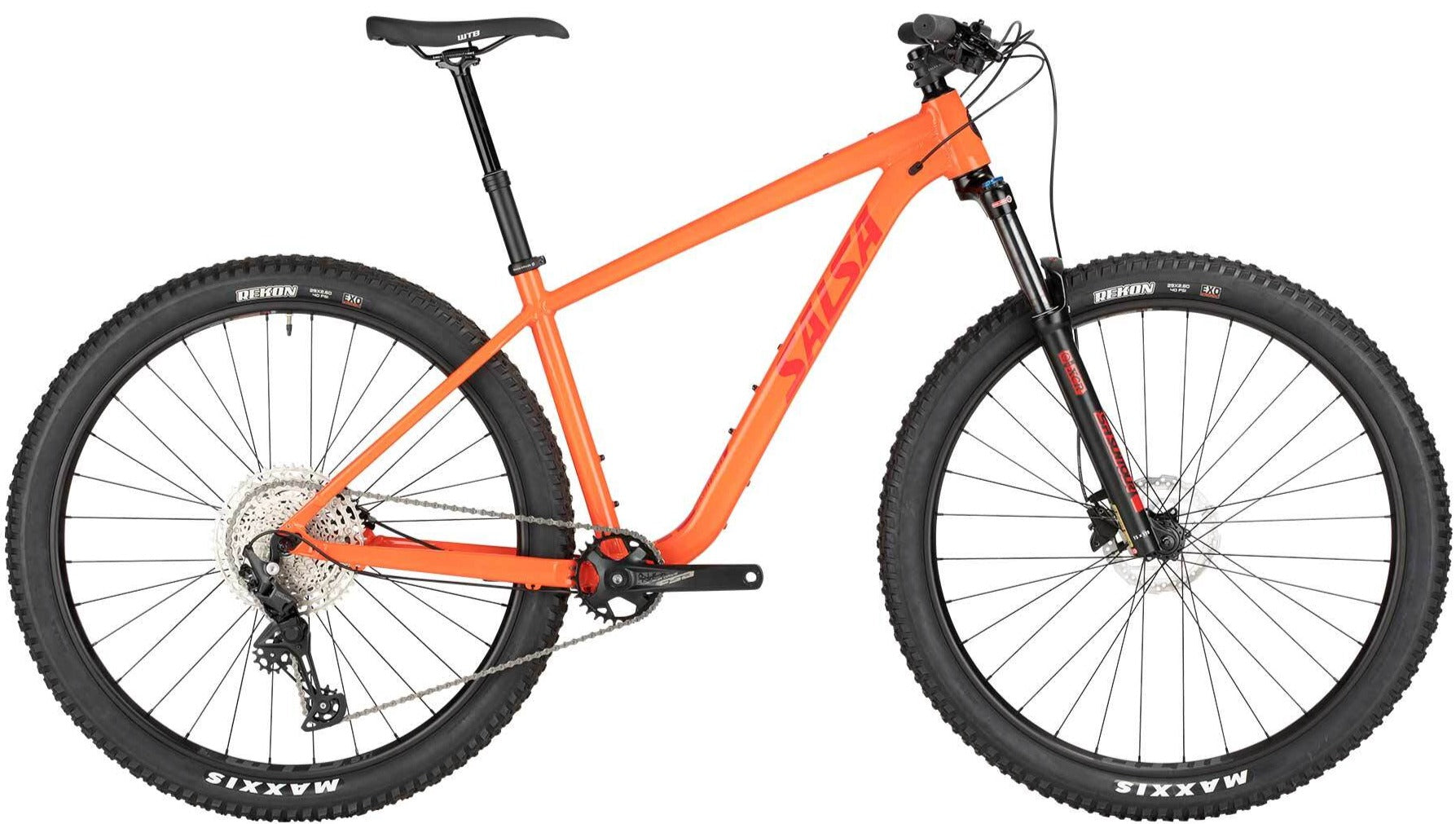

Rangefinder Deore 11 29 is a true trail hardtail companion for your local loops and weekend adventures to off-road destinations far and wide. The stable trail geometry puts you in a position to climb, descend, and pedal through technical spots with assurance. The 120 mm suspension fork and dropper post give you the control to make easy work of many trail features. 29” wheels help you maintain momentum and 2.6”-wide tires keep you planted to the trail. Shimano’s 11-speed Deore drivetrain delivers smooth shifting and gear range that’ll serve you well while climbing, pedaling through flat sections, and everything in between.
FEATURES:
- 6061-T6 alloy frame
- Internally-routed shift, brake and dropper post housing
- 120 mm suspension fork and dropper post
- 1x drivetrain keeps shifting simple with plenty of gear range
- Hydraulic brakes offer confident stopping power
- Compatible with 29" or 27.5 plus wheels and tires
- Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
- Geometry that grants confidence to newer mountain bikers
SPECS:
Frame | Rangefinder Aluminum |
Fork | SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm |
Rear Shock | N/A |
Rims/Wheels | Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i30 32h 29" rim [F] Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i30 32h 29" rim [R] |
Hubs | N/A |
Spokes | N/A |
Tires | Maxxis Rekon 29 x 2.6", EXO Wire Bead (not tubeless compatible) |
Crankset | FSA Alpha Drive, FSA 124.5 mm bottom bracket |
Chainrings | 30t |
Bottom Bracket | N/A |
Chain | Shimano HG601 |
Front Derailleur | N/A |
Rear Derailleur | Shimano Deore M5100 SGS |
Cassette/Rear Cogs
|
Shimano Deore M5100 11–51t, 11-speed |
Shifters | Shimano Deore M5100 |
Handlebars | Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL |
Grips | Salsa File Tread |
Stem | Salsa Guide 31.8, 60 mm |
Brakes | Shimano MT200 OR Promax DSK-925 |
Pedals | N/A |
Saddle | WTB Volt Medium, Steel, 142 x 265 mm |
Seat Post | TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL |
