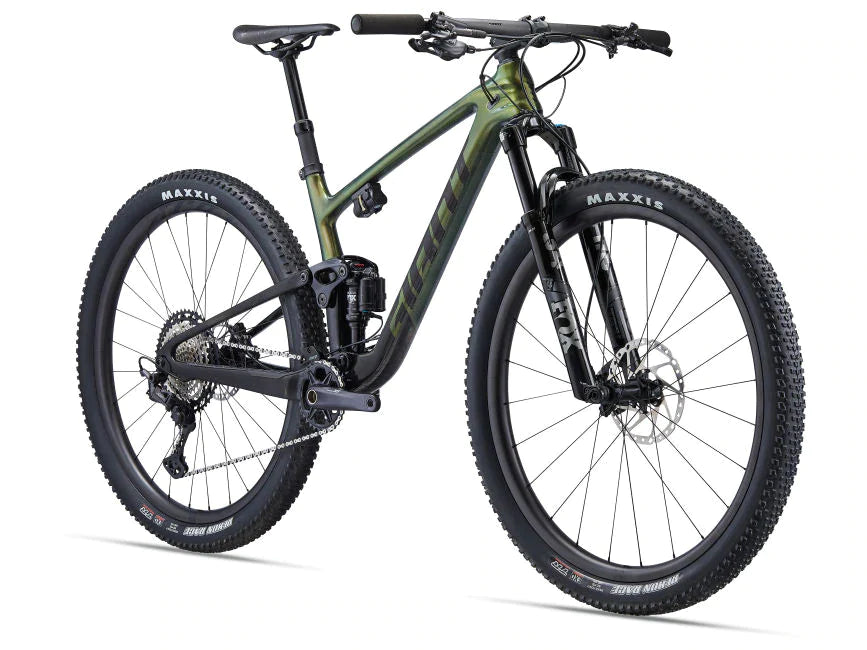

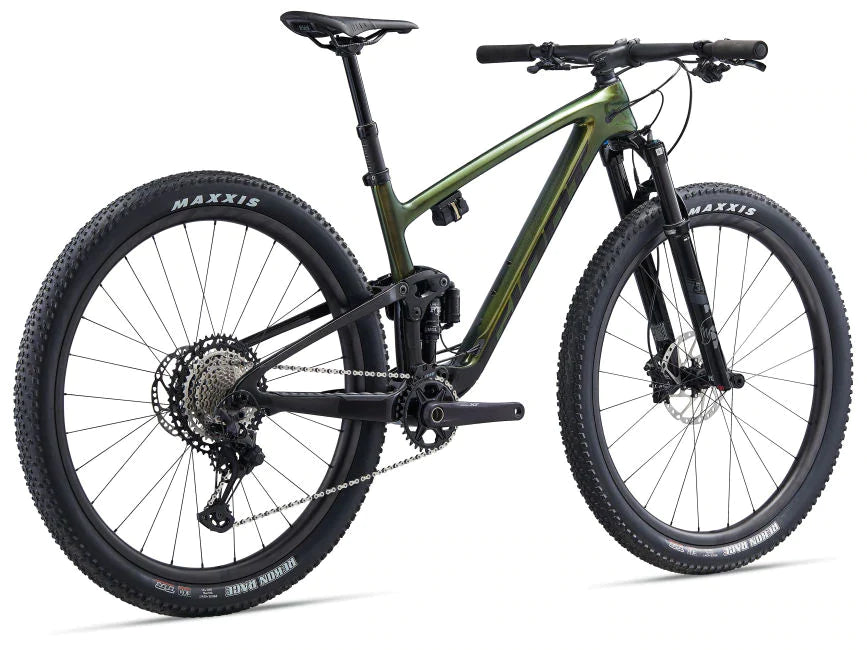

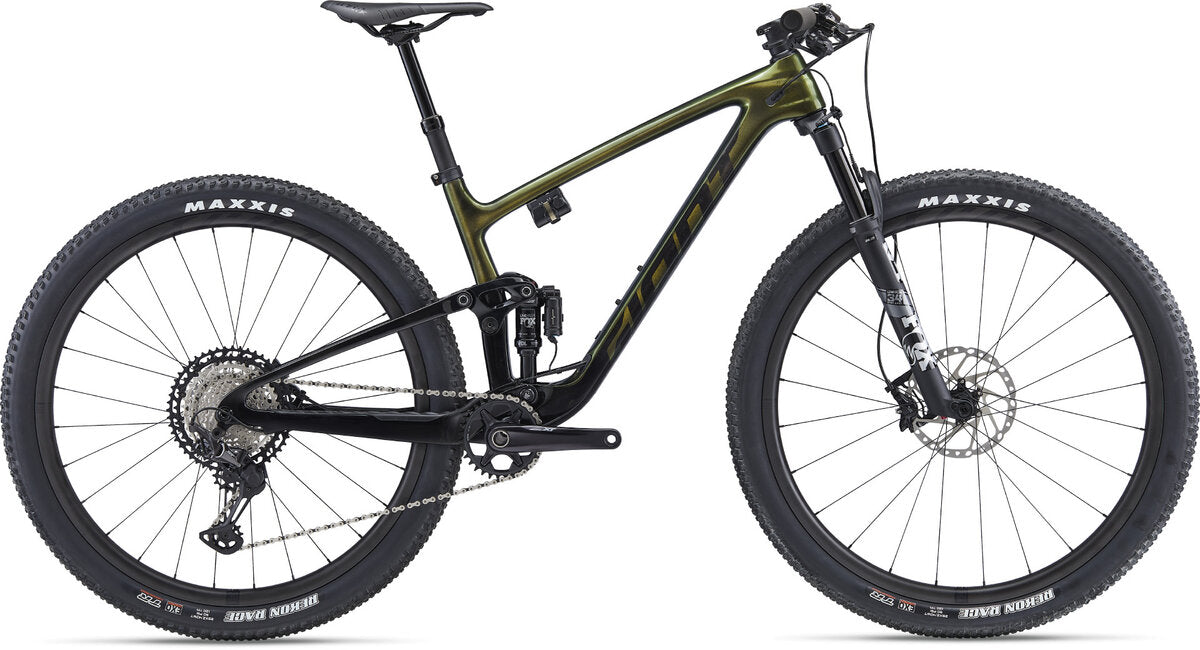

This pro-level XC flyer pairs new FlexPoint Pro rear suspension with a superlight full composite frame and race-ready geometry. It's the ultimate weapon for technical cross-country terrain.
Engineered with a full composite frameset, this 29er has 100mm of rear suspension travel and 110mm up front. The single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a lightweight, stiff composite wheelset options for quick, precise handling.
FEATURES:
- XC Efficiency: Advanced Composite frameset (mainframe and rear swingarm) is superlight with aggressive 69-degree headtube and 73.5-degree seattube angles for faster climbing and accelerating.
- 29er speed and stability: Frame geometry and suspension are optimized for 29-inch wheels to deliver a race-winning combo of speed and stability on XC terrain.

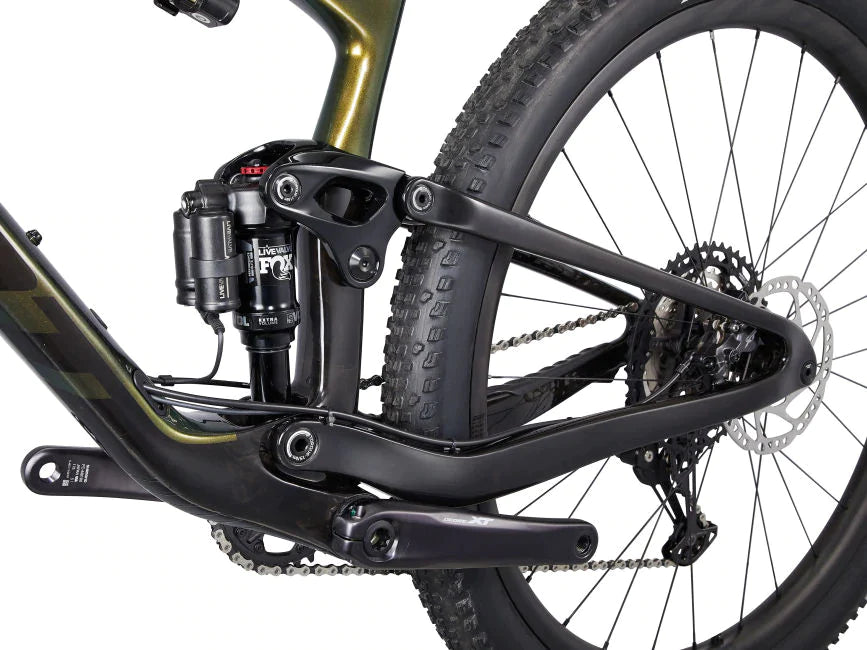

- Traction and control: Updated Maestro Suspension with an Advanced Forged Composite rocker arm and trunnion-mount shock delivers smooth suspension performance on XC climbs, corners and descents.
SPECS:
Frame | Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle |
---|---|
Fork | Fox 34 Float SC Performance Elite Live Valve, 110mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant |
Rear Shock | Fox Performance Elite Live Valve, 165/45, custom tuned for Giant |
Rims | Giant XCR 1 29 Carbon WheelSystem |
Hubs | Giant XCR 1 29 Carbon WheelSystem |
Spokes | Giant XCR 1 29 Carbon WheelSystem |
Tires | Maxxis Recon Race 29x2.4, foldable, TLR, EXO, tubeless |
Bottom Bracket | Shimano, press fit |
Crankset | Shimano Deore XT, 32t S:170mm, M:175mm, L:175mm, XL:175mm |
Shifters | Shimano Deore XT SL-M8100, 1x12 |
Rear Derailleur | Shimano Deore XT RD-M8100 |
Cassette/Freewheel | Shimano Deore XT M8100, 10x51 |
Chain | KMC X-12 |
Brakes | Shimano Deore XT BR-M8100, hydraulic, Shimano RT-64 rotors [F]180mm, [R]160mm |
Brake Levers | Shimano Deore XT BL-M8100 |

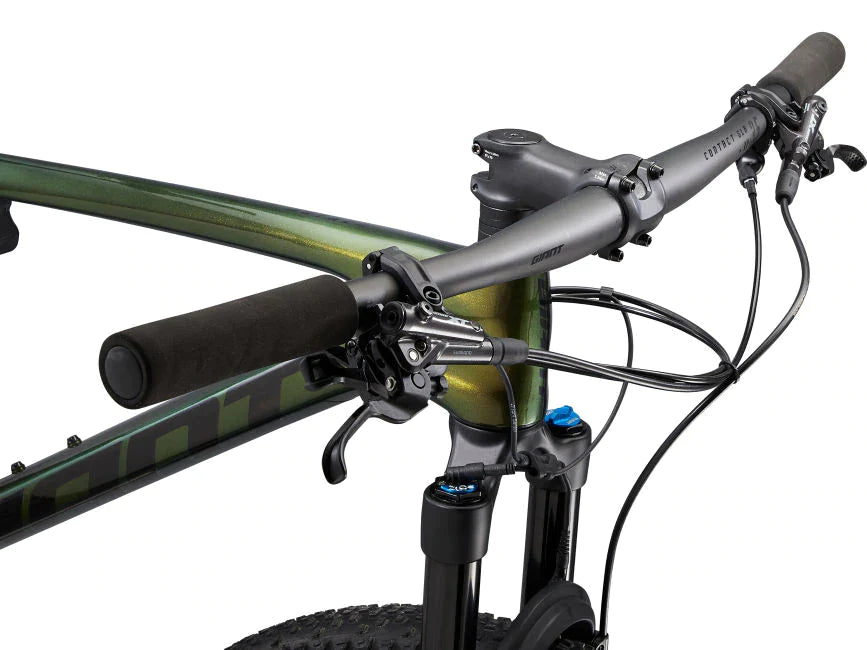

Handlebars | Giant Contact SLR XC Flat, composite, 760x35mm |
Tape/Grips | Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm |
Stem | Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm |
Seatpost | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 150mm travel / 30.9 x 445mm |
Saddle | Fi'zi:k Antares R5 with K:ium rails |
Pedals | Sold separately |
Accessories & Extras | tubeless prepared, 2.4" max tire size, 34t max chainring size, Giant/MRP CS chain guide |
