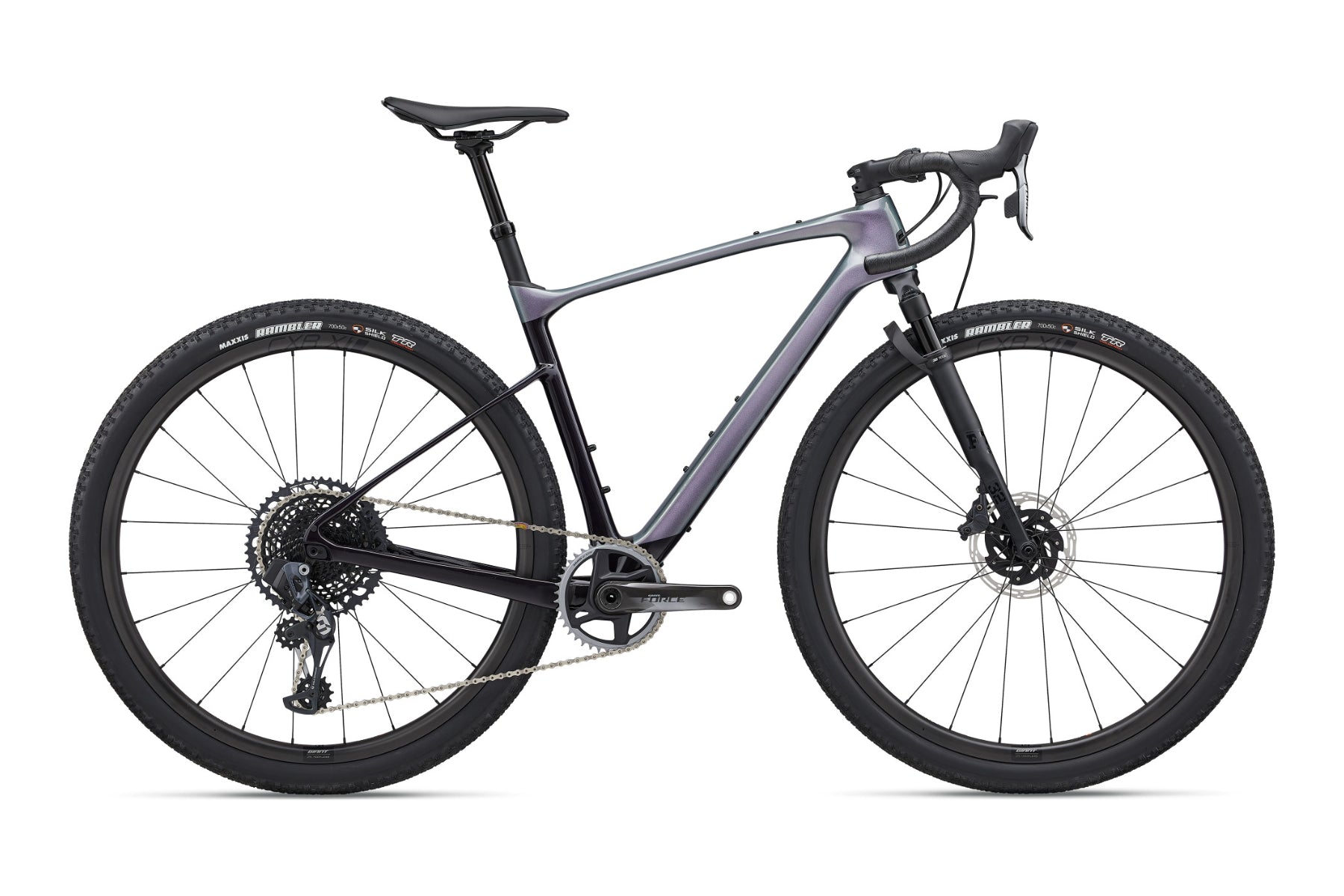

Giant Revolt X Advanced Pro 0

Giant Revolt X Advanced Pro 0

Regular price
$8,499.99
Sale price
$8,499.99
Regular price
Contact us - Most items can arrive within 3 to 5 business days
Unit price
per

Washboard Descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you'll get on a gravel ride. This new composite gravel machine features a suspension fork and engineered compliance to help you float through all of it with speed and control.

The Advanced composite frameset is designed with suspension-optimized geometry and paired with a 40mm travel fork, delivering a smooth, controlled ride quality on rugged gravel and dirt. A flip chip on the rear dropout lets you adjust the wheelbase and increase tire clearance up to 53mm. You can use the included dropper post, switch to a proprietary Giant D-Fuse seatpost for added compliance, or use a standard 30.9mm round seatpost. A Contact SL XR D-Fuse handlebar further minimizes fatigue by absorbing shocks and vibrations.

FEATURES:

  • Smooth Control: Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.
  • Tuned Compliance: Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
  • Adaptable to the Terrain: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.

SPECS:

Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork Fox 32 Float AX Performance Elite, 40mm, Fit 4 damper 12x100mm thru-axle
Rims/Wheels Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
Hubs [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tires Maxxis Rambler, 700x50c, tubeless
Crankset SRAM Force D1 DUB
Chainrings 40t
Bottom Bracket SRAM DUB, press fit
Chain SRAM X01 Eagle
Front Derailleur None
Rear Derailleur SRAM X01 Eagle AXS
Cassette/Rear Cogs
SRAM XG-1295, 12-speed, 10x52
Shifters SRAM Force eTap AXS, 1x12
Handlebars Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
Brake Levers SRAM Force eTap AXS
Brakes SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors[F]160mm, [R]160mm
Saddle Giant Approach SL
Seat Post Postmodern, dropper, 30.9mm with 25mm of suspension
Extras Tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
