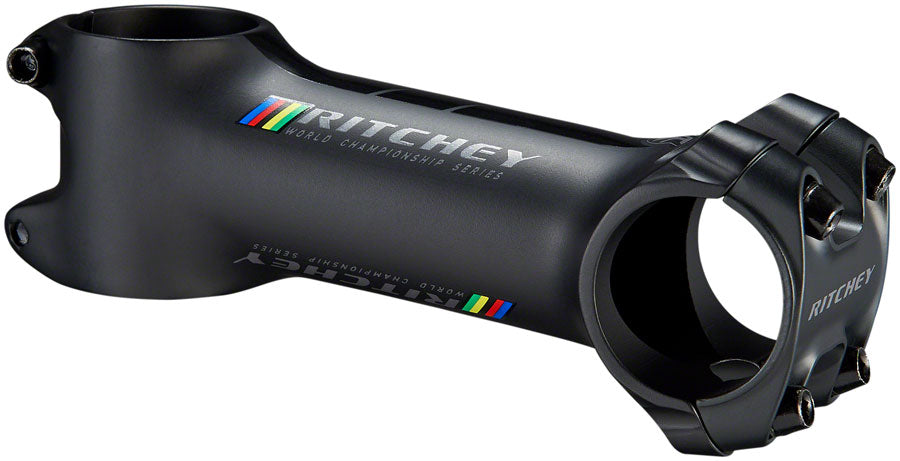

The WCS C220 stem is easy to install and remove thanks to a press-fit handlebar clamp interface and forward-facing hardware.
- The handlebar clamp design creates a more secure interface by wrapping a full 220 degrees over the handlebar
- Bolt forces are aligned with the clamp so that the stem body embraces the handlebar which is less prone to damaging lightweight bars
- Clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness
- Steerer Height: 42mm
- Faceplate Width: 42mm
The the WCS C220 stem rivals the performance of the revolutionary C260 stem design, but it's quicker and easier to install or remove thanks to a press-fit handlebar clamp interface and forward-facing hardware.
- The handlebar clamp design creates a more secure interface by wrapping a full 220 degrees over the handlebar
- Bolt forces are aligned with the clamp so that the stem body embraces the handlebar which is less prone to damaging lightweight bars
- Clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness
Item Specifications | |
---|---|
Stem Angle (deg) | +6 |
Stem Angle (deg) | -6 |
Length | 100 |
Bar Clamp Diameter (mm) | 31.8 |
Color | Blatte |
Weight | 132 |
Material | Aluminum |
Defined Color | Black |
Stack Height | 42 |
S.H.I.S. Stem Clamp Diameter | 31.8 |
UPC: 796941317726
MPN: 31055427068
