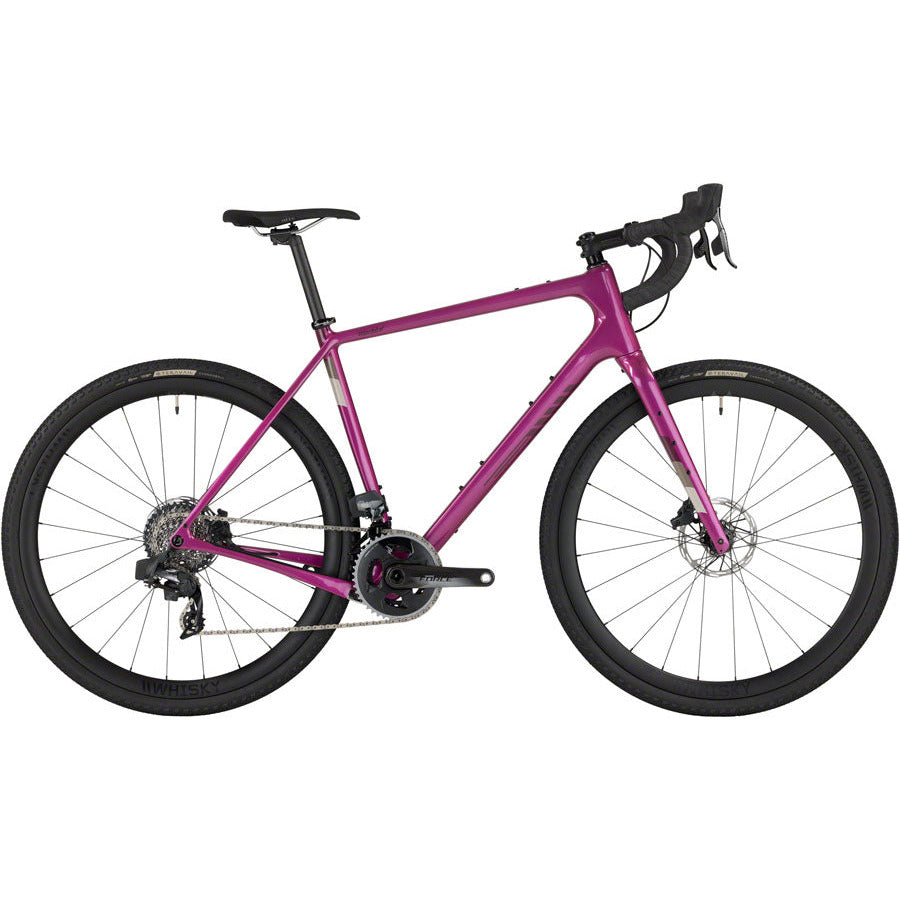

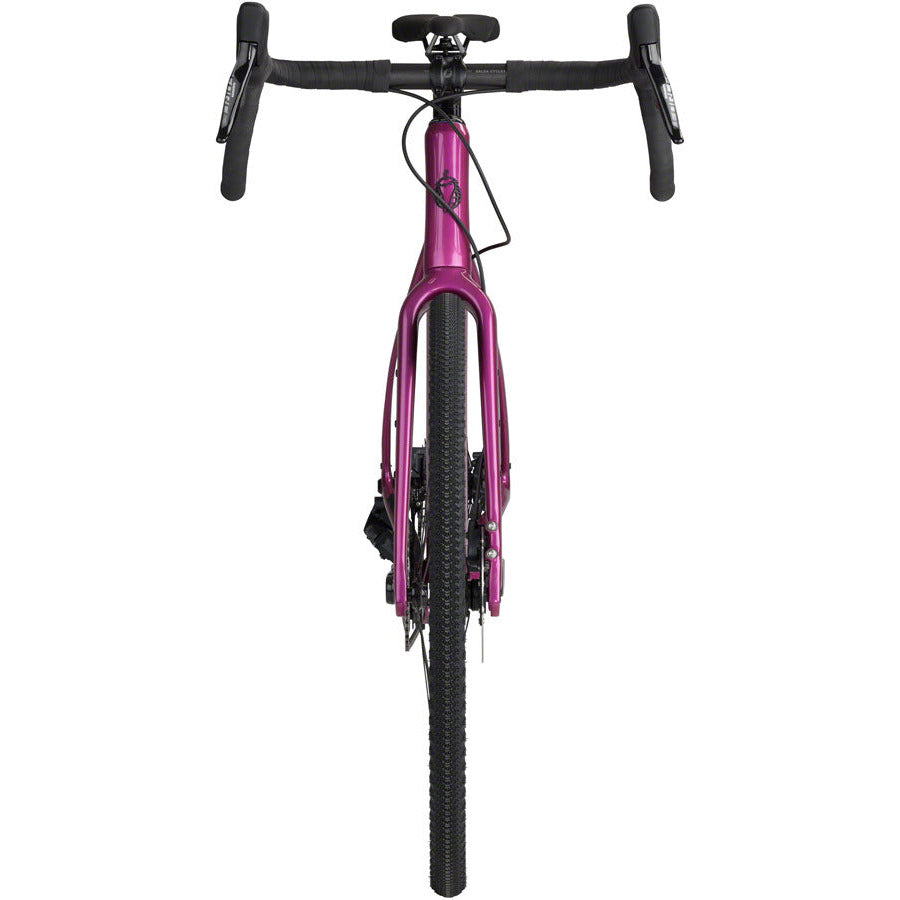

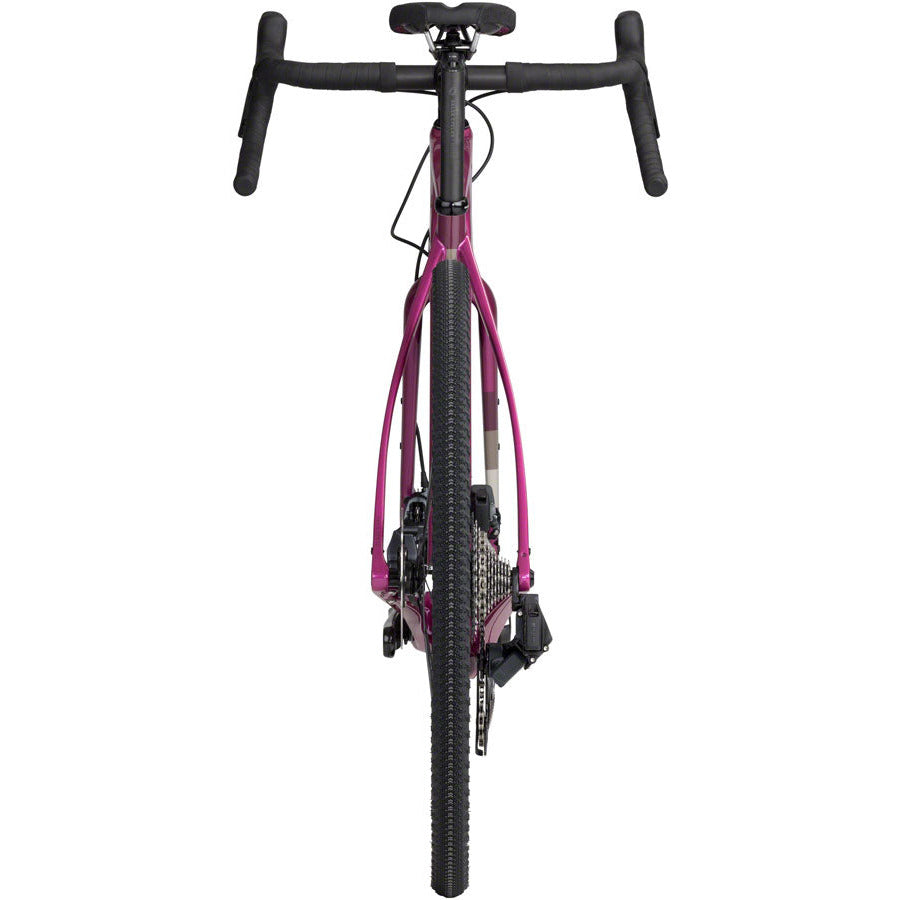

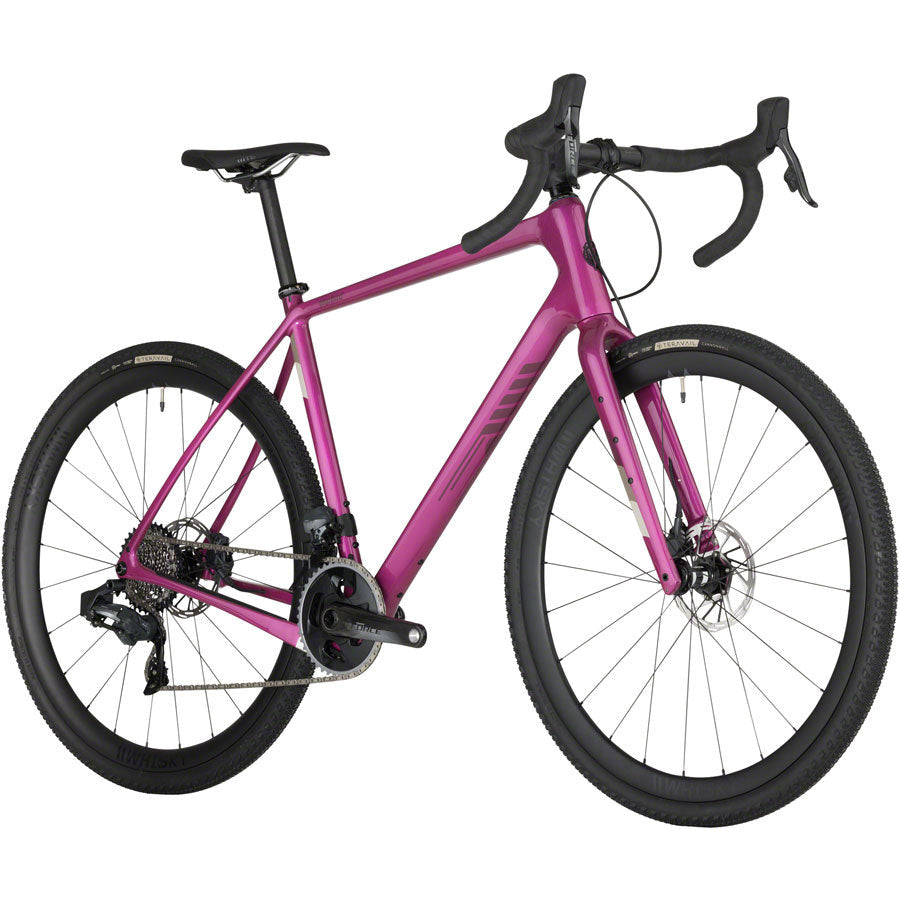

Salsa Warbird C Force AXS Bike - 700c, Carbon, Berry

$7,699.00
By Salsa
Size
Color

Warbird is Salsa's gravel race bike, built on years of experience racing in some of the nation’s premier gravel events. Its carbon fiber frameset, our carefully-honed gravel race geometry, and plentiful mounts for water, tools, and accessories make Warbird a top contender in the gravel bike world.

  • High-modulus carbon frame with rear thru-axle dropouts and rear rack compatibility via Rack-Lock seat collar (sold separately)
  • Class 5™ Vibration Reduction System (VRS) reduces fatigue caused by micro-impacts
  • Waxwing carbon fork featuring a 12 x 100mm thru-axle, Three-Pack and fender mounts, mid-blade eyelets, dynamo cable routing, and flat-mount brake standard
  • Compatible with 700c (45 mm maximum) and 650b (51 mm maximum) wheels and tires
  • Compatible with 1x, 2x, and electronic drivetrains
  • Internal sleeved cable routing, dropper post-compatible
  • Three water bottle mounts in the main triangle on 56–61 cm frames; two on 49–54.5 cm frames
  • Top tube mount for Salsa EXP Series Direct Mount Top Tube Bag and additional mount on underside of down tube
  • Accommodates a 40mm travel suspension fork and dropper post with internal routing (on 1x drivetrains only)
Specs

Specs

  • Fork Material: Carbon
  • Color: Berry
  • Wheel Size: 700c
  • Brake Type: Disc
  • Front Axle: 12mm Thru x 100mm
  • Platform: Warbird
  • Fork Type: Rigid
  • Frame Material: Carbon
  • TT (Effective): 499
  • Mfg Size: 49
  • Defined Color: Purple
  • Rear Axle: 12mm Thru x 142mm
  • Frame Type: Rigid
Build Kit

Build Kit

Geometry

Geometry



Frame measurements (mm) 49cm 52.5cm 54.5cm 56cm 57.5cm 59cm 61cm
A. BB Drop 70 70 70 70 70 70 70
B. Chainstay Length 430 430 430 430 430 430 430
C. Fork Length - Axle to Crown 405 405 405 405 405 405 405
D. Fork Offset 50 50 50 50 50 50 50
E. Head Tube Angle (deg) 70.5 70.8 70.8 70.8 70.8 70.8 70.8
F. Headtube Length 90 120 140 160 180 200 220
G. Reach 359 367 371 380 390 399 407
H. Seat Tube Angle (deg) 75 74 73 73 73 73 72.5
I. Seat Tube Length - Center to Top 390 440 475 510 520 545 570
J. Stack 521 550 569 588 607 626 644
K. Standover 670 714 744 770 786 808 831
L. Top Tube Length (Effective) 499 525 545 560 575 590 610
M. Wheelbase 996 1012 1023 1038 1054 1070 1085

Component measurements (mm)
Crank Arm Length 165 175 180 180 180 180 180
Handlebar Width 380 400 420 440 460 460 460
Stem Length 70 70 80 90 90 100 110
Seatpost Offset 18 18 18 18 18 18 18

* All dimensions are preliminary and subject to change.
