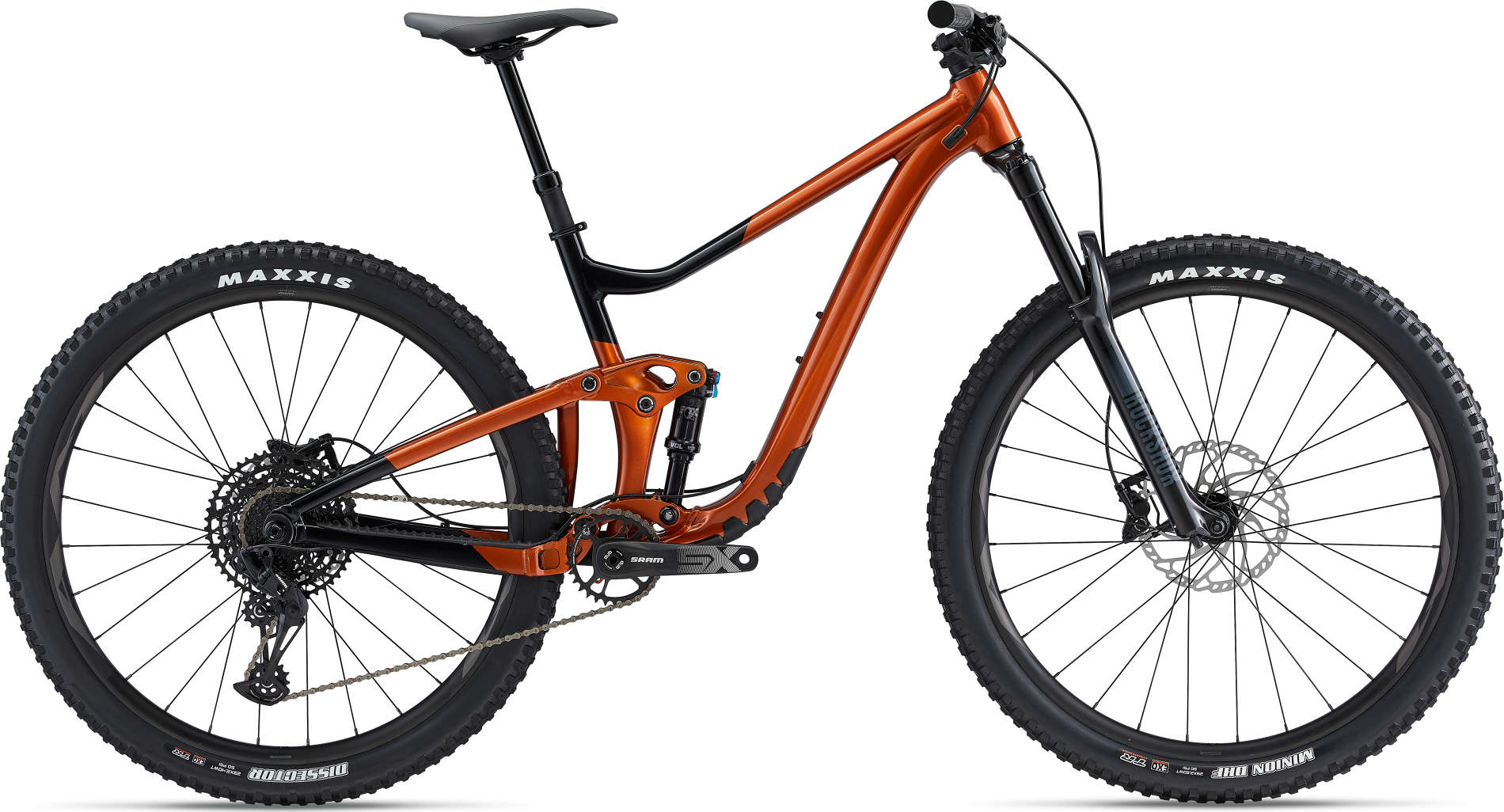

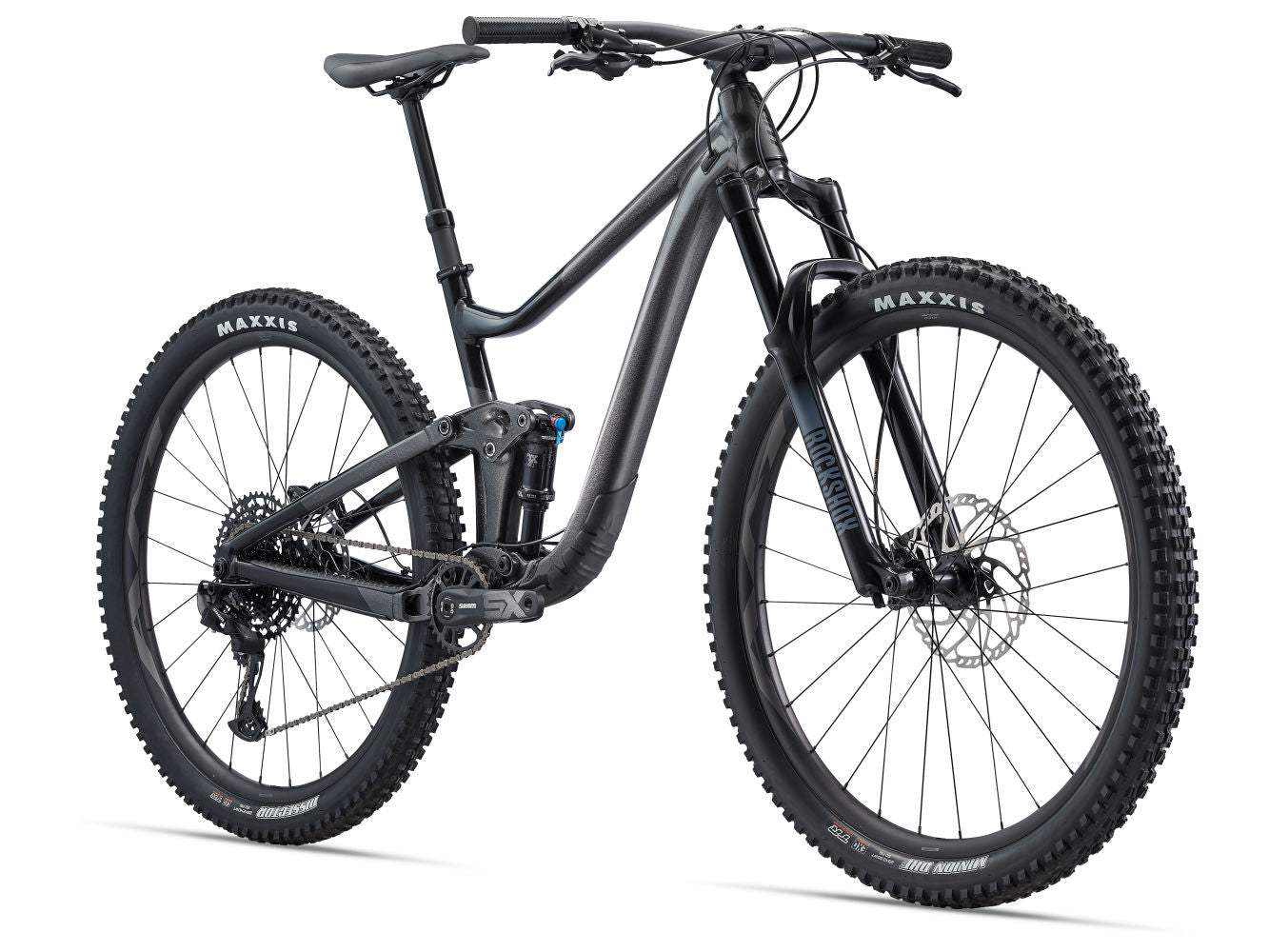

Chunky rock gardens, roots and technical climbs. This hard-charging trail bike adapts to the terrain, giving you confidence and control on all types of singletrack.
Engineered to help you ride faster and smoother on the toughest trails, this versatile trail bike has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry. Updated Maestro rear suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain.
- 29er confidence and control: 29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tires.
- Progressive suspension: Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
- Adjustable geometry: A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
|Frame||ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle|
|Fork||RockShox 35 Gold RL, 150mm, 44mm offset, 15x110 Maxle Stealth, custom tuned for Giant|
|Rear Shock||Fox Float DPS Performance, 185/55, custom tuned for Giant|
|Rims||Giant AM 29, alloy|
|Hubs||alloy, sealed bearing|
|Tires||[F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Aggressor 29x2.4, EXO, TR, tubeless|
|Bottom Bracket||SRAM DUB, press fit|
|Crankset||SRAM SX, 30t|
|Shifters||SRAM SX Eagle, 1x12|
|Rear Derailleur||SRAM SX Eagle|
|Cassette/Freewheel||SRAM SX, 11x50|
|Chain||SRAM SX Eagle|
|Brakes||Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm|
|Brake Levers||Shimano Deore BL-MT401|
|Handlebars||Giant Contact TR35, 780x35mm, 20mm rise|
|Tape/Grips||Giant Tactal Pro Single|
|Stem||Giant Contact SL 35|
|Seatpost||Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm|
|Accessories & Extras||tubeless prepared, 2.5" max tire size, 34t max chainring size|
