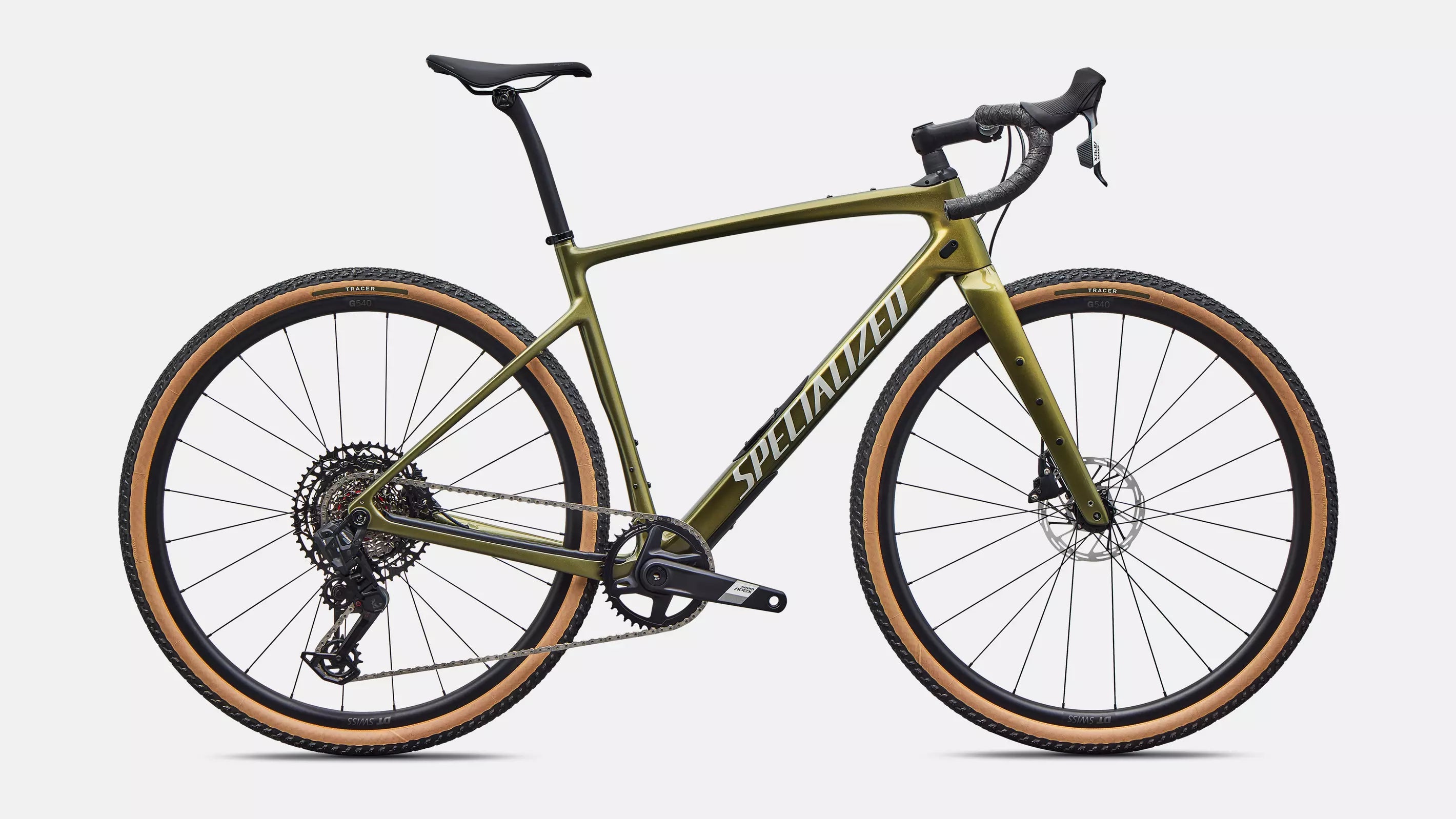

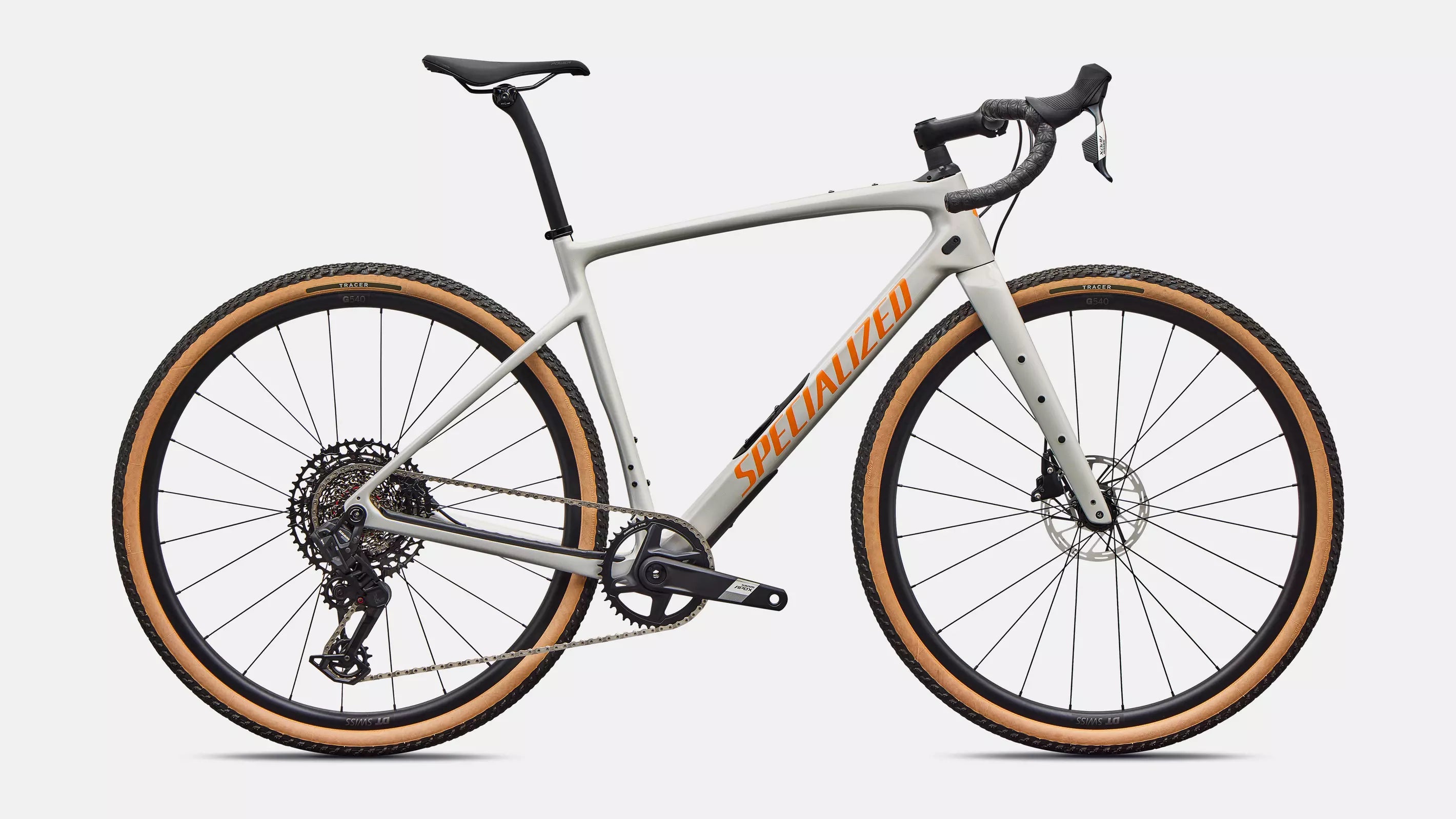

Specialized Diverge 4 Comp Carbon SRAM Apex AXS/S1000 (2026)

$4,199.99 $4,200.00
By Specialized
Color
Size

Specialized Diverge 4 Comp Carbon SRAM Apex AXS/S1000 (2026)



Diverge 4

The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

Use

Gravel Adventure/Race

Frameset

FACT 9r Carbon

Suspension

Future Shock 3.2

Drivetrain/Wheels

SRAM Apex AXS / S1000 Transmission / DT G540

Storage

SWAT 4.0

Weight

Diverge Comp: 9.70kg

Technical Specifications

Frameset
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front Brake
SRAM Apex, hydraulic disc
Rear Brake
SRAM Apex, hydraulic disc
Drivetrain
Cassette
SRAM 12-speed,10-52t
Shift Levers
SRAM Apex AXS
Crankset
SRAM Apex DUB Wide, 40t
Chain
SRAM GX T-Type 12 speed
Bottom Bracket
SRAM DUB BSA 68 Wide
Rear Derailleur
SRAM S1000 Eagle AXS
Wheels & tires
Front Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear Tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Inner Tubes
Presta, 700x32-50mm
Cockpit
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat Binder
Specialized Alloy, 30.8mm
Tape
Supacaz Super Sticky Kush
Accessories
SWAT
SWAT 4.0 internal downtube storage
Product details
Product ID
223513
Weight
Weight Size
56
Weight
9.7 kg (21 lb, 6.2 oz)

Geometry

49 52 54 56 58 61
Crank Length 165 170 172.5 172.5 175 175
Handlebar Width 380 400 420 420 440 440
Stem Length 60 70 80 90 100 100
Saddle Width 155 155 143 143 143 143
Seatpost Length 330 330 380 380 380 380
Stack 563 578 592 610 634 659
Reach 365 374 387 400 412 425
Head Tube Length 90 104 116 135 161 187
Head Tube Angle 70 70.5 71 71 71 71
BB Drop 85 85 85 85 85 85
Trail 72 68 65 65 65 65
Fork Length, Full 391 391 391 391 391 391
Fork Rake/Offset 55 55 55 55 55 55
Front Center 604 613 626 645 665 686
Chainstay Length 430 430 430 430 430 430
Wheelbase 1019 1031 1041 1060 1081 1102
Top Tube Length, Horizontal 521 537 556 575 593 613
Bike Standover Height 700 725 754 779 805 832
Seat Tube Length 400 430 470 500 530 560
Seat Tube Angle 74.5 74 74 74 74 74
