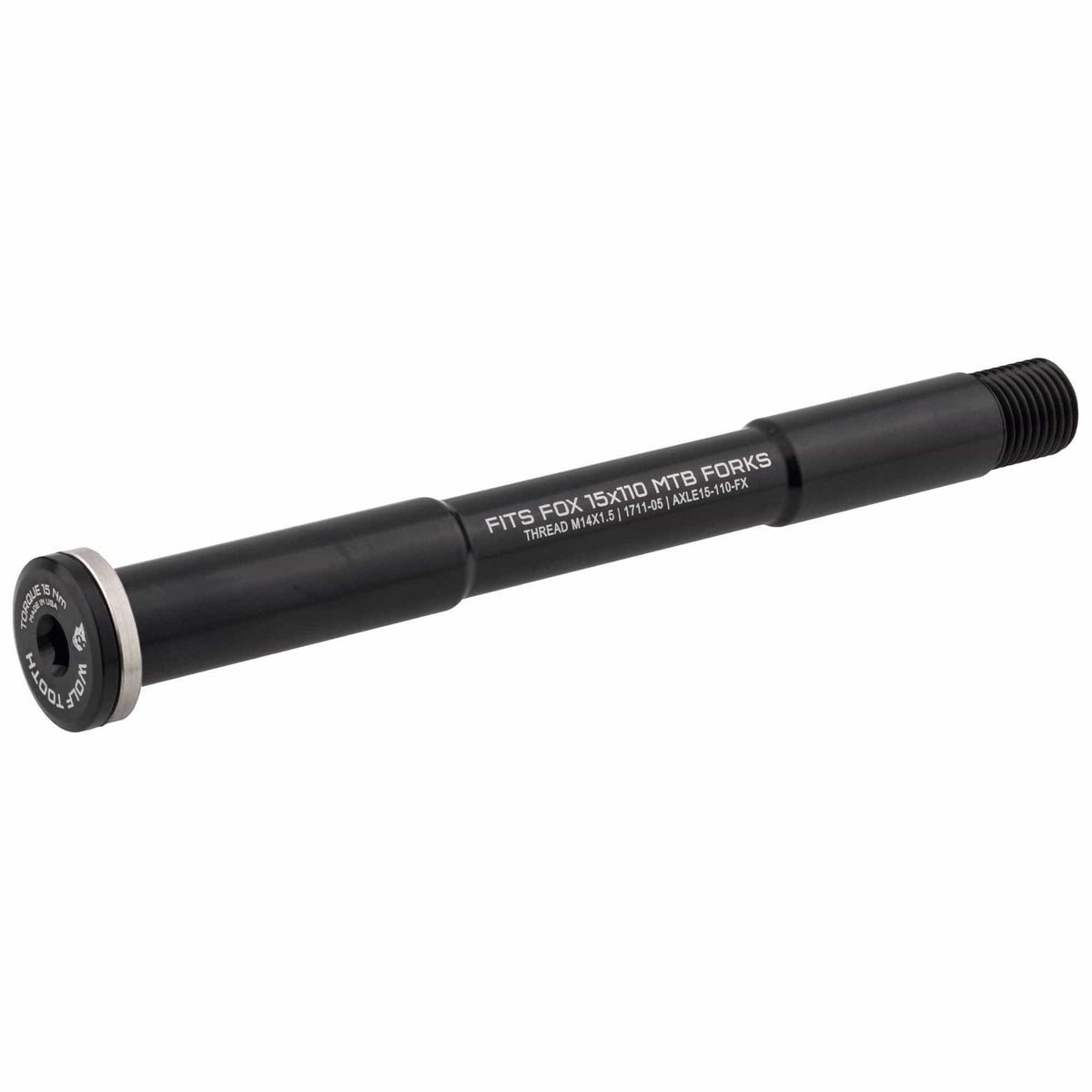

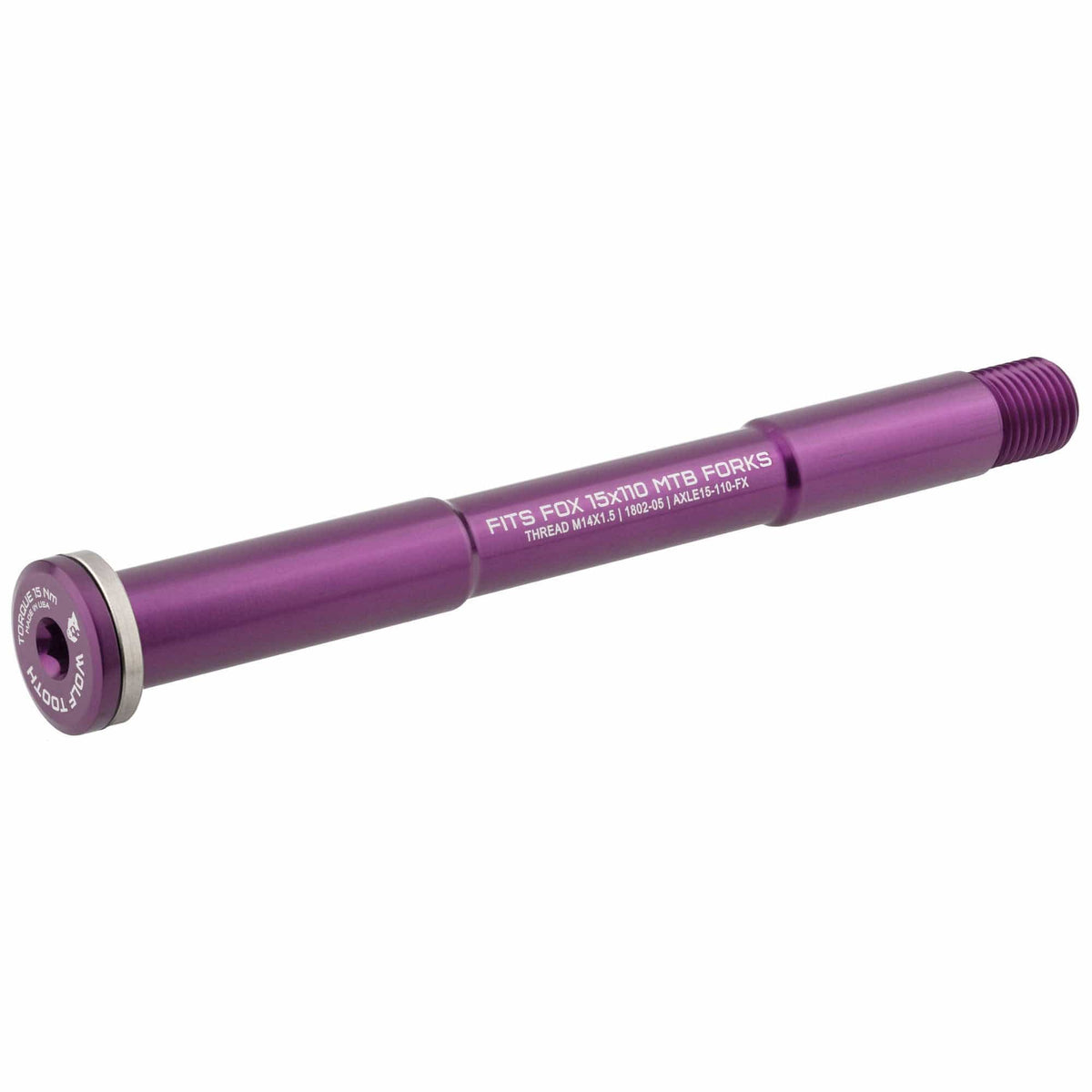

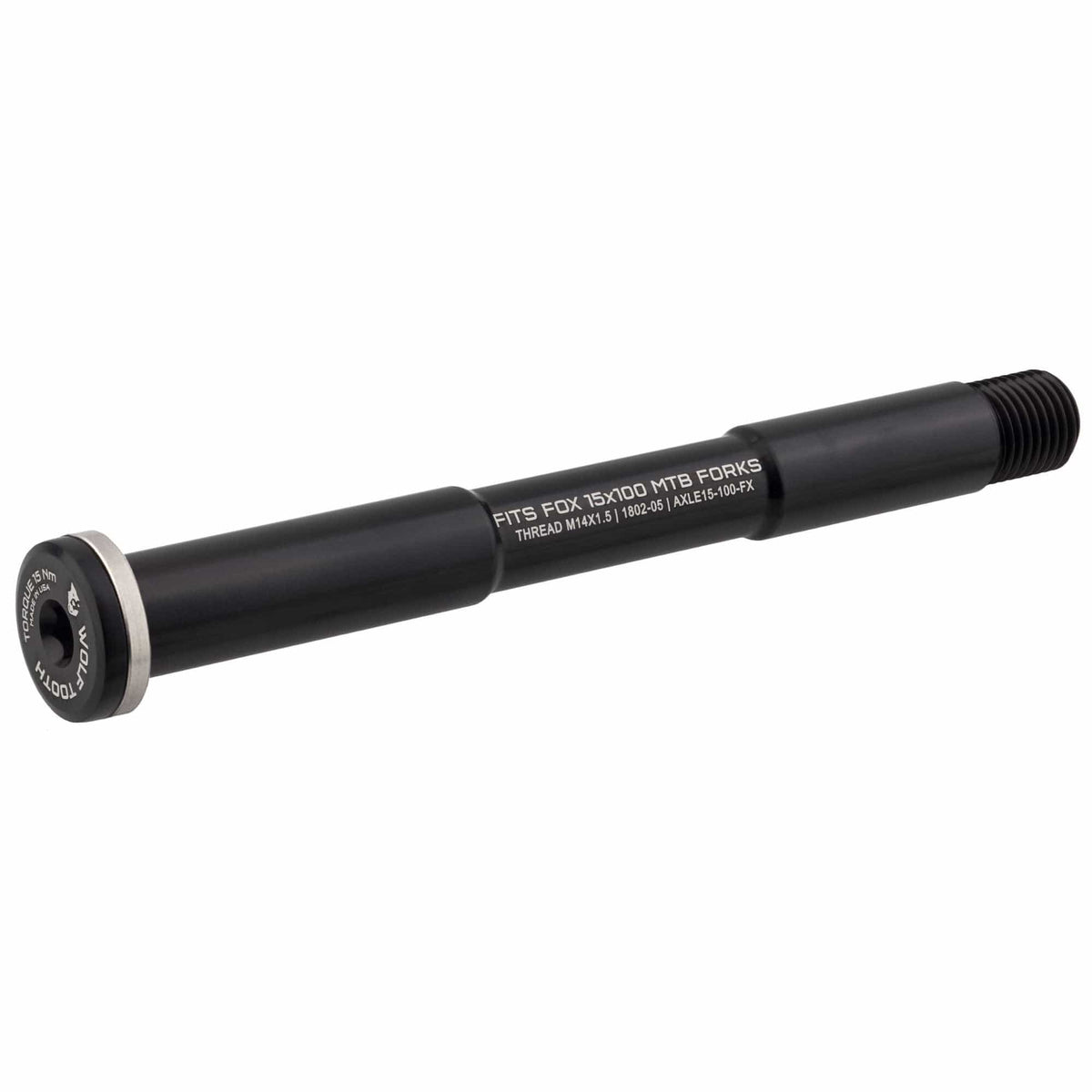

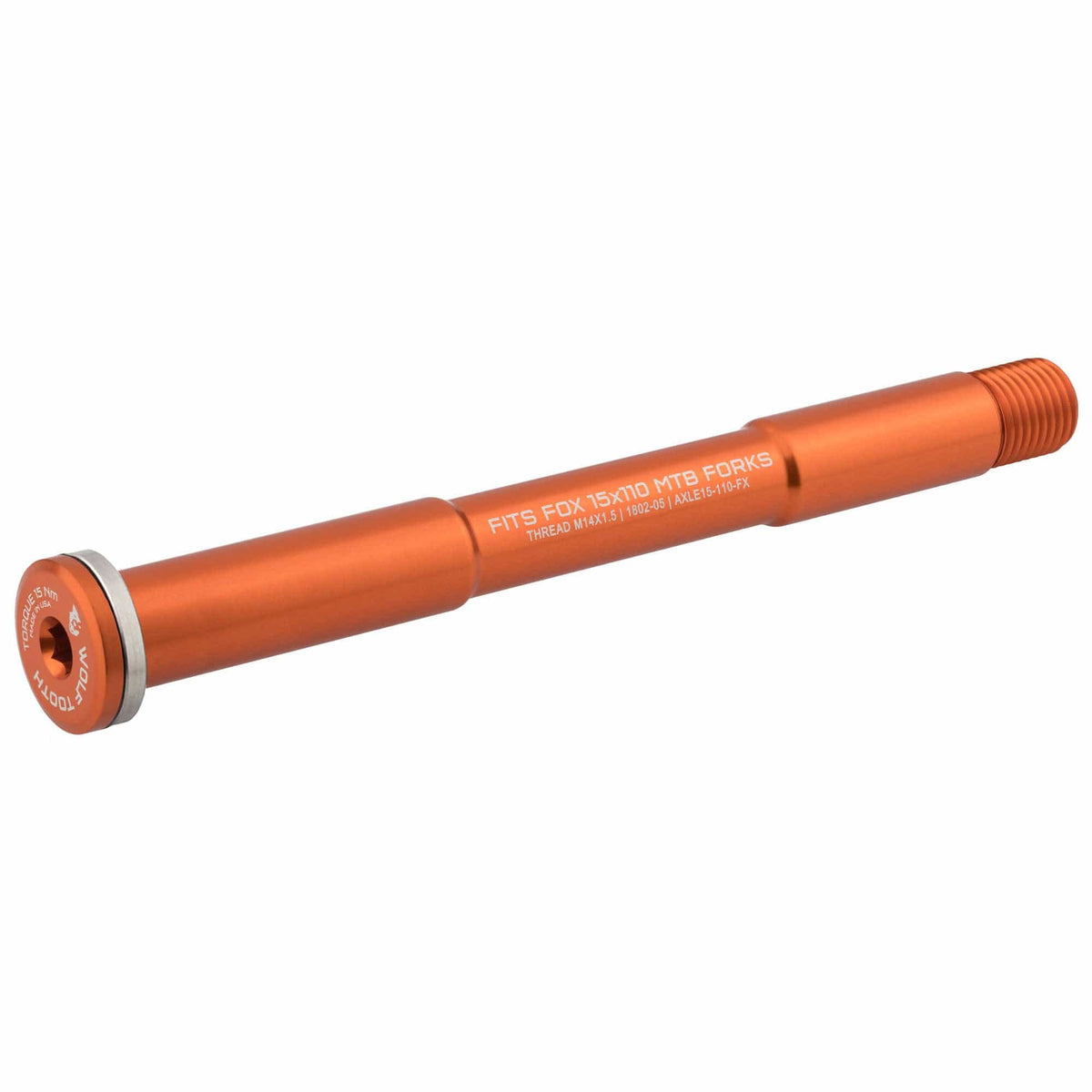

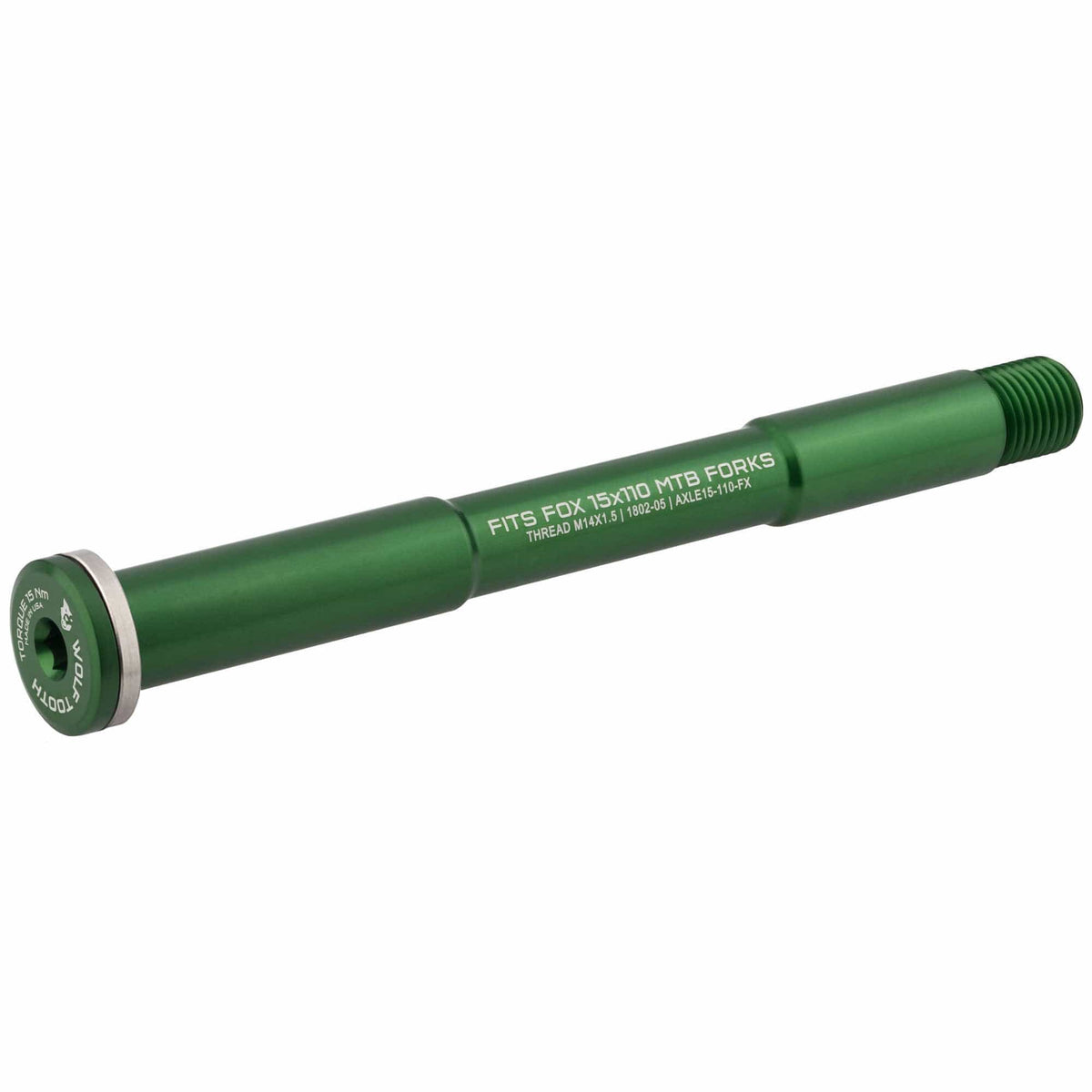

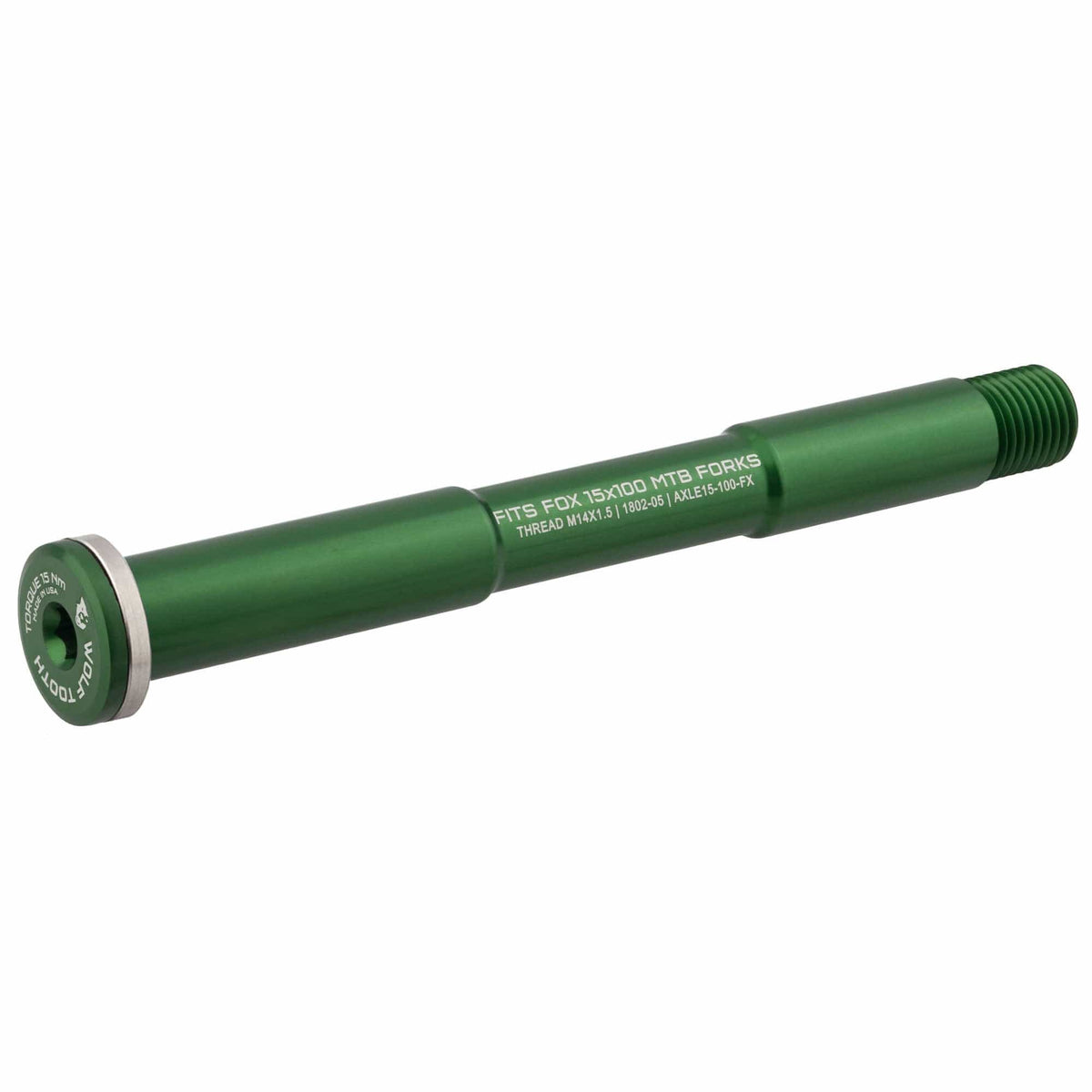

Wolf Tooth Front Axle for Fox Suspension Forks
Pickup available at CyclErie Bikes & Service - Erie, CO
Usually ready in 2-4 days

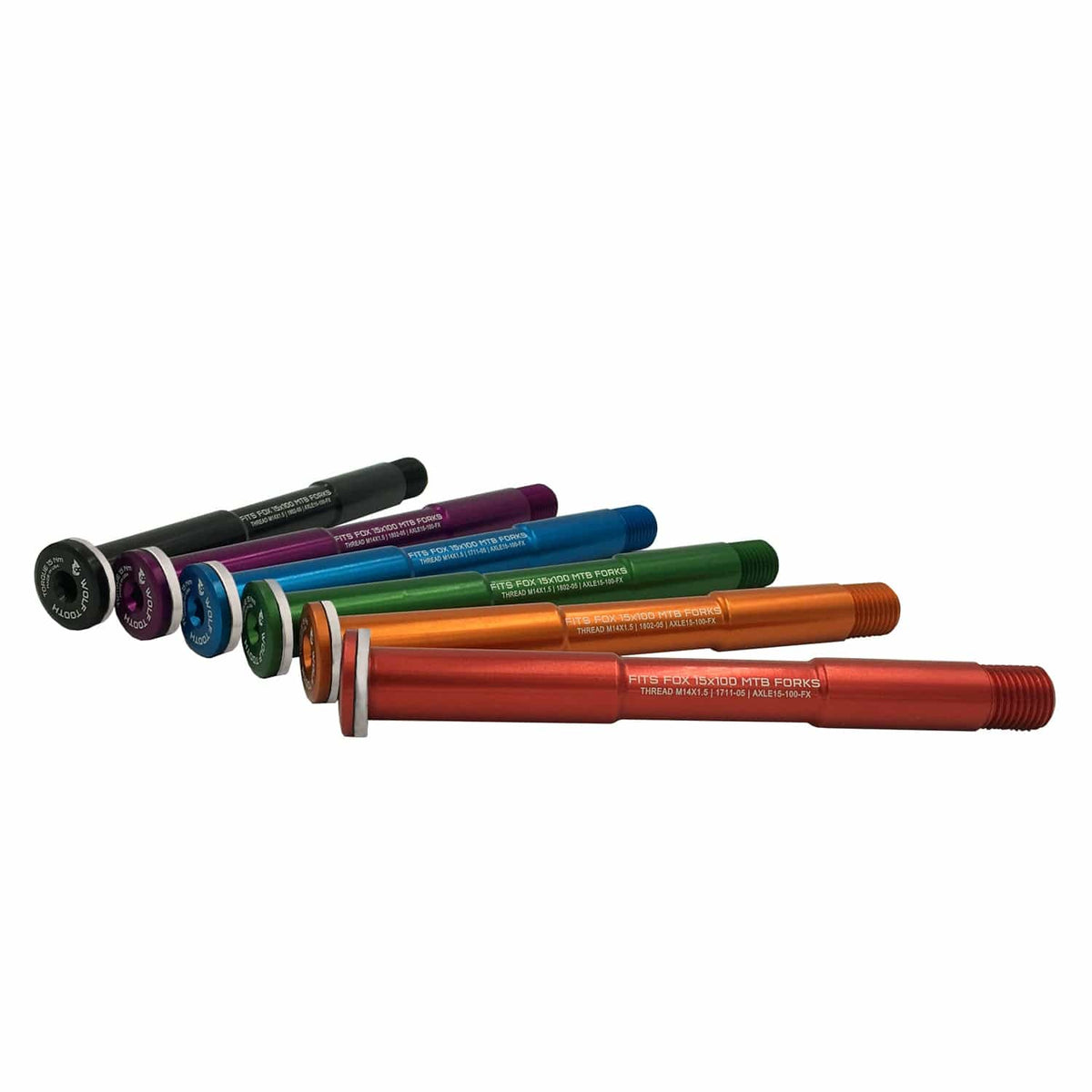

Wolf Tooth Front Axles are lightweight, easy to use, and friendly with your fork. They are available in a variety of colors and lengths for Standard and Boost forks. They use a captive steel washer under the head that protects your fork, transfers more of the tightening torque to the clamping load for a stiffer interface, and prevents the axle from sticking or galling when you want to remove it. The new updated Wolf Tooth Front Axles now have an o-ring that makes them compatible with the Wolf Tooth Axle Handle Multi-Tool.
Compatibility
- Fox suspension forks
- 100 mm (standard) or 110 mm (Boost) with the below exceptions
- Not compatible with 2021 & newer Fox F36 and F38 forks
- Similar to Fox Kabolt axle but with more color choices
- Click here to see axle dimensions
[ A4 Metric Guide ]
Related Products
Tech Specs
Weight: 100 mm / standard • 49g | 110 mm / Boost • 53g
Material: 7075 T6 aluminum with plated steel washer
Diameter: 15 mm
Tool interface: 6 mm hex key
Torque spec: 12-15 Nm
Thread spec: 14x1.5
Thread length: 15mm
Made in the USA
