Giant Talon 29 4 Mountain Bike
Pickup available at CyclErie Bikes & Service - Erie, CO
Usually ready in 2-4 days

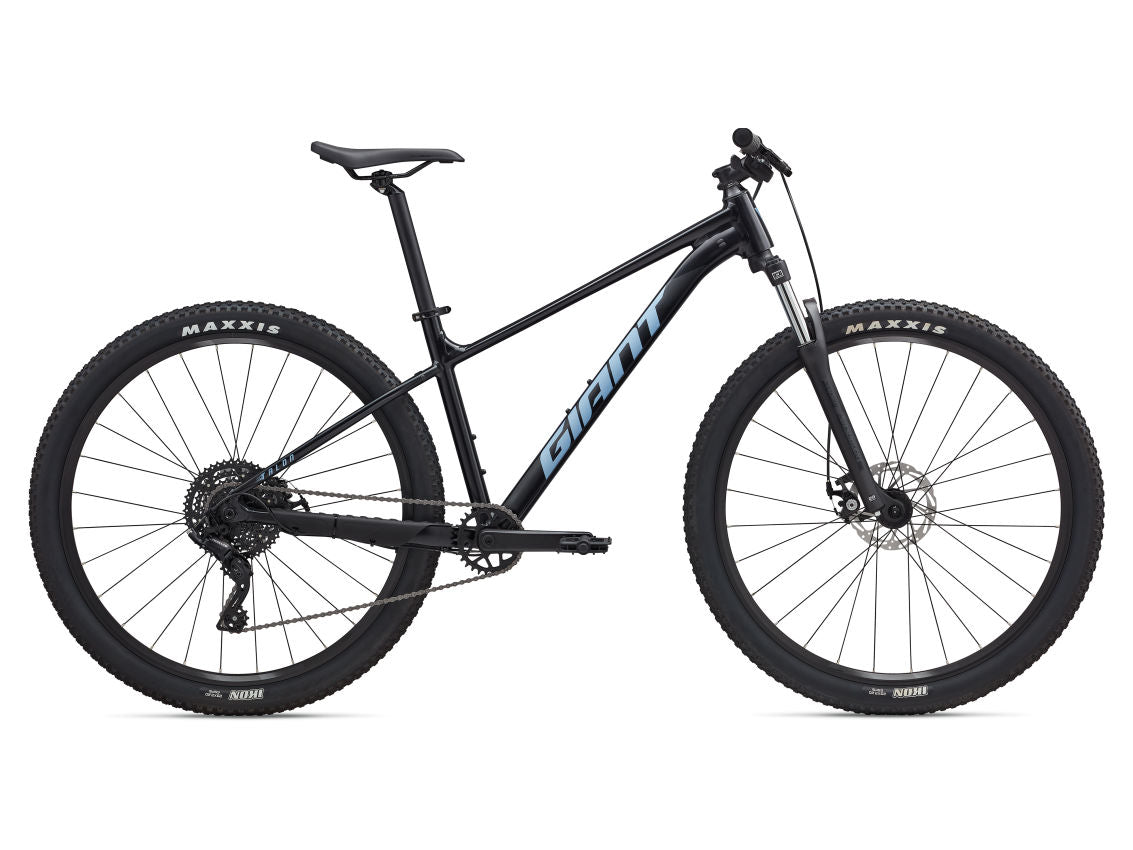

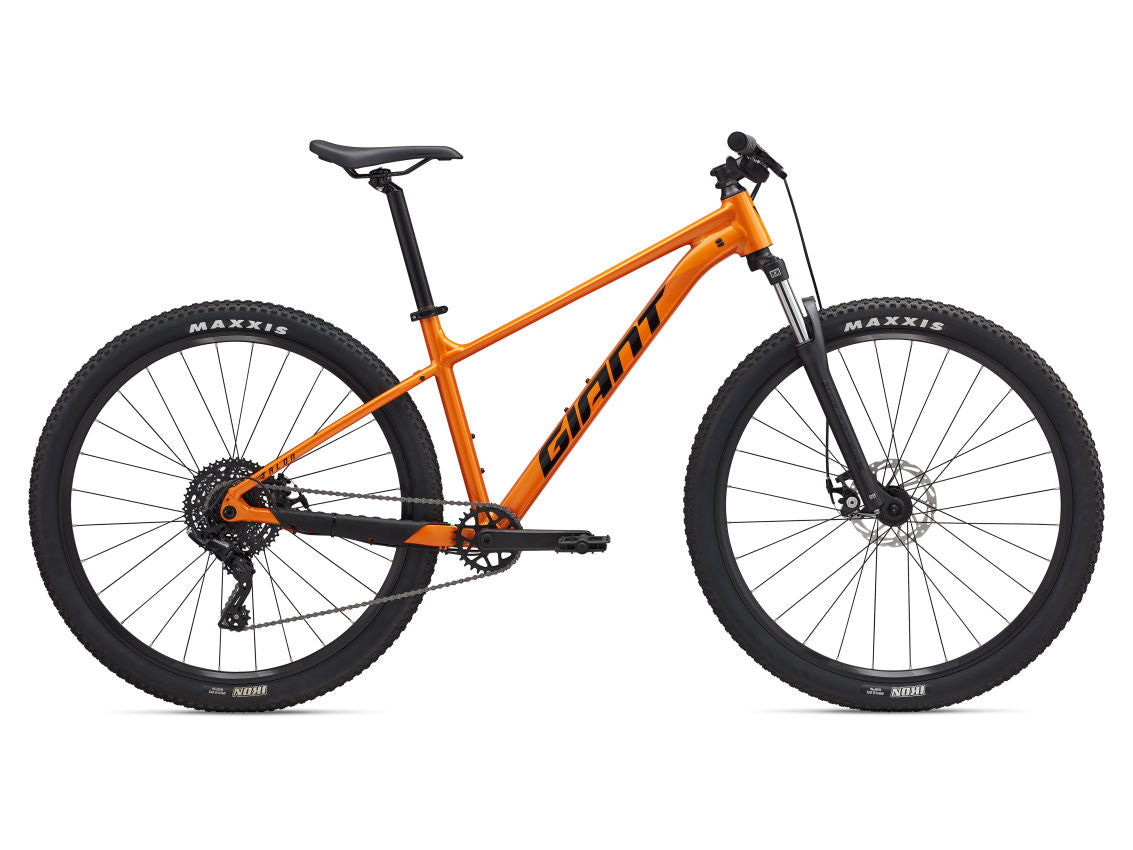

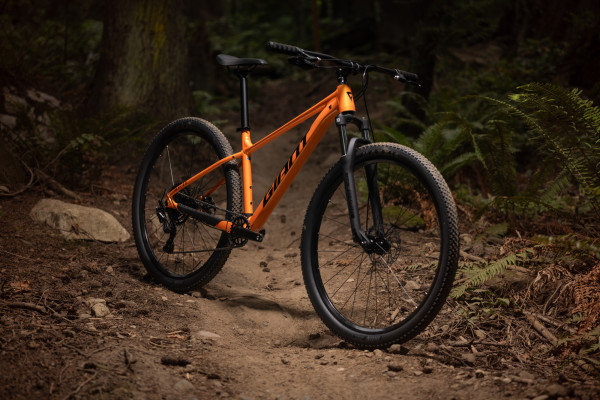

Giant Talon 29 4 Mountain Bike
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Key Performance Factors
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control

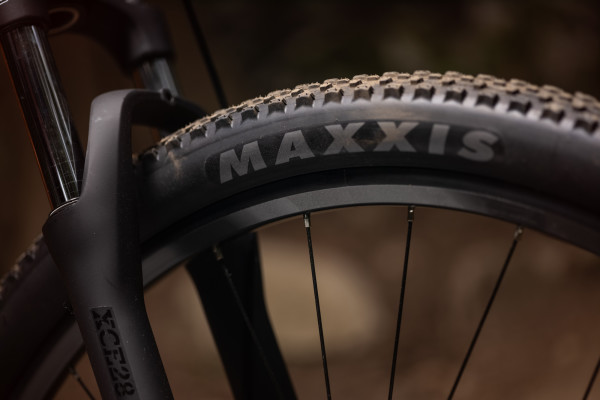

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Highlights
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.
ALUXX ALUMINUM
Formed from raw material in Giant’s own forging facility, this proprietary alloy is 30 percent stiffer than traditional 6061-series aluminum, while reducing overall weight.
INTERNAL CABLE ROUTING
Derailleur, brake and dropper post cables are routed internally through integrated ports. This helps saves weight and creates a cleaner look and performance.
DROPPER POST COMPATIBLE*
30.9mm seat tube diameter and clean internal cable routing allow for easy dropper seatpost upgrade.
ALIGNED SEATSTAY JUNCTION
The rear triangle is designed with seatstays that join the seat tube at the same point as the top tube, forming a unified connection. This clever alignment helps improve rear end stiffness while reducing overall frame weight, leading to a more efficient, lighter ride.
1X AND 2X COMPATIBLE
Frame is designed to work with either a single chainring or double chainring crankset. For 2x setups, either a side-swing or down-swing front derailleur can be used.
INTEGRATED MOUNTS
Mounts on the seatstays and chainstays make it easy to accessorize with racks, fenders or a KSA 18 kickstand.

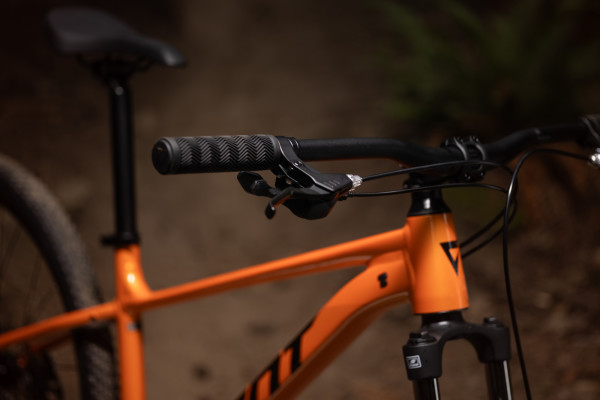

TAPERED HEAD TUBE
The 1.5-inch tapered head tube provides ride stability, especially over rough terrain and tight trail conditions.
THRU-AXLE WITH UDH HANGER
Lock in that rock-solid feel with the durable 12x142mm thru-axle, paired with a UDH (Universal Derailleur Hanger) for smooth shifting and added durability.

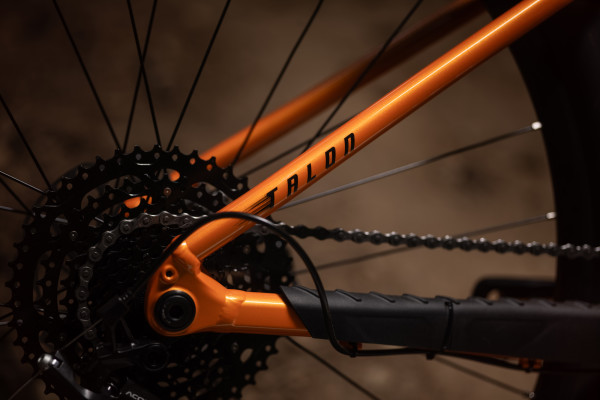

CHAINSTAY PROTECTION
An all-new chainstay protector features an integrated design with fixed cable routing, absorbing chain slap to reduce noise and protect your bike’s frame and finish from damage when encountering rough terrai
Techs & Features
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- XS (27.5")
-
5’1”
5’5”
-
- S (29")
-
5’4” 5’8”
-
- M (29")
-
5’7” 5’10”
-
- L (29")
-
5’9” 6’1”
-
- XL (29")
-
6’0” 6’4”
| XS (27.5") | S (29") | M (29") | L (29") | XL (29") | |
|---|---|---|---|---|---|
| A Seat Tube Length (inch) | 13.6 | 15 | 16.5 | 17.7 | 18.9 |
| A1 Seat Post Insertion Depth (inch) | 12 | 13.4 | 7.9 | 9.3 | 11.5 |
| B Seat Tube Angle | 74.0° | 74.5° | 74.5° | 74.5° | 74.5° |
| C Top Tube Length (inch) | 21.3 | 22.9 | 23.8 | 24.8 | 25.7 |
| D Head Tube Length (inch) | 3.5 | 3.7 | 4.1 | 4.9 | 5.5 |
| E Head Tube Angle | 67.0° | 67.5° | 67.5° | 67.5° | 67.5° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| G Trail (inch) | 4.1 | 4.3 | 4.3 | 4.3 | 4.3 |
| H Wheelbase (inch) | 42.7 | 44.8 | 45.8 | 46.9 | 47.9 |
| I Chain Stay Length (inch) | 17.3 | 17.9 | 17.9 | 17.9 | 17.9 |
| J Bottom Bracket Drop (inch) | 1.8 | 2.2 | 2.2 | 2.2 | 2.2 |
| K Stack (inch) | 21.6 | 23.5 | 23.9 | 24.6 | 25.2 |
| L Reach (inch) | 15.2 | 16.3 | 17.2 | 18 | 18.7 |
| M Stand Over Height (inch) | 26.9 | 28.1 | 27.9 | 27.9 | 28 |
| N Handlebar Width (inch) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Stem Length (inch) | 1.6 | 2 | 2.4 | 2.8 | 3.1 |
| P Crank Length (inch) | 6.7 | 6.7 | 6.7 | 6.7 | 6.9 |
| Q Wheel Size | 27.5" | 29" | 29" | 29" | 29" |
