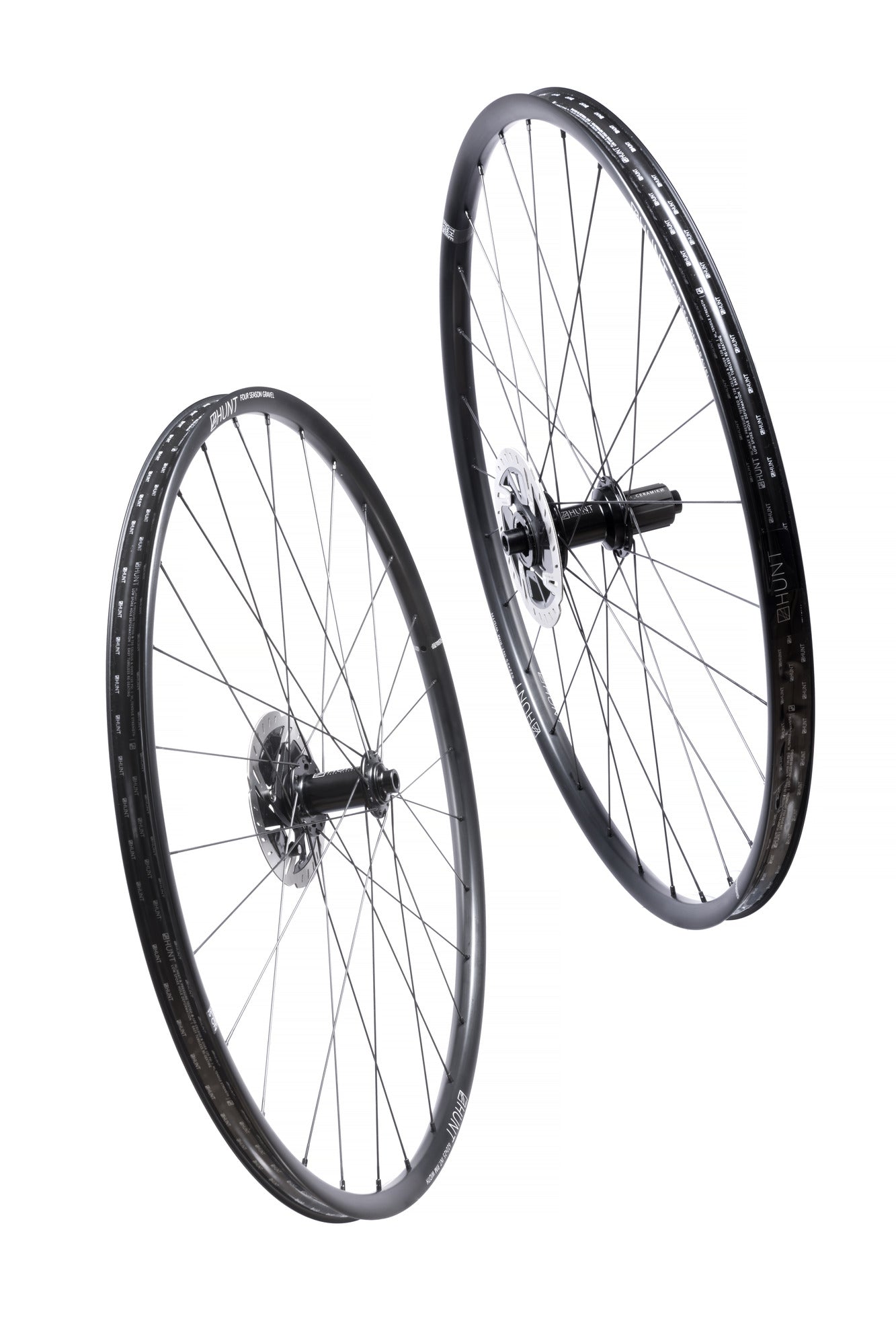

Ready for the path less travelled, rain or shine. For properly burly off-road hammering.
19 DEEP | 29 WIDE EXT | 25 WIDE INT | 1698G
The Purpose
The demands of gravel riding have taken on a whole new dimension, with riders seeking trails and routes you'd formerly only consider a mountain bike for. Enter the 4 Season Gravel, the wheelset designed to shine where the boundaries are blurred. We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road capability. So you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence.
Key Features
THE WHEEL READY TO TAKE ON ANYTHING
- Rims | 700c Super-wide (29mm external, 25mm internal) 6066-T6 (+34% tensile strength vs 6061-T6) Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x25.
- Tires | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 10 degree FastEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability. Centre-lock disc mount. Please note: If you require a 6-bolt adapter you can purchase separately here.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. Click here to see all axle sizes.
- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size)
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
-
Weight | 1698g
See the full specs here
Full Specs

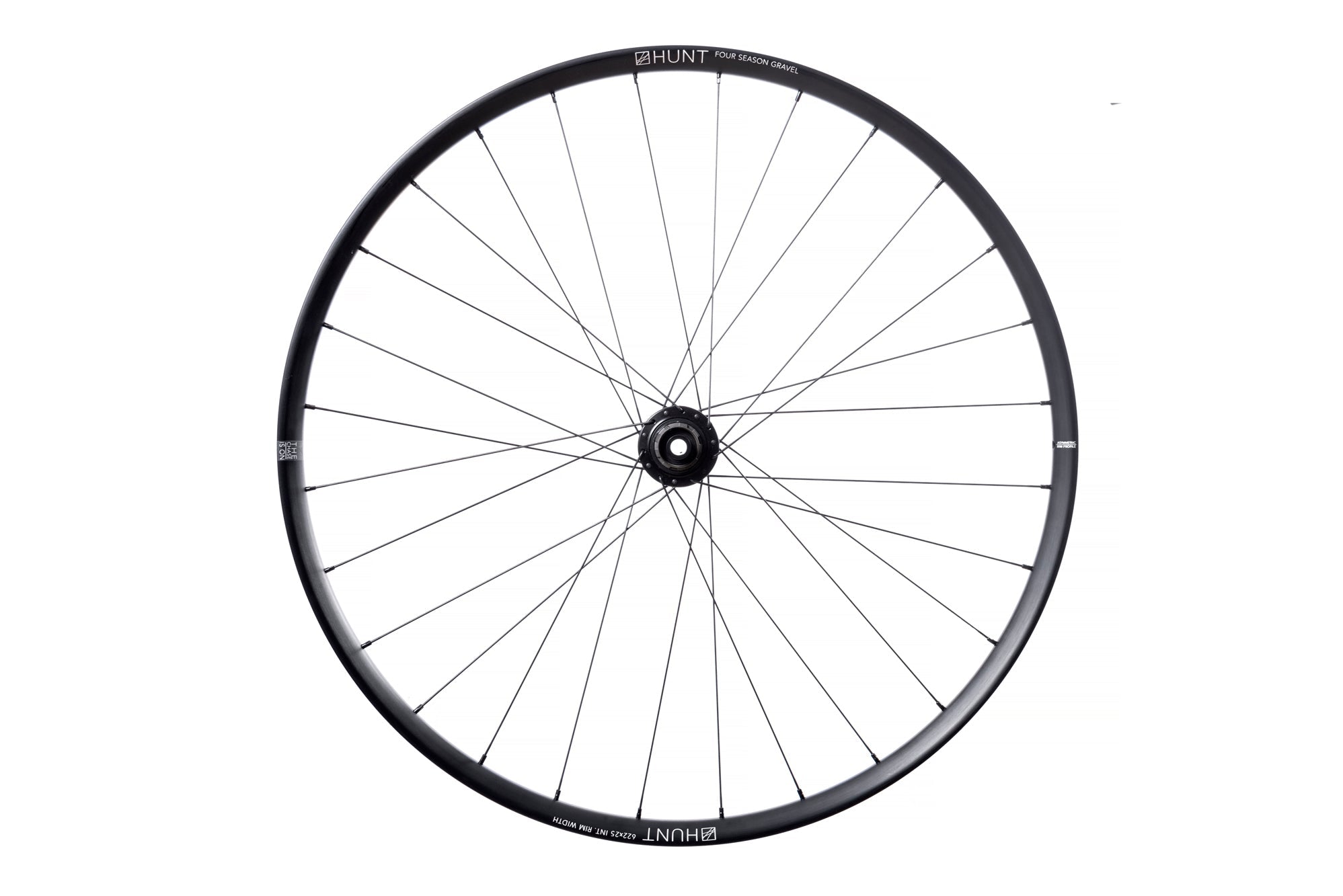

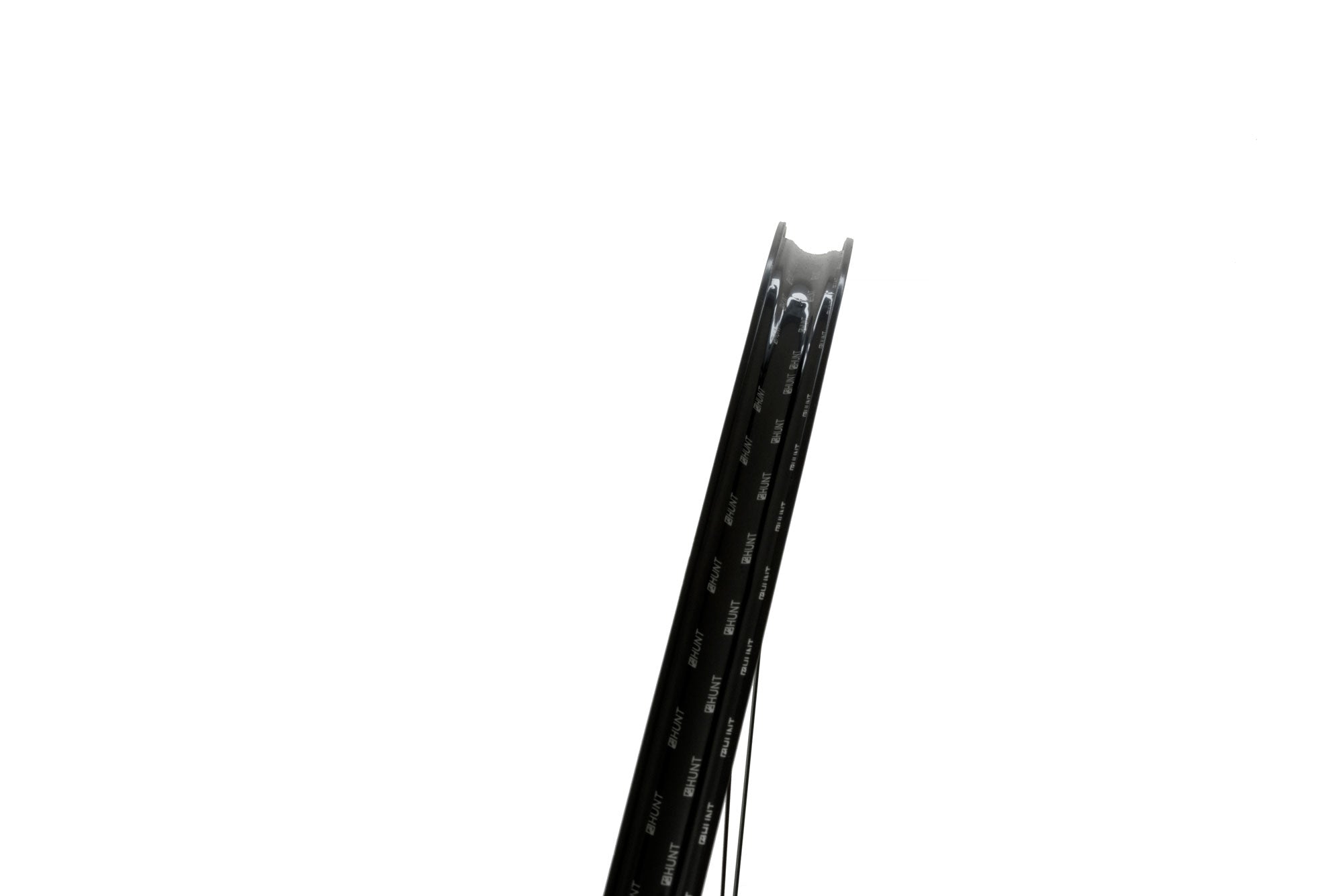

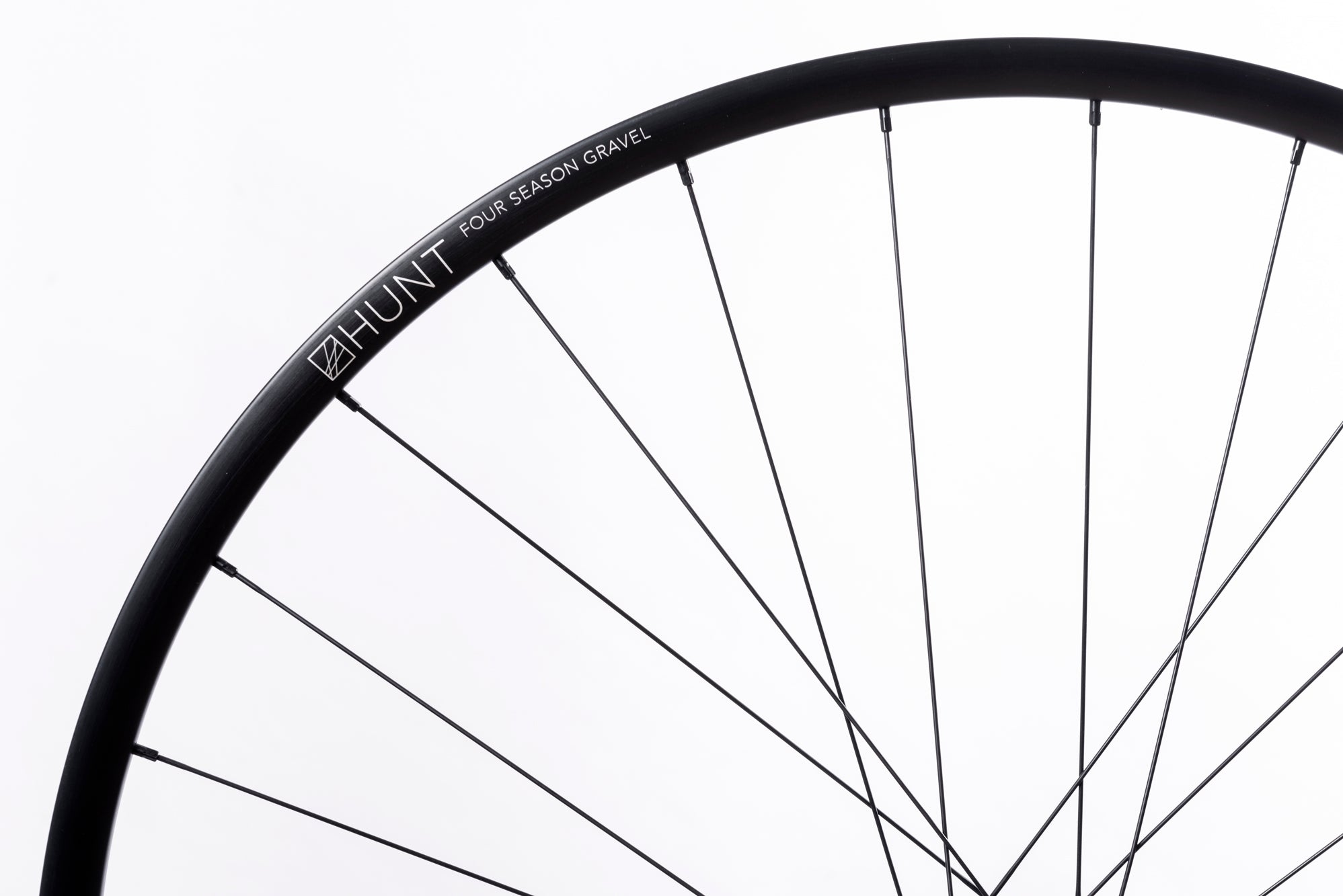

Rims
- Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless-rim tape and valves included.
- Hooked
- H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
- 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy
- Asymmetric, to balance spoke tensions.
- Disc-specific tubeless-ready profile.
- 29mm outer and 25mm inner width.
- 19mm depth
- Matt black anodized finish with laser etched graphics for low weight with excellent durability.
Spokes
- J-bend cold-drawn
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
- 28 spokes laced 2-cross front and rear.
- Black stainless treatment.
Nipples
- Brass for anti-corrosion resistance.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning.
- 12mm length.
- 14 gauge.
- Black anodized finish.
Tires Info
- HUNT recommends a 38-42mm tire for best performance, tire widths between 29mm and 64mm are also safe to use.
- You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
- Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post here about this.
- Tubeless-ready for lower weight and rolling resistance.
Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:
- Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
- Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

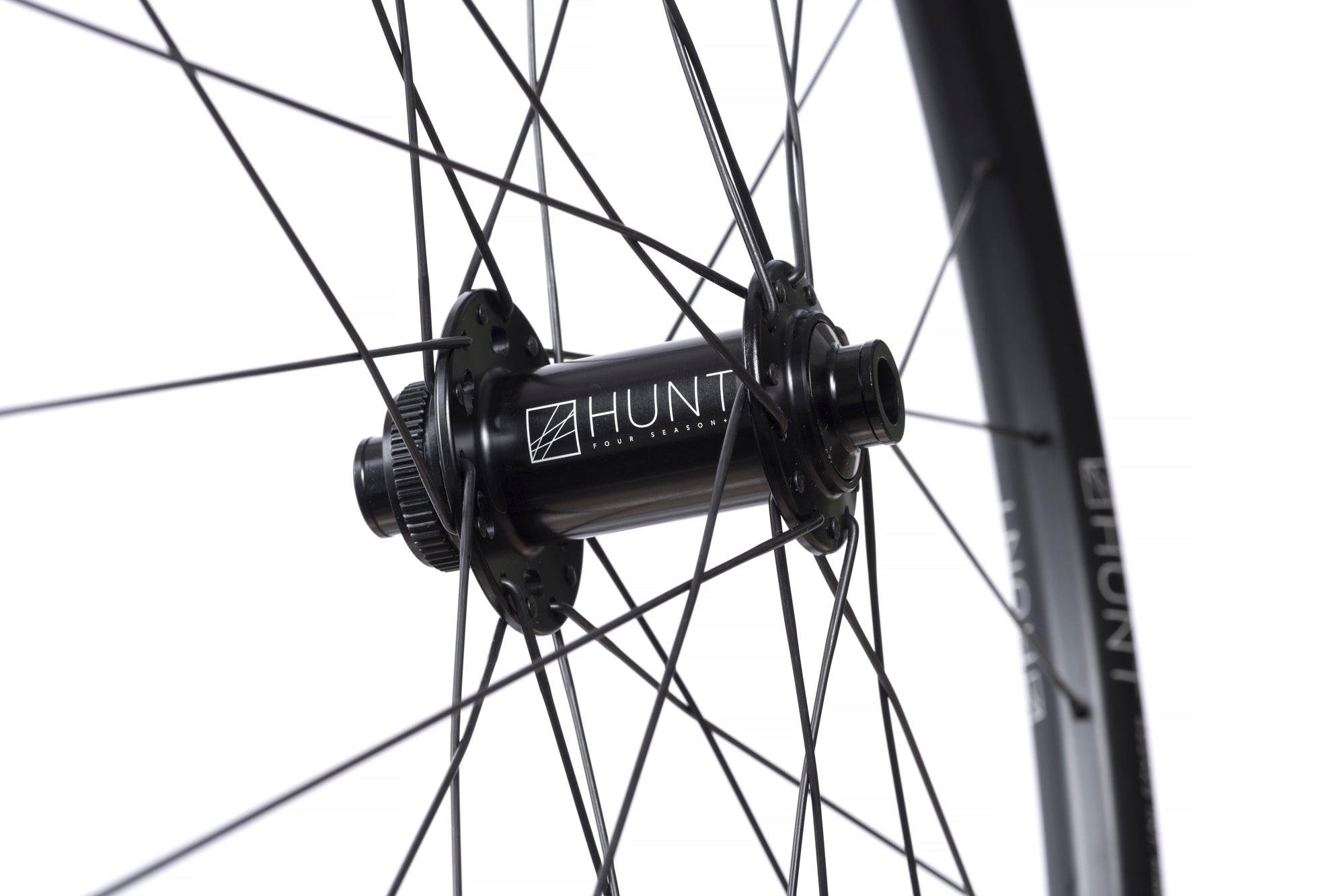

Front Hub
- HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.

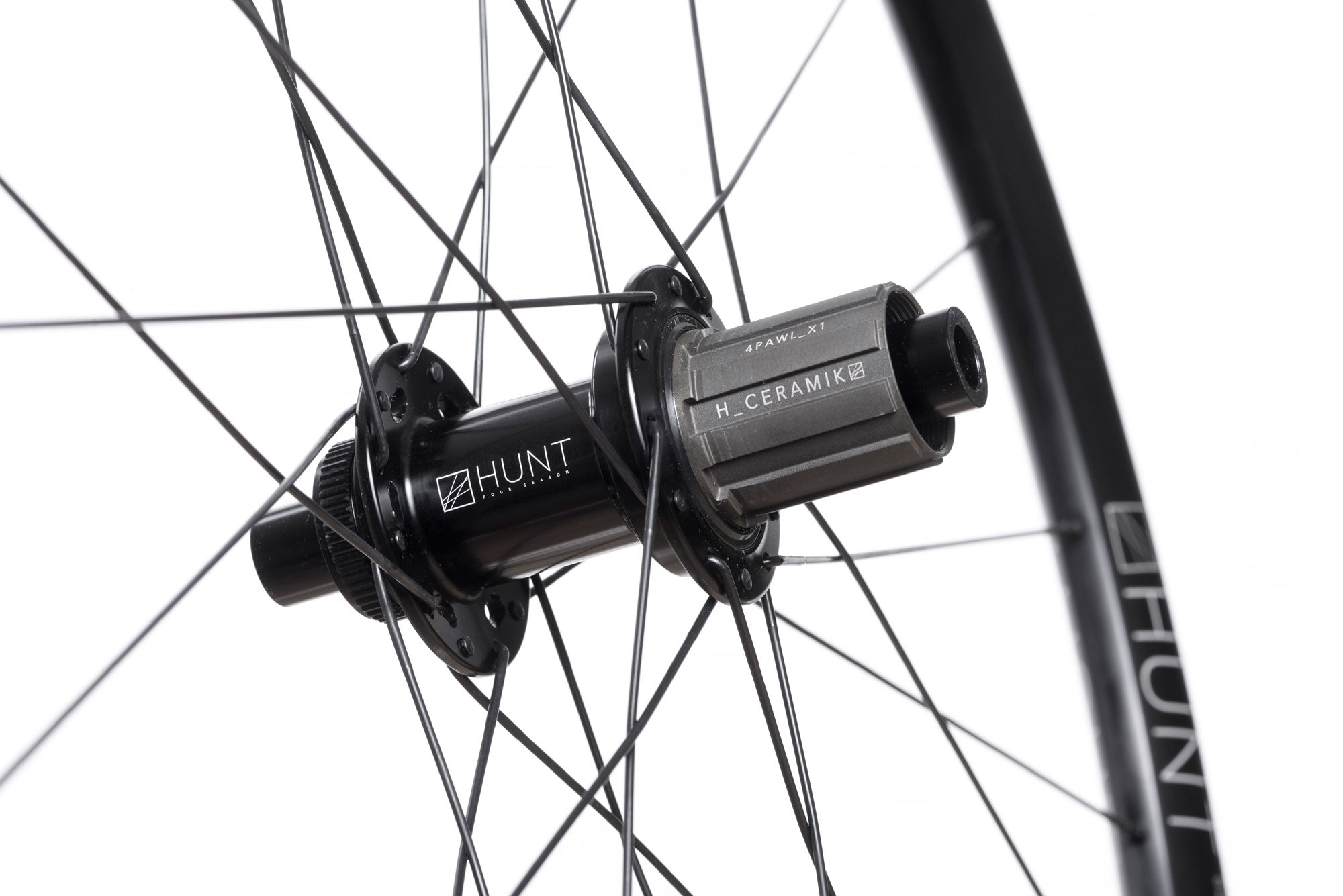

Rear Hub
- 7075-T6 heat-treated aluminium alloy freehub body.
- All freehub standards accounted for.
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 276lbs (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 242lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires minimum 29mm at max 80psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

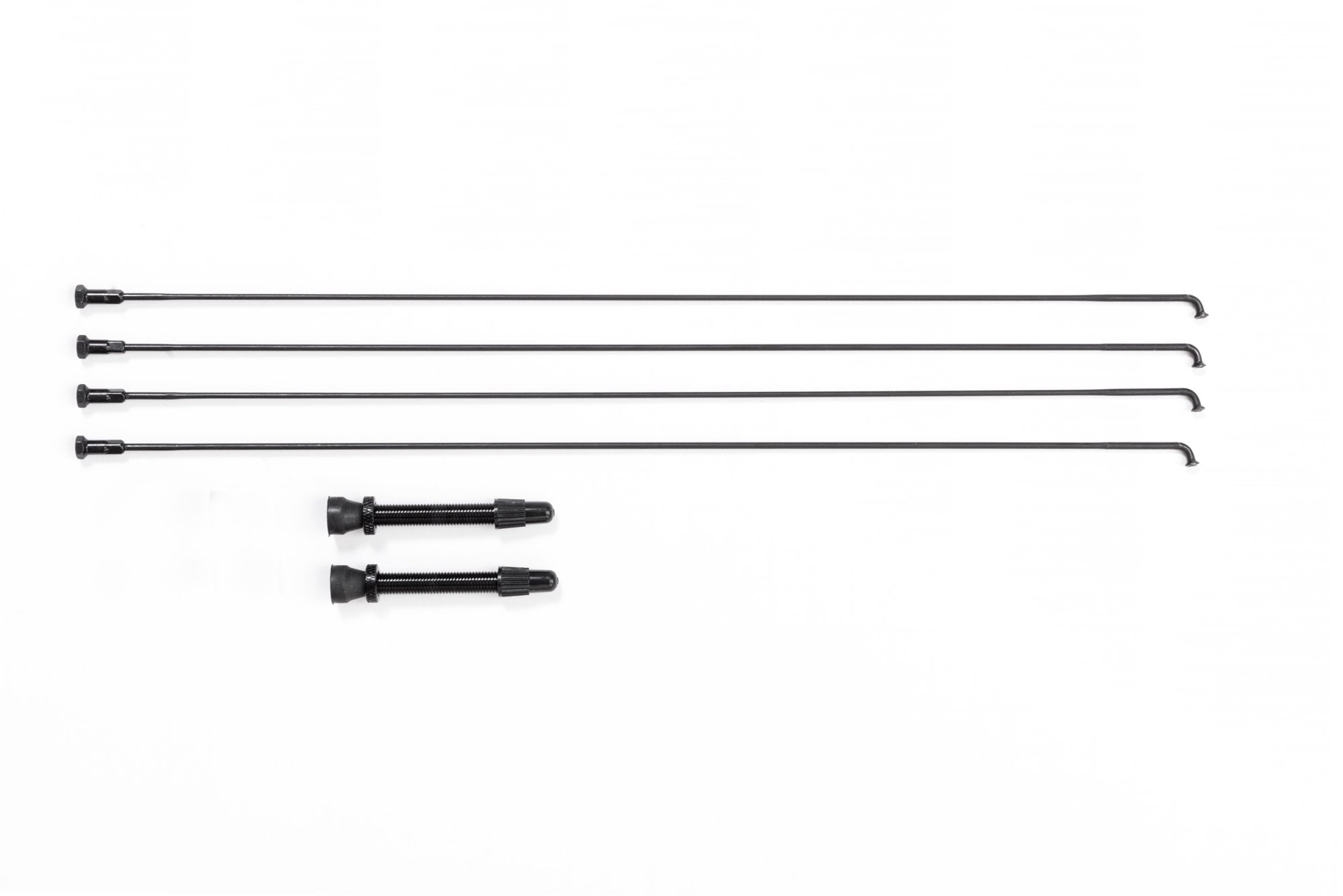

In the Box
Contents
- HUNT Black Shield tubeless tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
