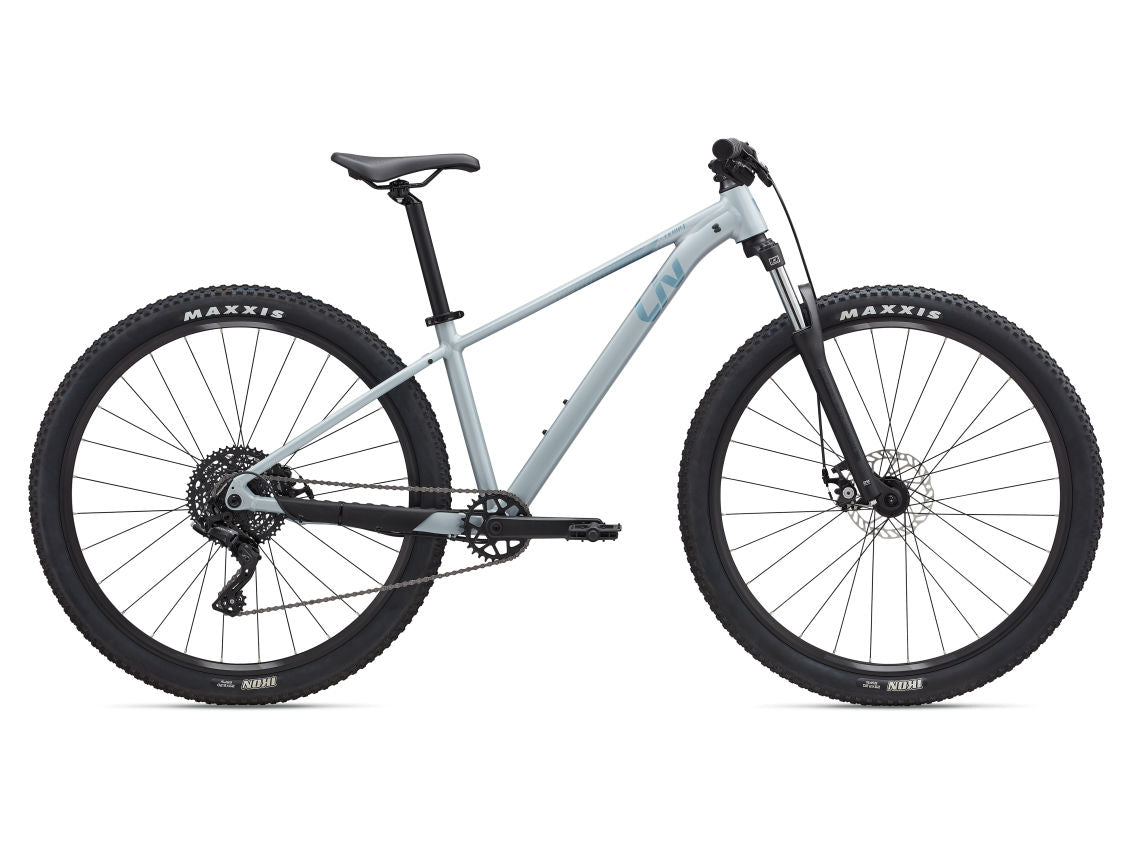

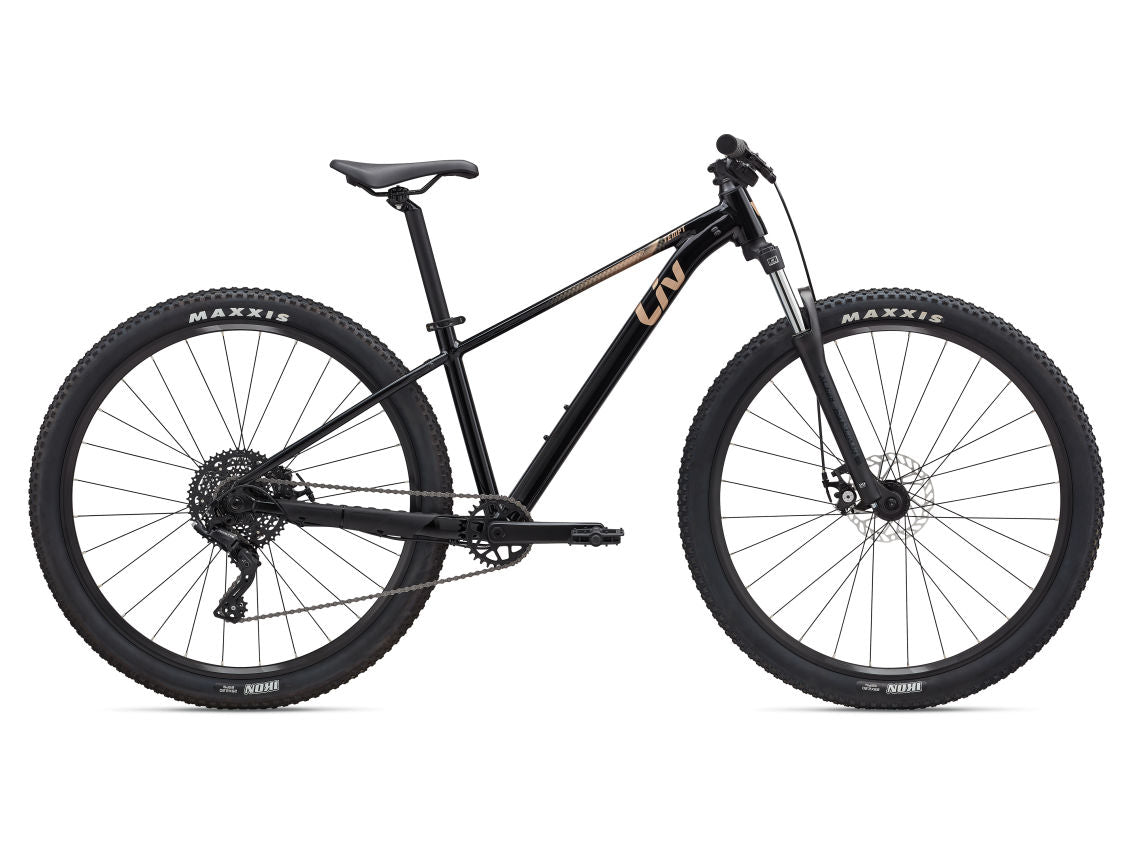

Liv Tempt 29 4 Mountain Bike
Pickup available at CyclErie Bikes & Service - Erie, CO
Usually ready in 2-4 days
The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Key Performance Factors
Modern MTB Design
Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable
The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Highlights
ALUXX ALUMINUM
Formed from raw materials in our own forging facility, this proprietary aluminum alloy is 30 percent stiffer than traditional 6061-series aluminum. This results in a more durable, lightweight frame designed for long-lasting performance.
TAPERED HEAD TUBE
The 1.5-inch tapered head tube makes your bike more stable and easier to control, especially on rocky descents and tight corners.
INTERNAL CABLE ROUTING
All essential cables—derailleur, brake, and dropper seatpost—are neatly routed inside the frame. This reduces weight, improves performance, and gives your bike a clean, streamlined look.
DROPPER SEATPOST COMPATIBLE
A dropper seatpost lets you lower your saddle on the fly, giving you extra control on steep or tricky terrain. Some Tempt models come with this feature, but if yours doesn’t, it’s easy to upgrade. The 30.9mm seat tube diameter and internal cable routing are designed to make adding a dropper seatpost simple.
ALIGNED SEATSTAY JUNCTION
The rear triangle is designed with seatstays that join the seat tube at the same point as the top tube, forming a unified connection. This clever alignment helps improve rear end stiffness while reducing overall frame weight, leading to a more efficient, lighter ride.
1X AND 2X COMPATIBLE
Whether you prefer a single chainring (1x) or a double chainring (2x) crankset, this frame is designed to accommodate both. For those opting for a 1x setup, you’ll benefit from a clutch-type derailleur that ensures your chain stays secure, providing smoother shifting on technical terrain. If you choose a
2x setup, you have the flexibility to use either a side-swing or down-swing front derailleur, allowing you to customize your drivetrain to your preference.
INTEGRATED MOUNTS
Your bike should fit your life, not the other way around. That’s why we’ve included mounts on the seatstays and chainstays, making it super easy to add racks, fenders, or a KSA 18 kickstand.
THRU-AXLE WITH UDH HANGER
Lock in that rock-solid feel with the 12x142mm thru-axle, paired with a UDH (Universal Derailleur Hanger) for smooth shifting and added durability.
CHAINSTAY PROTECTION
Our all-new chainstay protector features an integrated design with fixed cable routing, absorbing chain slap to reduce noise and protect your bike’s frame and finish from damage when encountering rough terrain.
Techs & Features
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- XS (27.5")
-
4’11”
5’4”
-
- S (29")
-
5’2” 5’7”
-
- M (29")
-
5’5” 5’9”
-
- L (29")
-
5’7” 5’11”
| XS (27.5") | S (29") | M (29") | L (29") | |
|---|---|---|---|---|
| A Seat Tube Length (inch) | 13 | 15 | 16.1 | 17.7 |
| A1 Seat Post Insertion Depth (inch) | 11 | 13 | 14.2 | 8.7 |
| B Seat Tube Angle | 74.0° | 74.5° | 74.5° | 74.0° |
| C Top Tube Length (inch) | 21.2 | 22.5 | 23.6 | 24 |
| D Head Tube Length (inch) | 3.5 | 3.5 | 3.9 | 4.1 |
| E Head Tube Angle | 67.0° | 67.5° | 67.5° | 68.5° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 2 |
| G Trail (inch) | 4.1 | 4.3 | 4.3 | 3.7 |
| H Wheelbase (inch) | 42.5 | 44.4 | 45.6 | 45.7 |
| I Chain Stay Length (inch) | 17.3 | 17.9 | 17.9 | 17.9 |
| J Bottom Bracket Drop (inch) | 1.8 | 2.2 | 2.2 | 2.2 |
| K Stack (inch) | 21.6 | 23.3 | 23.7 | 24 |
| L Reach (inch) | 15 | 16 | 17 | 17.1 |
| M Stand Over Height (inch) | 26.8 | 27.1 | 27.9 | 29.8 |
| N Handlebar Width (inch) | 27.2 | 29.5 | 29.5 | 29.5 |
| O Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P Crank Length (inch) | 6.5 | 6.7 | 6.7 | 6.9 |
| Q Wheel Size | 27.5" | 29" | 29" | 29" |
