Questions about the Specialized Diverge 4 Sport Alloy Shimano CUES (2026)? Ask away.

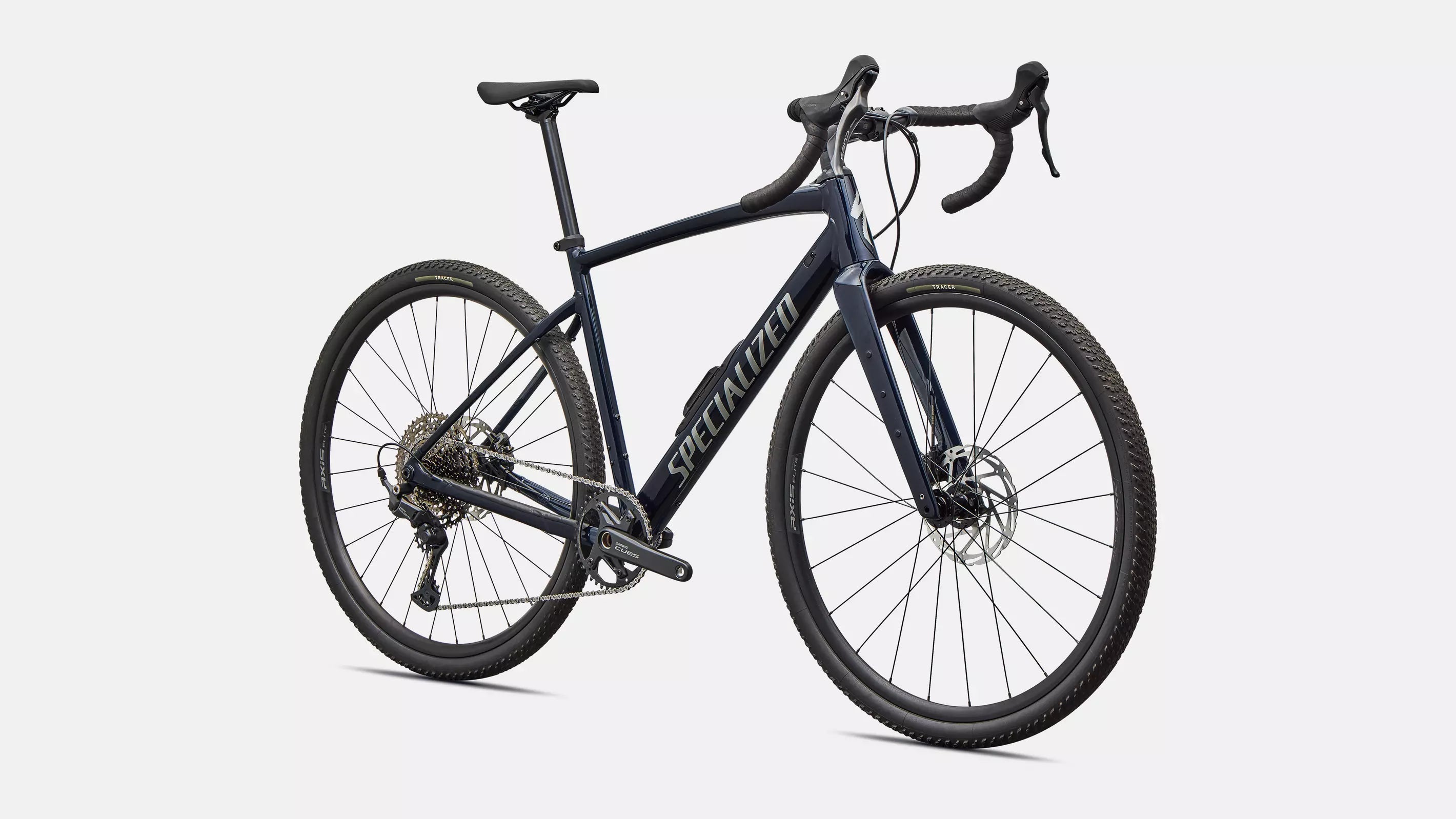

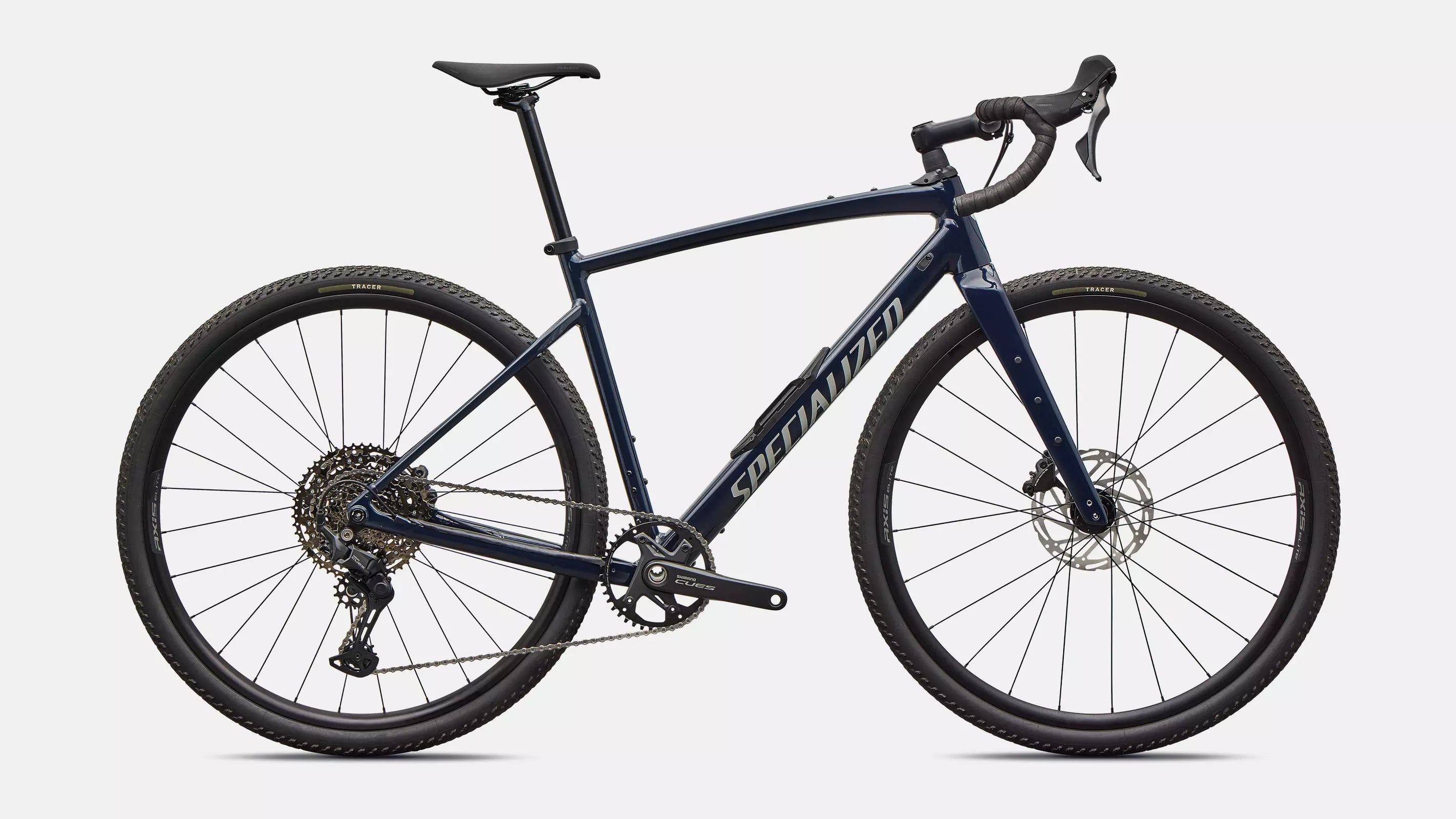

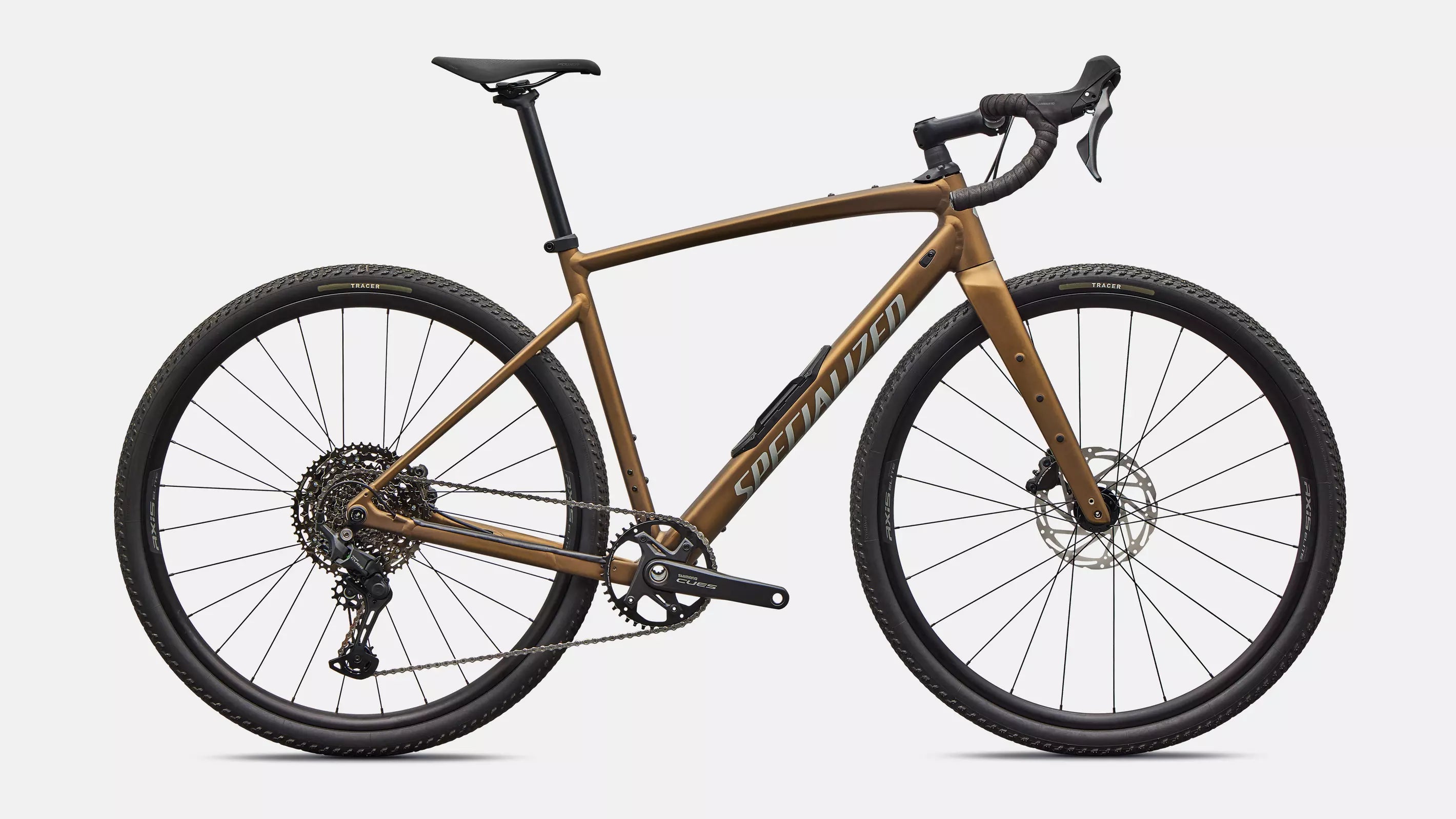

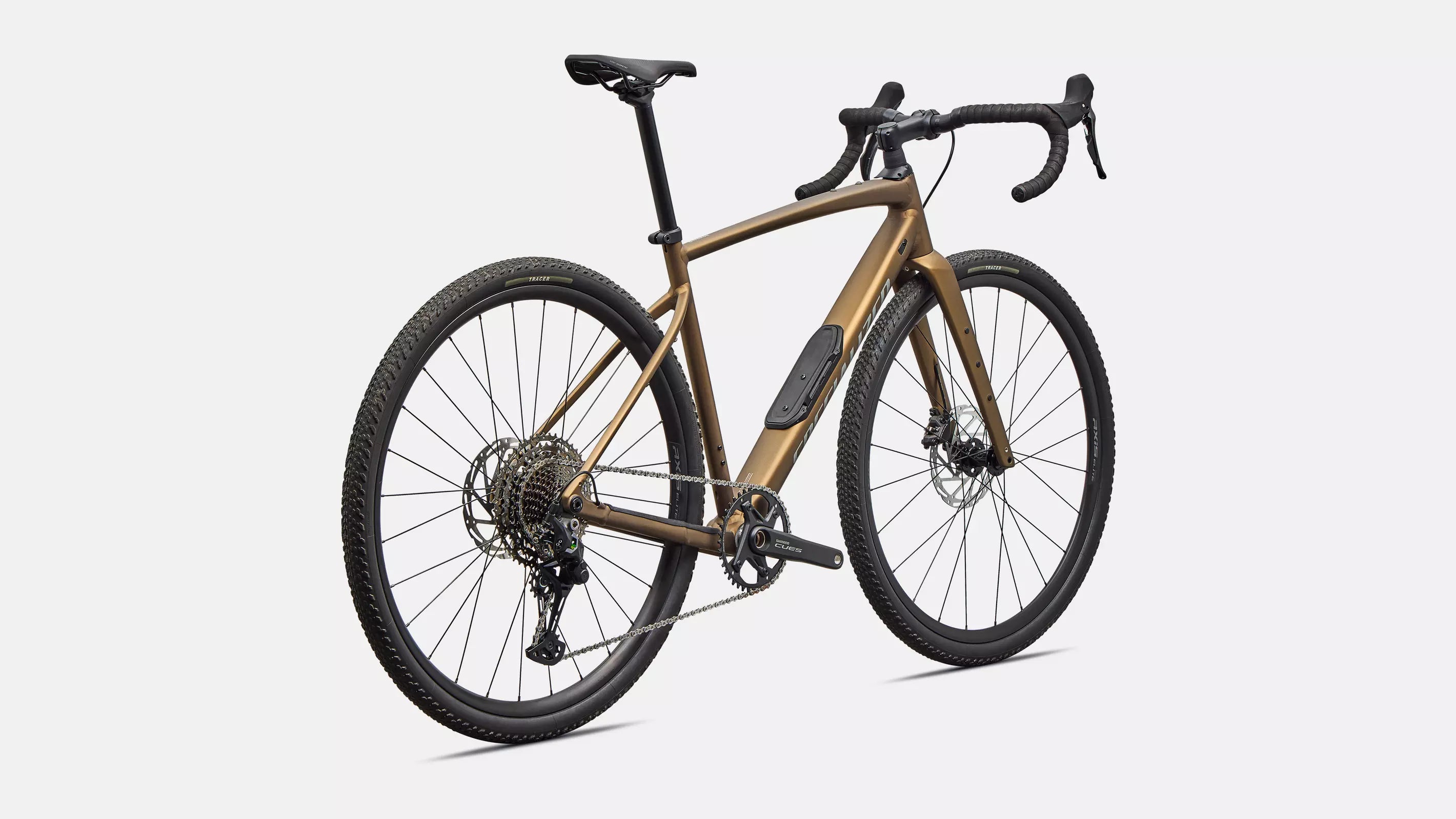

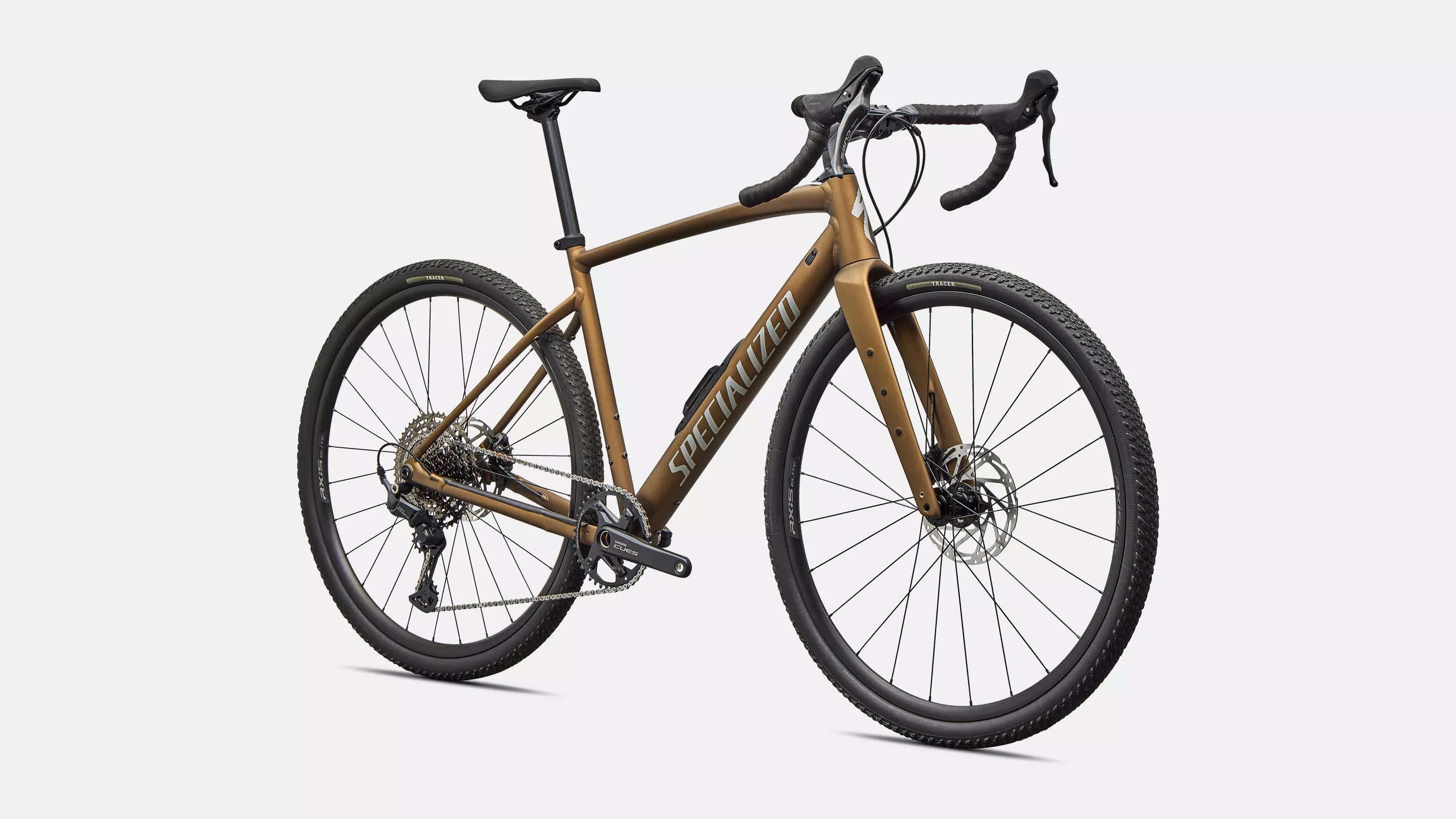

Specialized Diverge 4 Sport Alloy Shimano CUES (2026)
That's $41.98 toward future purchases!
Pickup available at CyclErie Bikes & Service - Erie, CO
Usually ready in 2-4 days
Diverge 4 Alloy
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
At a Glance
Use
Gravel Adventure/Race
Frameset
E5 Premium Alloy
Suspension
Future Shock 3.1
Drivetrain/Wheels
New Shimano CUES 1x11 / Axis
Storage
SWAT 3.0
Weight
Diverge Alloy Sport: 10.74kg
Technical Specifications
- Frame
- Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork
- Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
- Front Brake
- Shimano CUES Hydraulic Brake
- Rear Brake
- Shimano CUES Hydraulic Brake
- Chain
- Shimano CN-LG500
- Bottom Bracket
- Shimano Threaded BSA BB
- Shift Levers
- Shimano CUES ST-U6030
- Rear Derailleur
- Shimano CUES 11-speed w/ Shadow Plus
- Cassette
- Shimano, CS-LG400-11, CUES, 11-Speed, 11-50t
- Crankset
- Shimano CUES FC-U6040, 40t
- Front Wheel
- AXIS Elite Disc
- Rear Wheel
- AXIS Elite Disc
- Front Tire
- Tracer 700x45, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tubeless Ready
- Inner Tubes
- Presta, 700x32-50mm
- SeatPost
- Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
- Seat Binder
- Alloy, 30.8mm
- Saddle
- Body Geometry Power Sport, steel rails
- Stem
- Future Stem, Comp
- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Tape
- Supacaz Suave
- SWAT
- SWAT 3.0 internal downtube storage
- Product ID
- 223511
- Weight
- 10.74 kg (23 lb, 10.8 oz)
- Weight Size
- 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
