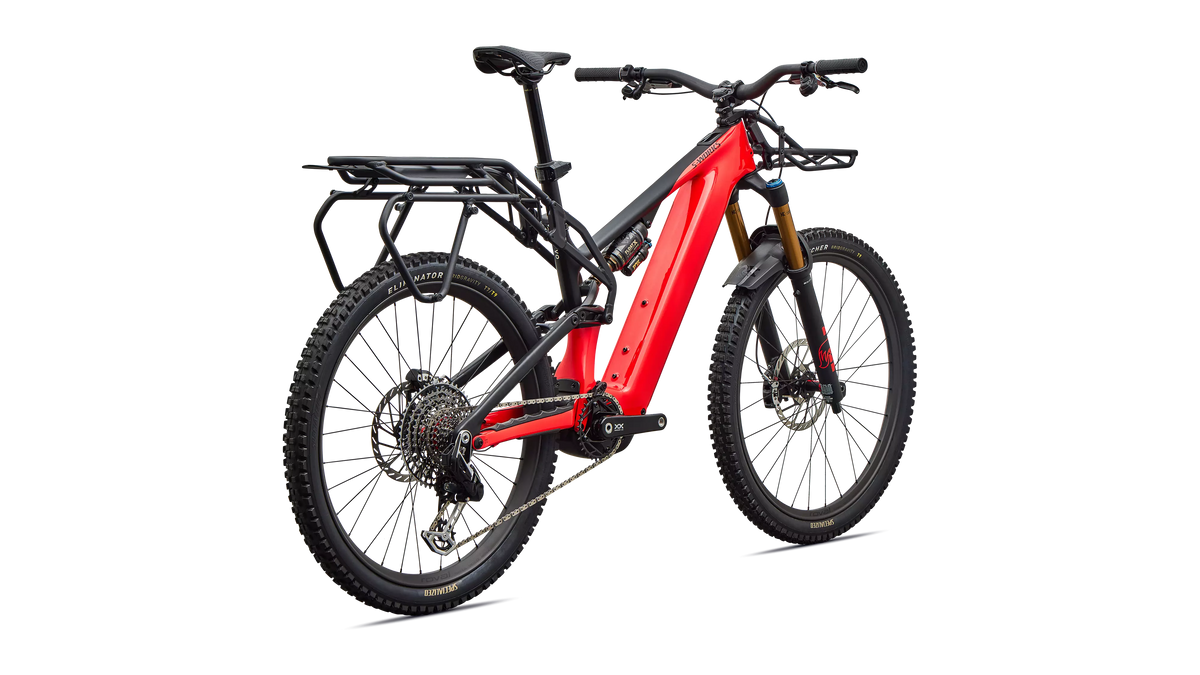

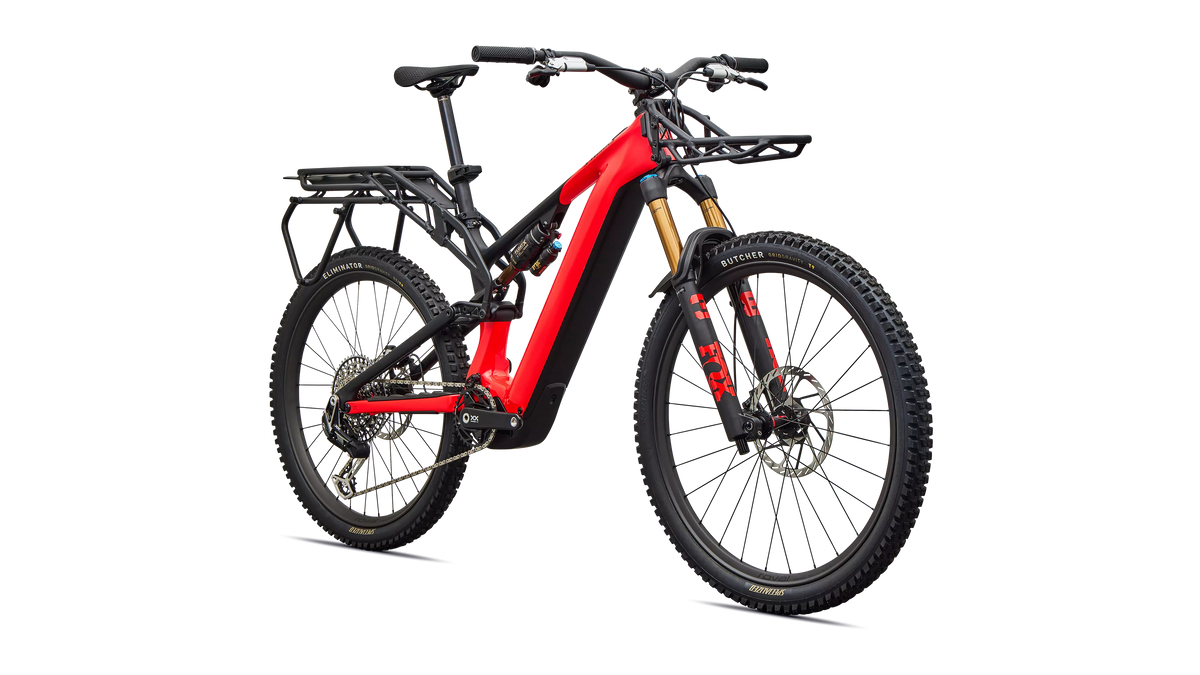

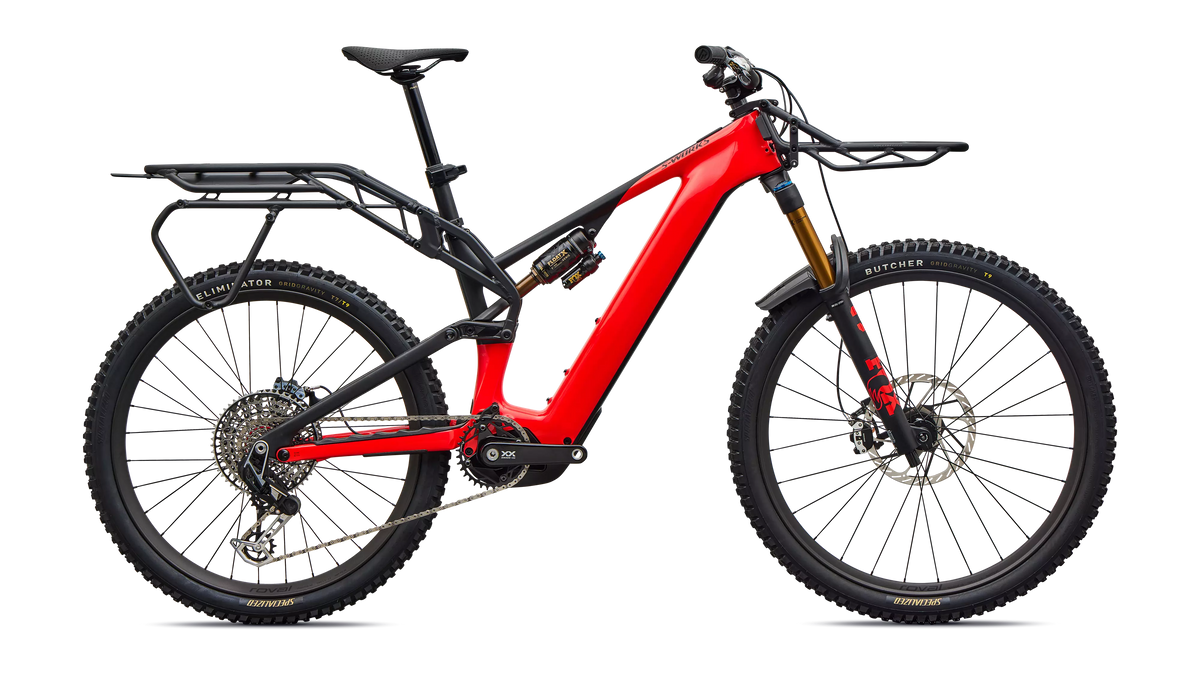

Specialized S-Works Turbo Levo 4 X (2027)

Specialized S-Works Turbo Levo 4 X (2027)

Levo 4 X is more than a new bike. It’s the birth of Electric Overland. Built on the award-winning SuperNatural power, control, and range of Levo 4, it adds high-performance carrying capacity so you can rip singletrack, cross town, cross continents, and turn every ride into an adventure. It’s your full-bore, ride-anywhere freedom machine.

Key Features

• Use: Electric Overland
• E-System: S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
• Frame: FACT 11m Carbon, Geo Adj & SWAT Storage
• Suspension: Front: 160mm FOX 38 FACTORY GRIP X2; Rear: 150mm GENIE | FOX FLOAT X Factory
• Drivetrain: SRAM XX Eagle T-Type AXS

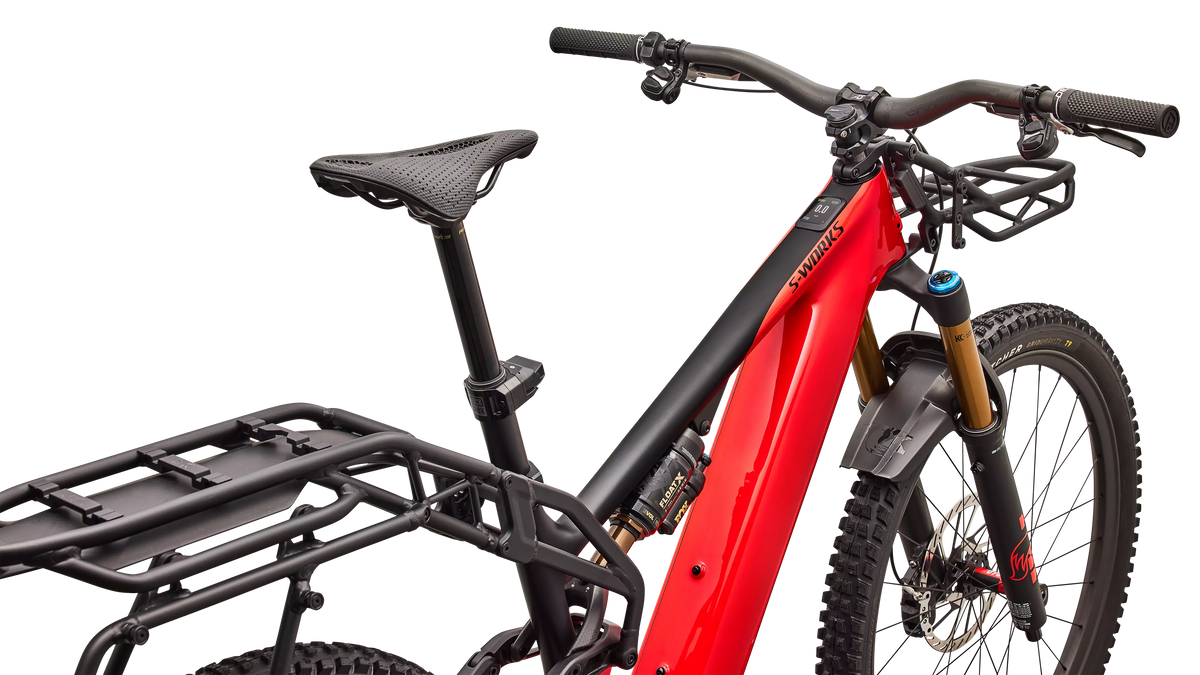

• Carrying Capacity: Front and Rear High-Performance Racks

Technical Specifications

E-Bike

• Battery: 840Wh battery

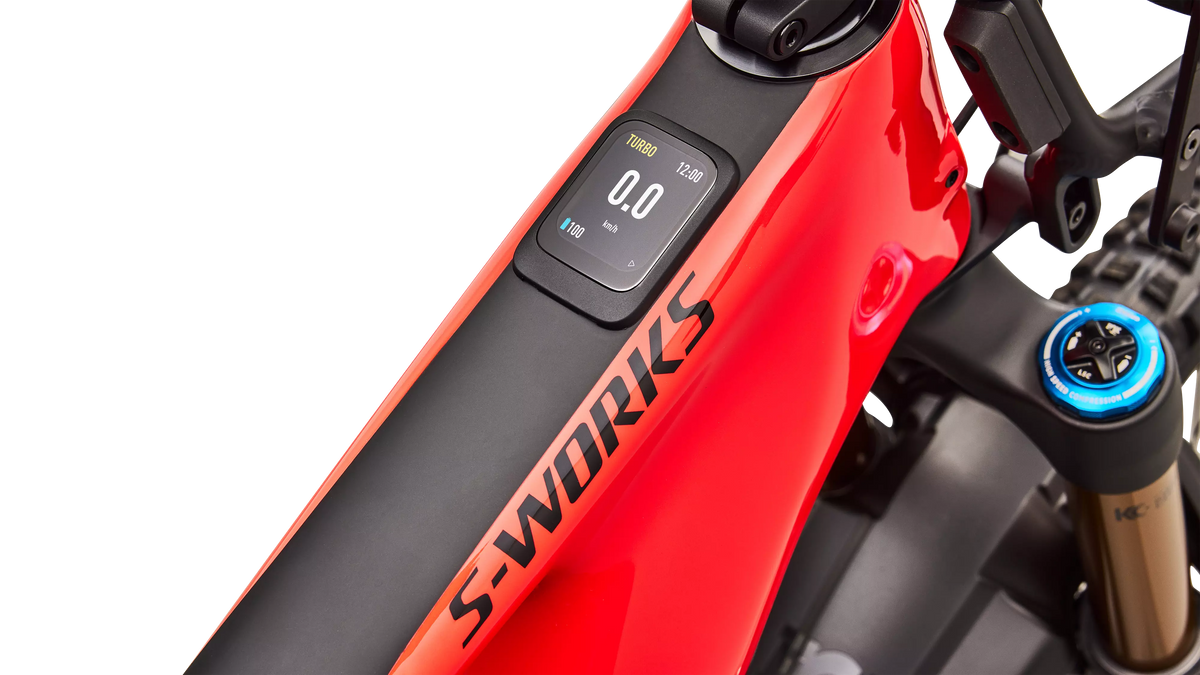

• UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
• Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

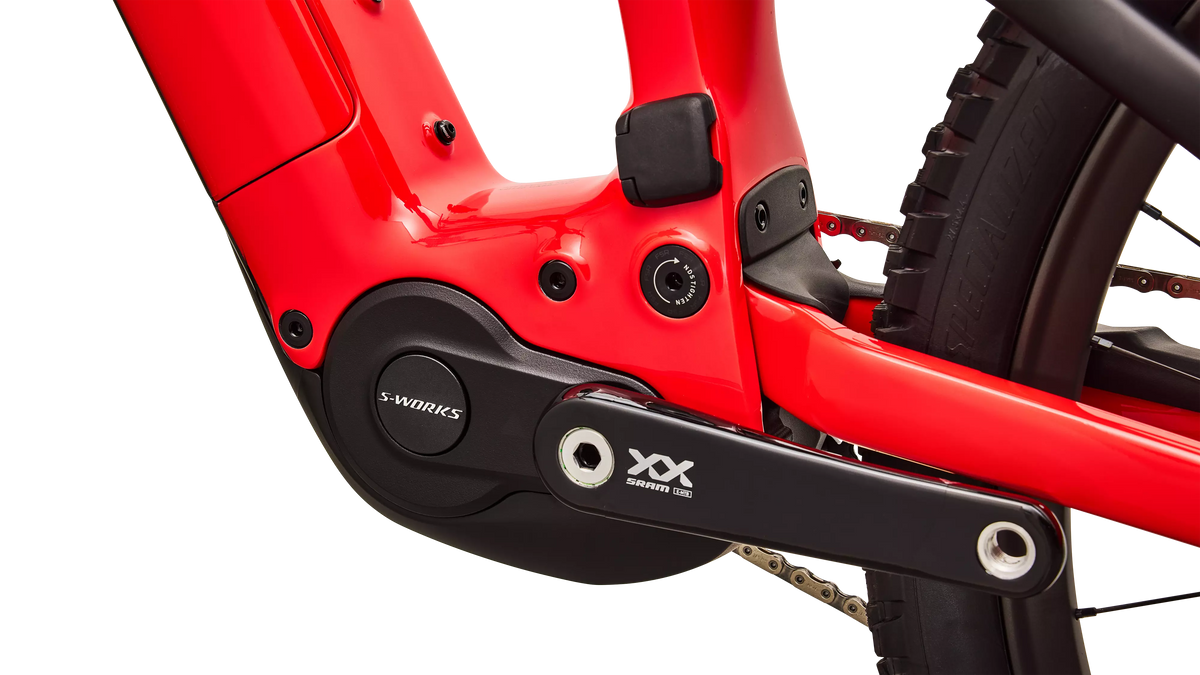

• Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power

Frameset

• Seat Binder: Alloy, 38.6mm
• Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Suspension

• Fork: FOX Factory 38, GRIP X2 damper, high/low speed compression adjust, high/low speed rebound adjust, 15x110mm axle, 44mm offset, 160mm travel

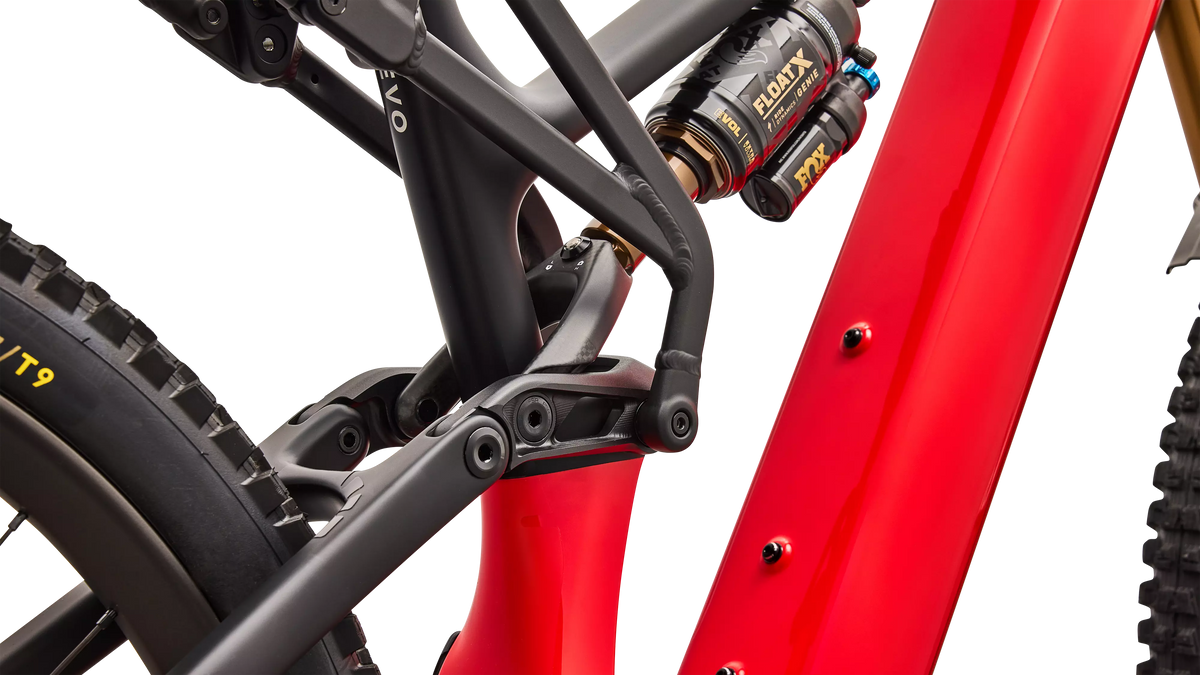

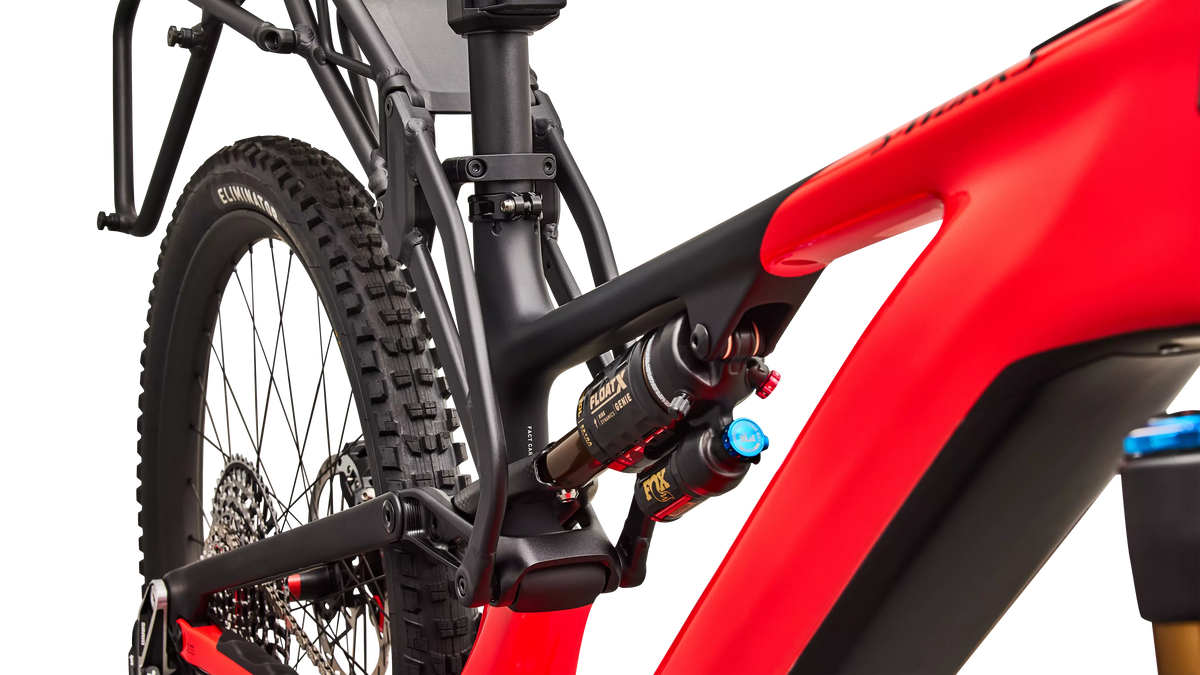

• Rear Shock: Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm

Brakes

• Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
• Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Drivetrain

• Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
• Shift Levers: SRAM AXS Pod Ultimate with Discrete Clamp
• Crankset: SRAM XX Carbon crank, 160mm, ISIS interface
• Rear Derailleur: SRAM XX Eagle Transmission Derailleur
• Cassette: SRAM XX Transmission, XS 1297, 10-52t
• Chain: SRAM XX, T-Type

Wheels & Tires

• Front Tire: Butcher, GRID Gravity, T9, TLR, 29x2.4"
• Rear Tire: Eliminator, GRID Gravity casing, Gripton T7/T9 compound, 27.5X2.4
• Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12 x 148mm, 32h
• Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15 x 110mm, 28h
• Inner Tubes: Standard, Presta Valve

Cockpit

• Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
• Stem: Industry 9 A35 Mountain stem, 35mm clamp, 40mm length

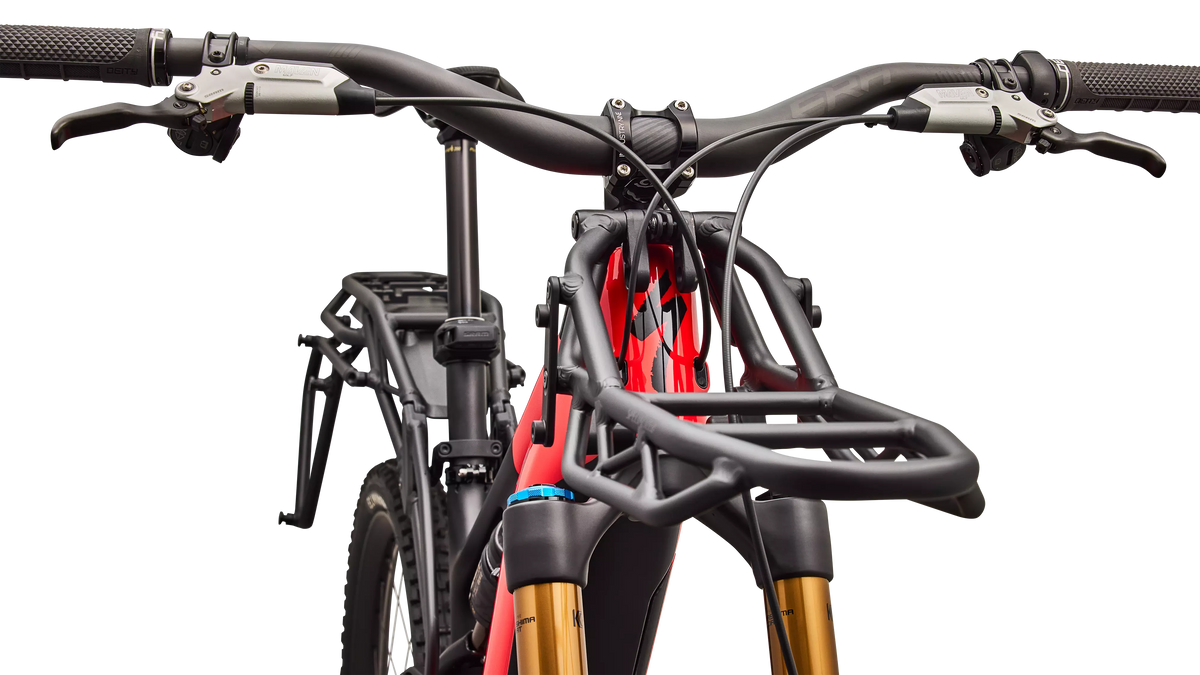

• Handlebars: RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
• Seatpost: RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm
• Saddle: Specialized Power Pro Mirror w/hollow Ti rails, 143mm/155mm

Accessories

• SWAT: SWAT Internal downtube storage

Geometry (mm)

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

Weight: approx. 60 lbs, manufacturer spec
