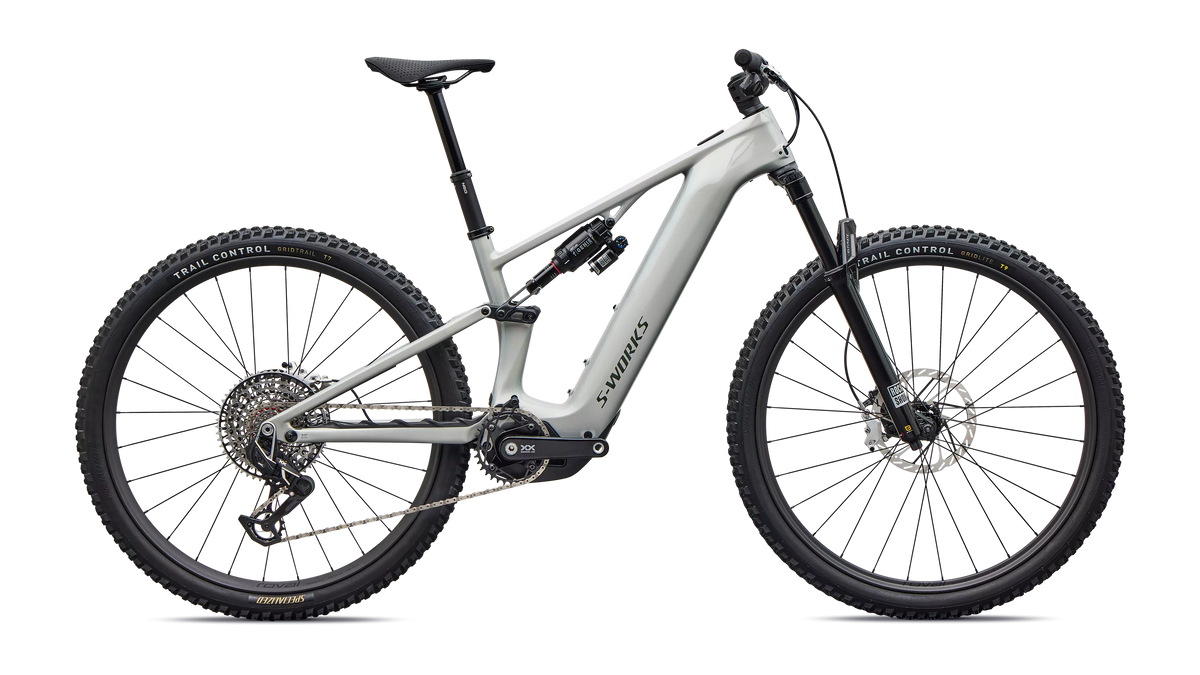

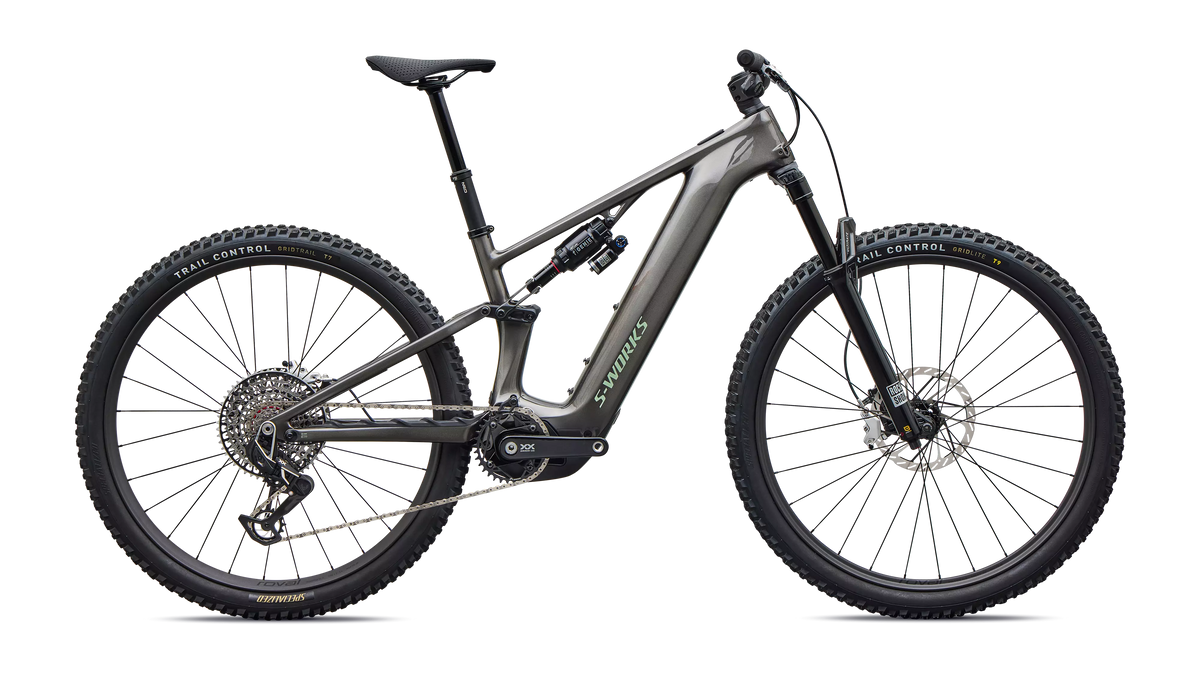

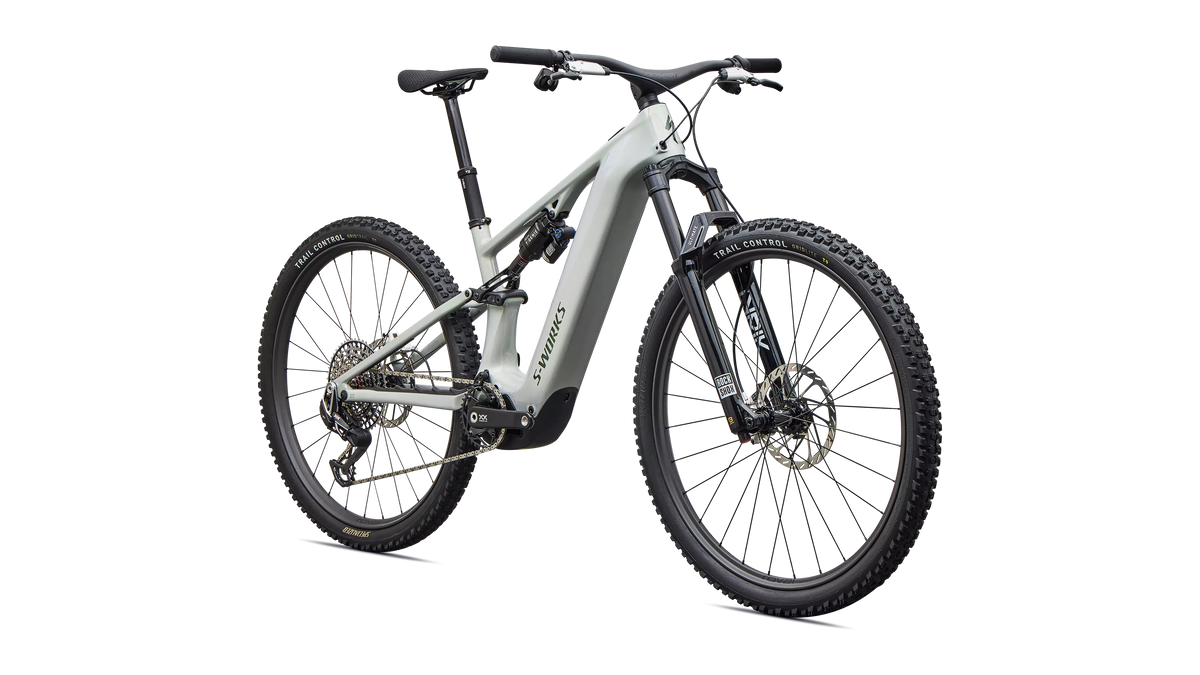

Specialized S-Works Turbo Levo R (2027)

Specialized S-Works Turbo Levo R (2027)

Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, the Levo R e-MTB channels the SuperNatural power of Levo 4—but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose‑built chassis and XC Trail‑tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.

Key Features

• Use: Full Power Electric XC Trail
• E-System: S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/optional Range Extender
• Frame: FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT E-MTB Storage
• Suspension: Front: 140mm RockShox Lyrik Ultimate fork; Rear: 130mm RockShox Super Deluxe Ultimate shock w/ GENIE
• Drivetrain: SRAM XX SL Eagle AXS Transmission
• Wheels: Roval Traverse SL II carbon wheels w/ i9 Hydra 2 hubs

Technical Specifications

E-Bike

• Battery: 900Wh Battery

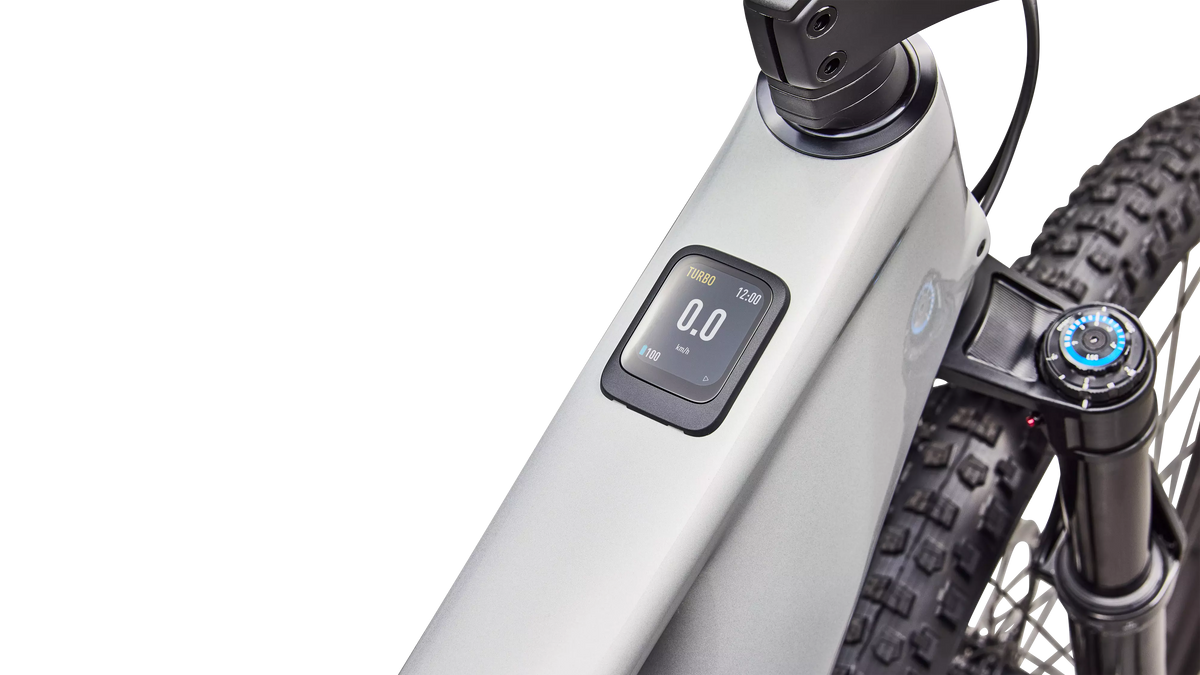

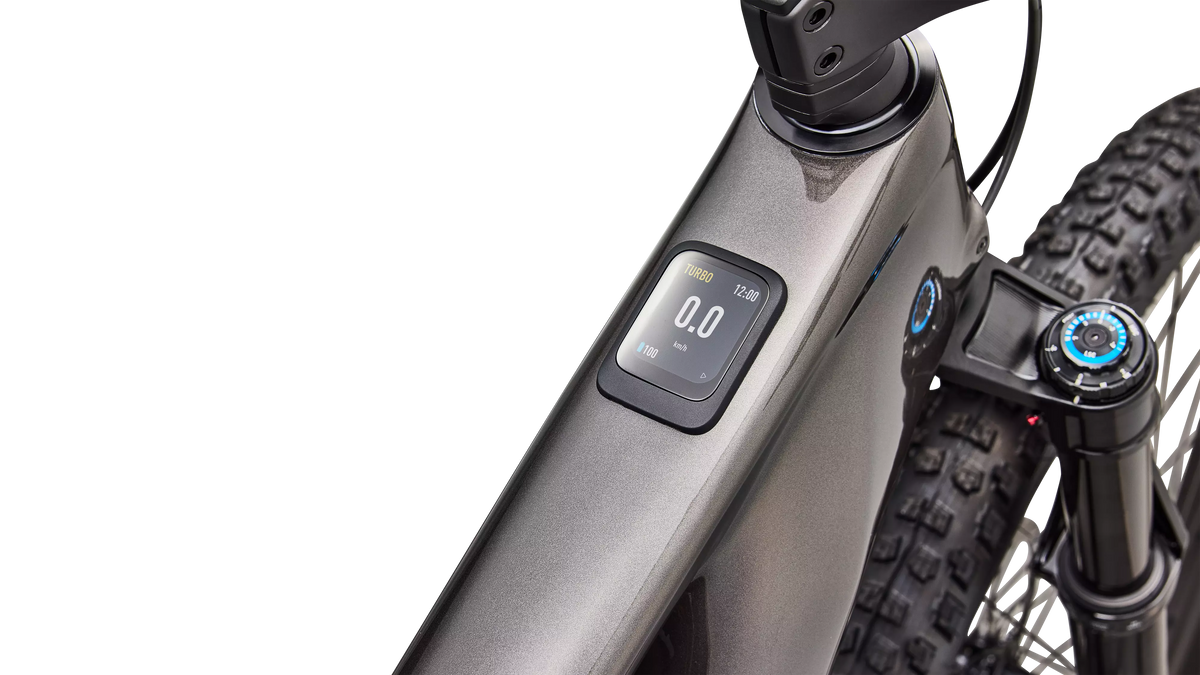

• UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
• Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

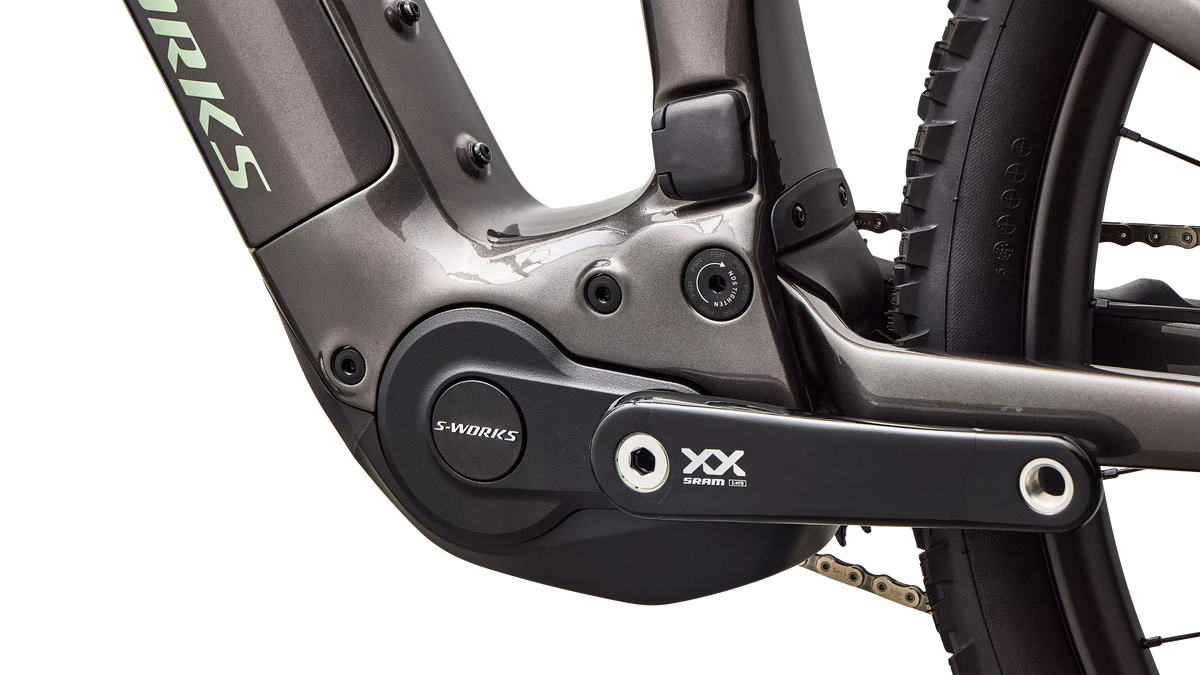

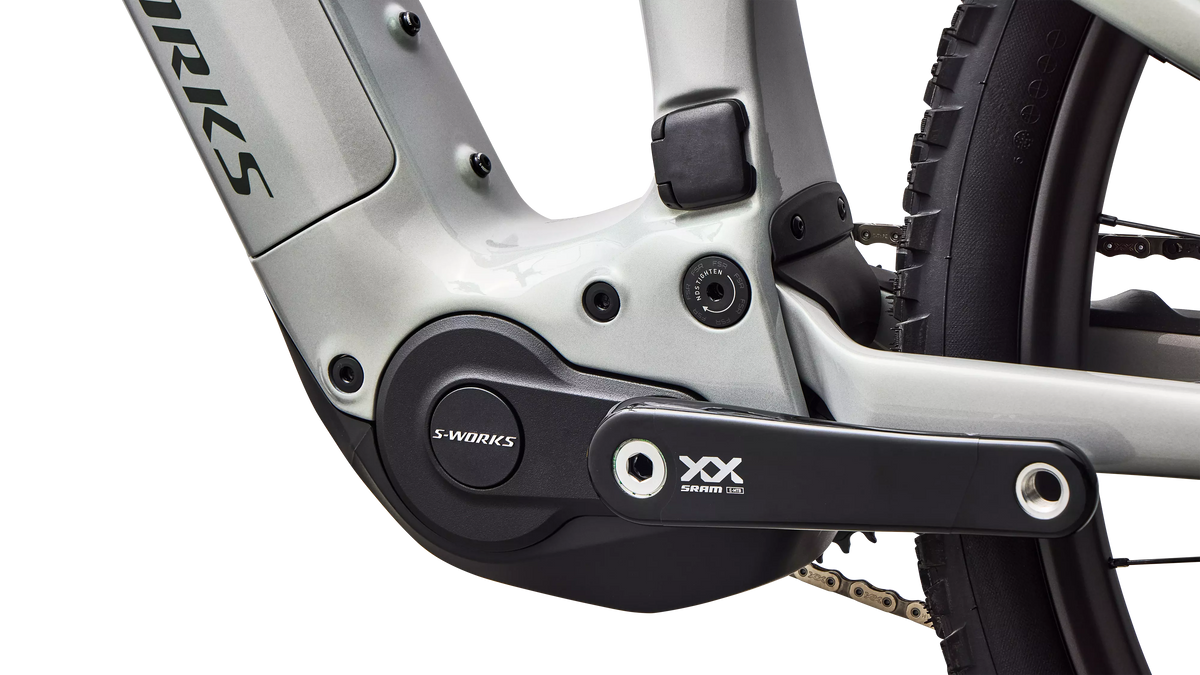

• Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power

Frameset

• Seat Binder: Alloy, 38.6mm
• Frame: FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel

Suspension

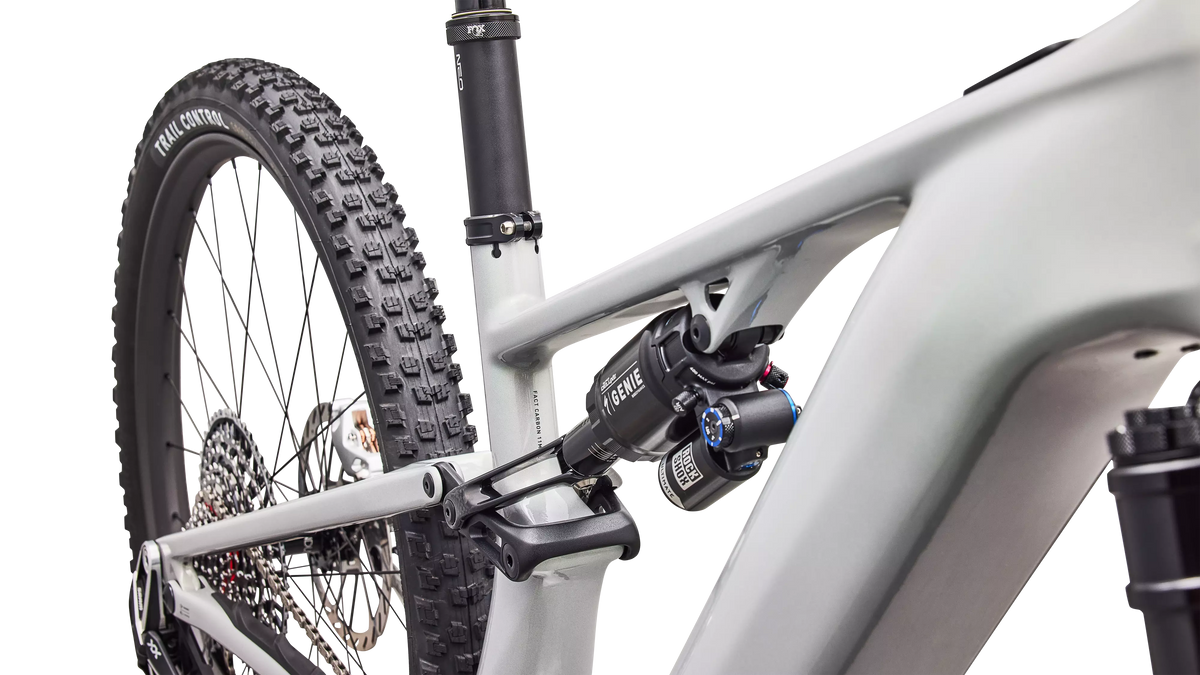

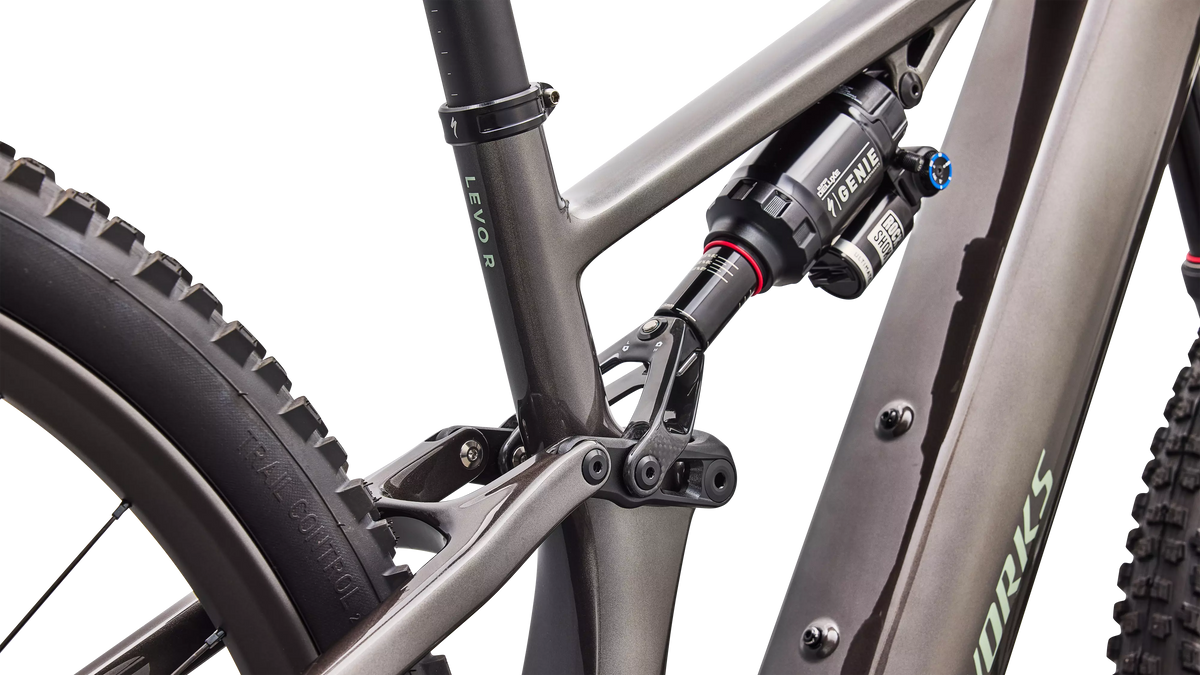

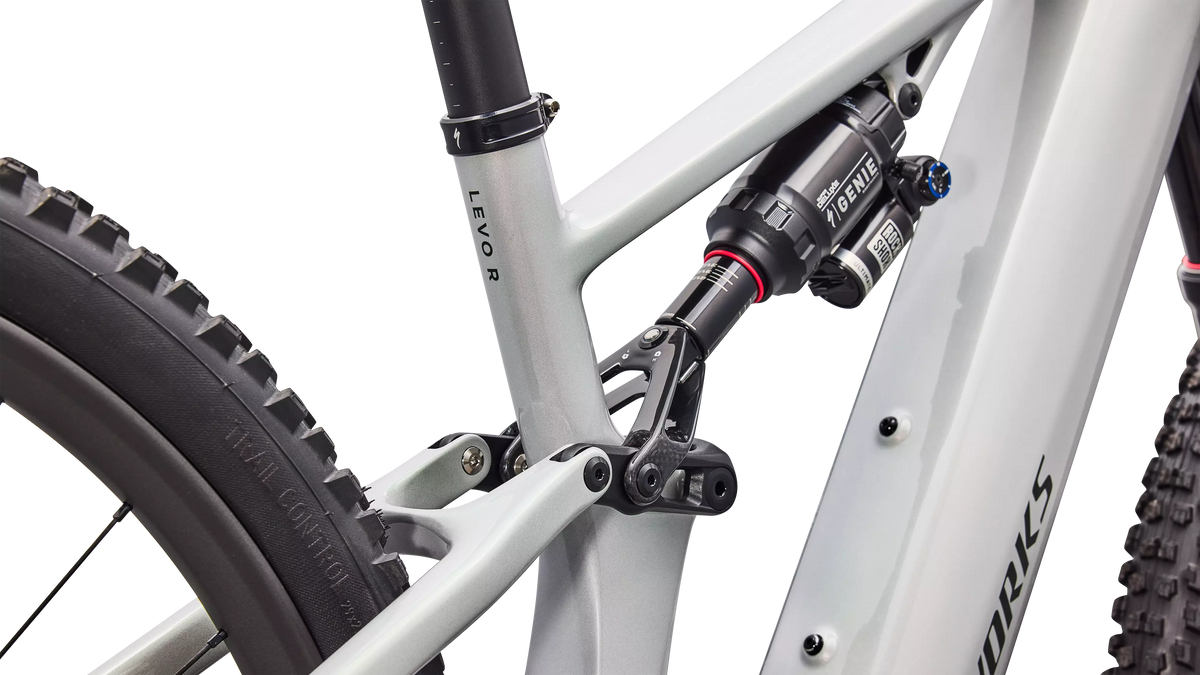

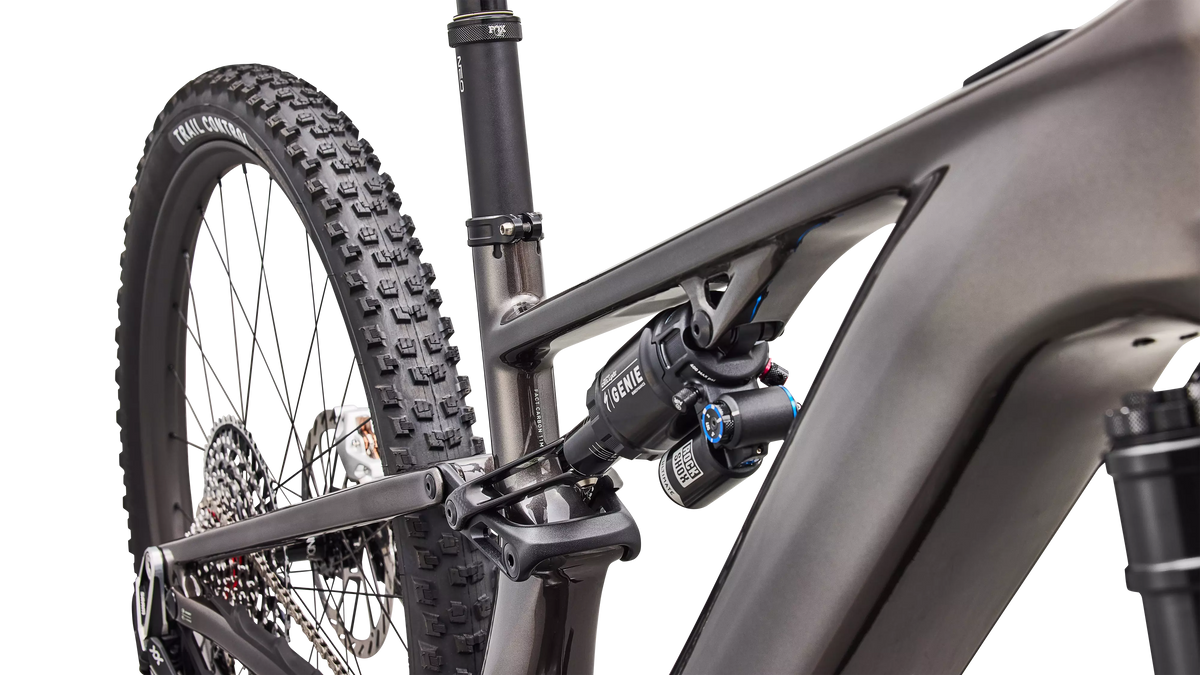

• Rear Shock: All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 190x45mm
• Fork: All New SRAM Rockshox Lyrik Ultimate, 29" 140mm, LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

Brakes

• Front Brake: SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
• Rear Brake: SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

• Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
• Shift Levers: SRAM AXS POD Ultimate Controller
• Crankset: SRAM XX Carbon crank, 160mm, ISIS interface
• Rear Derailleur: SRAM XX SL Eagle AXS
• Cassette: SRAM XX Transmission, XS 1297, 10-52t
• Chain: SRAM XX, T-Type

Wheels & Tires

• Rear Wheel: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 12x148mm, 32H, DT Swiss Revolite Spokes, 6 bolt
• Front Wheel: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28H, DT Swiss Revolite Spokes, 6 bolt
• Rear Tire: Specialized Trail Control, GRID Casing, T7 Compound, TLR, 29x2.4
• Front Tire: Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4
• Inner Tubes: Specialized Turbo Tube

Cockpit

• Seatpost: FOX Transfer Neo E-Optimized, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm, 1320mm cable powered by e-system battery

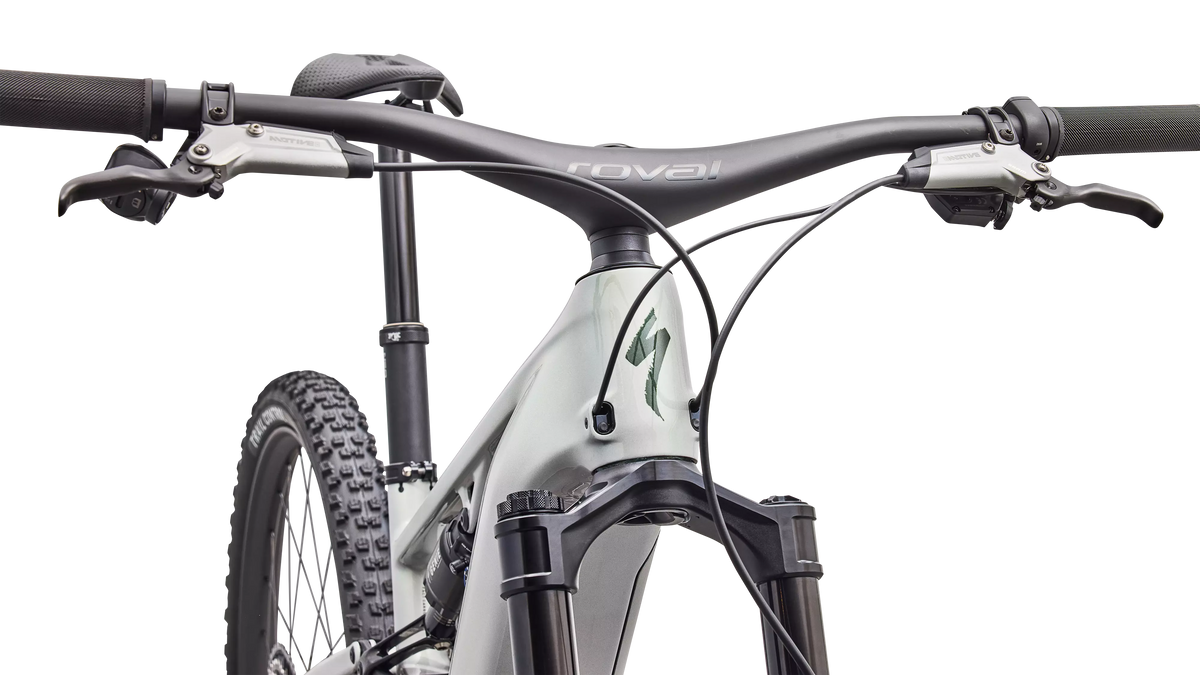

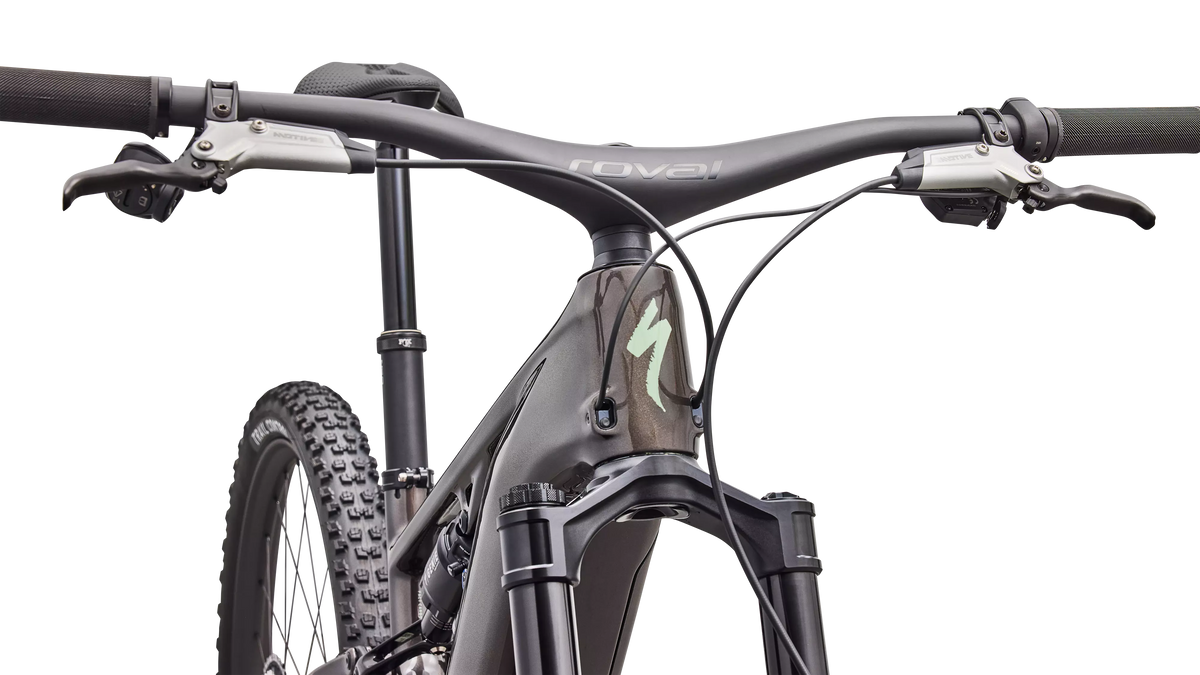

• Handlebars: Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide
• Saddle: Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
• Grips: Specialized Trail Grips

Accessories

• SWAT: SWAT internal downtube storage

Geometry (mm)

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

Weight: approx. 48 lbs, manufacturer spec
