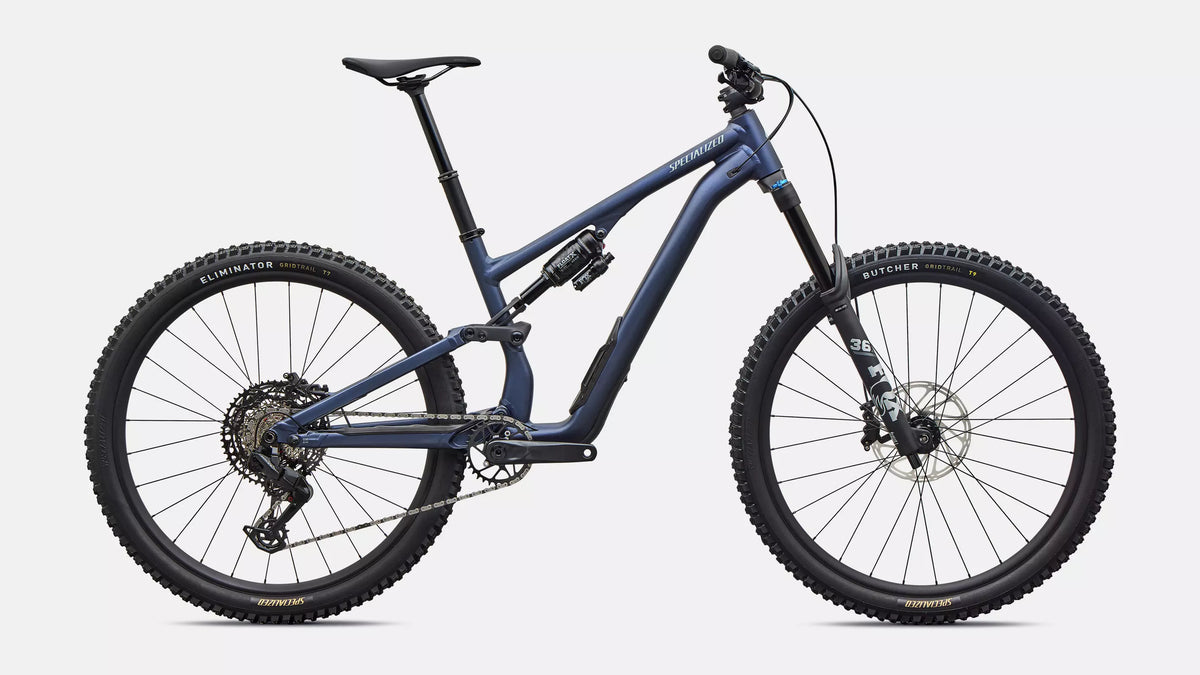

Specialized Stumpjumper 15 EVO Comp Alloy (2027)

$3,999.99
By Specialized
Color: Satin Metallic Deep Marine / Agave Grey
Size

Specialized Stumpjumper 15 EVO Comp Alloy (2027)

One Bike to Rule All Trails

Capability, Control, Personalization

The all-new Stumpjumper 15 EVO obliterates every trade-off in the trail game. It’s the ‘Bike of the Year’ winning Stumpy 15 you know, turned up to 11—with a longer-travel 160mm FOX fork, external reservoir FOX FLOAT X shock, and a slacker headtube for next-level capability. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. A heaping helping of personalization to make it perfect for the only rider who matters—you? Check, check, check.

At a Glance

Use

Trail

Frameset

M5 Aluminium Chassis w/ SWAT

Suspension

Front: 160mm FOX FLOAT 36 Rhythm GRIP<br> Rear: 145mm FOX FLOAT X GENIE Performance

Drivetrain

SRAM Eagle 70 Transmission

Wheels

Specialized Alloy

Weight

36 lb, 12.7 oz

Technical Specifications

Frameset
Seat Binder
Alloy, 38.6mm
Frame
M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
SWAT
SWAT 4.0 internal downtube storage
Suspension
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset S1:150mm of travel, S2-S6:160mm of travel
Rear Shock
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Cassette
SRAM 12-speed,10-52t
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Bottom Bracket
SRAM DUB Threaded Wide
Shift Levers
SRAM Eagle 70
Rear Derailleur
SRAM Eagle 70 Transmission, 12-speed, easy shift under load
Crankset
SRAM Eagle 70, 165/170mm, 55mm chainline, 32T
Wheels & tires
Front Tire
Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4
Spokes
DT Swiss Elemental
Rear Tire
Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12x148mm thru-axle, 32h, HG Steel Fhb
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Grips
Specialized Trail Grips
Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Seatpost
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S5: 170, S4: 200mm, S5-S6: 230mm
Product details
Product ID
263530
Weight
Weight
16.69 kg (36 lb, 12.7 oz)
Weight Size
S4

Geometry

S1 S2 S3 S4 S5 S6
Crank Length 165 165 165 170 170 170
Handlebar Width 780 780 800 800 800 800
Stem Length 40 40 40 40 40 40
Saddle Width 155 155 143 143 143 143
Seatpost Length 125 150 170 200 200 230
Stack 611 621 630 644 658 671
Reach 400 420 445 470 495 525
Headtube Length 95 100 110 125 140 155
Headtube Angle 64 64 64 64 64 64
BB Height 337 340 340 340 340 340
BB Drop 38 35 35 35 35 35
Trail 133 134 134 134 134 134
Fork Length (full) 561 573 573 573 573 573
Fork Rake/Offset 44 44 44 44 44 44
Front Center 724 755 785 816 848 884
Chainstay Length 430 432 435 435 445 445
Wheelbase 1153 1186 1217 1249 1290 1327
Top-tube Length (horizontal) 542 574 596 625 649 678
Bike Standover Height 738 751 745 745 745 751
Seat Tube Length 385 385 405 425 445 465
Seat Tube Angle 77.7 76.5 76.5 76 76 76
Saddle Height for Effective ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 245 245 255 255 285 285
Min Seatpost Insertion 80 80 80 80 80 80
