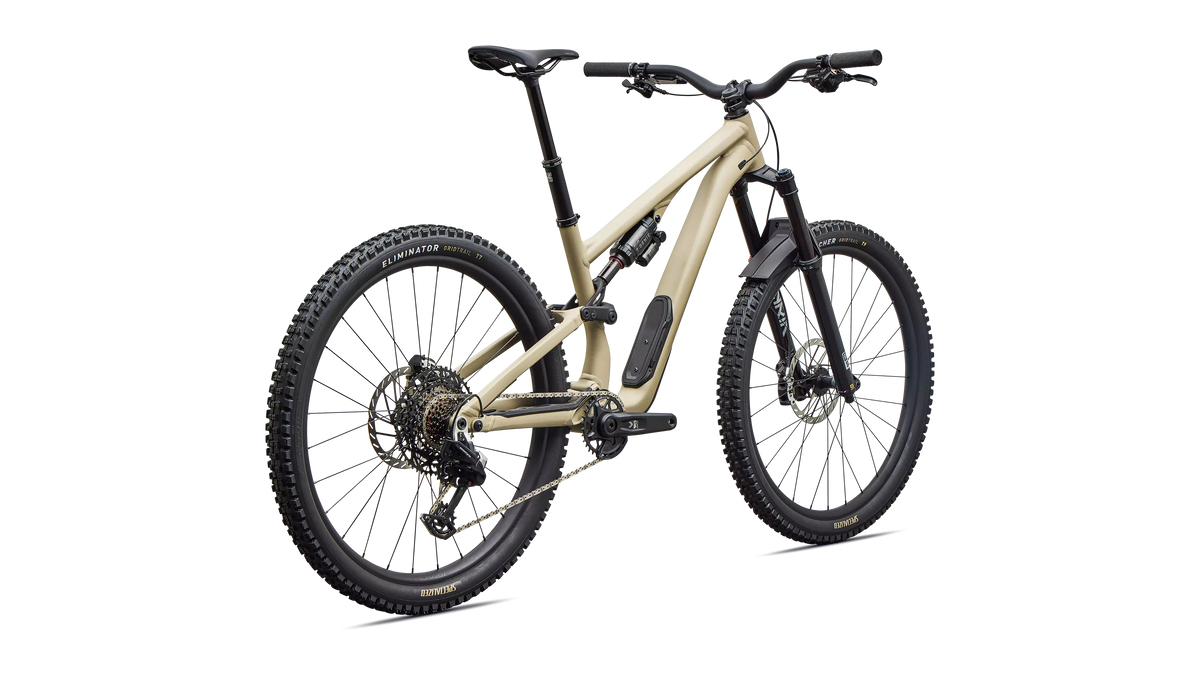

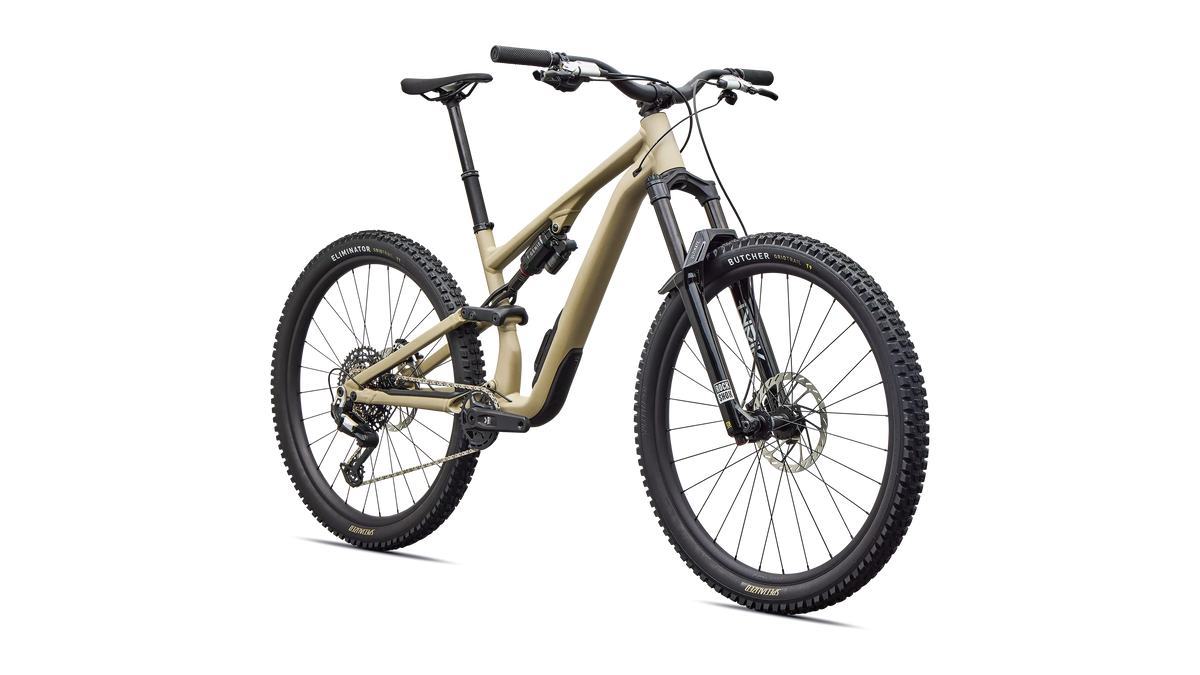

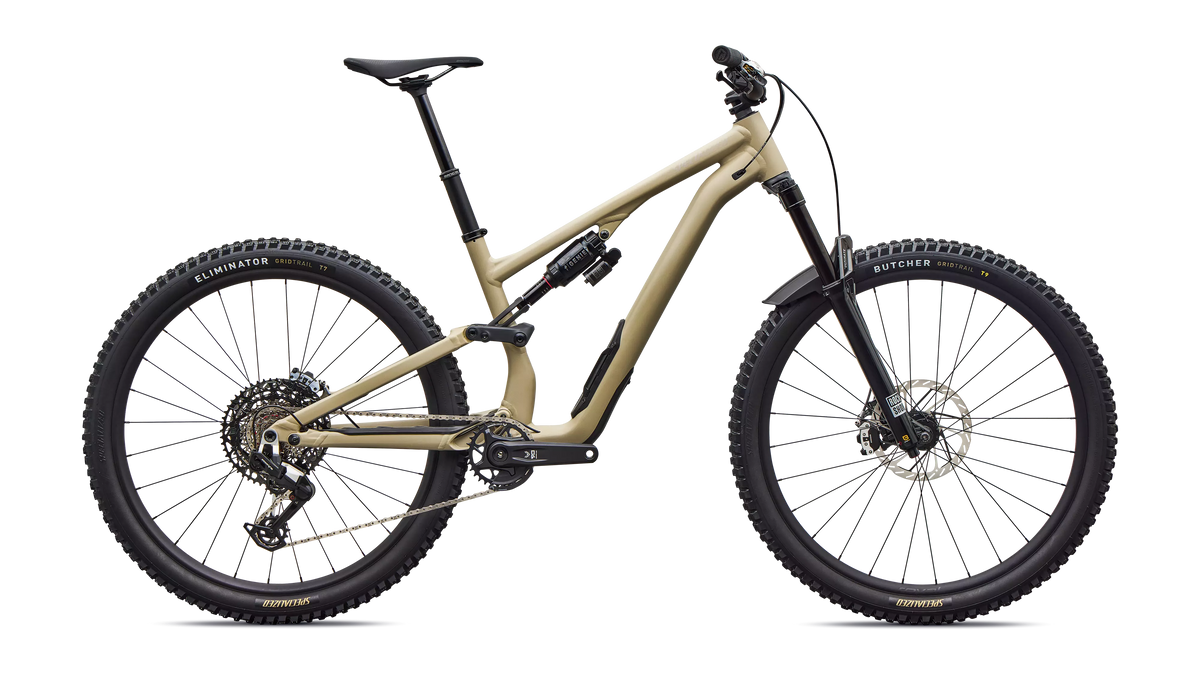

Specialized Stumpjumper 15 EVO Elite Alloy (2027)

Specialized Stumpjumper 15 EVO Elite Alloy (2027)

Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

Highlights

• Use - Trail
• Frame - M5 Alloy, SWAT Door integration, adjustable Trail Geometry
• Suspension - Front: 160mm RockShox Lyrik Ultimate fork / Rear: 145mm RockShox Super Deluxe Select shock w/ GENIE
• Drivetrain - SRAM Eagle 90 Transmission
• Wheels - Roval Traverse HD Alloy wheels w/ DT Swiss 370 hubs
• Weight - 16.79 kg (37 lb, 0.2 oz)

Technical Specifications

Frameset

• Seat Binder: Alloy, 38.6mm
• Frame: M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
• SWAT: SWAT 4.0 internal downtube storage

Suspension

• Fork: RockShox Lyrik Ultimate, 29" 160mm (S2-S6); 150mm (S1), LinearXL air spring with ButterCups and adjustable bottom out, Charger 3.2 damper with HSC and LSC, rebound adjust
• Rear Shock: RockShox Super Deluxe Select GENIE, GENIE adjustable airspring, rebound adjust, 210x55mm

Brakes

• Rear Brake: SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor
• Front Brake: SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

• Cassette: SRAM 12-speed, 10-52t
• Shift Levers: SRAM 90 trigger, 12-speed, single click
• Bottom Bracket: SRAM DUB Threaded Wide
• Rear Derailleur: SRAM Eagle 90 T-Type
• Crankset: SRAM Eagle 90, S1-S3: 165mm, S4-S6: 170mm, 55mm chainline, 32T
• Chain: SRAM GX Eagle Transmission 12-Speed Flattop Chain

Wheels & Tires

• Front Tire: Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4"
• Rear Tire: Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4", S3- S6: 29x2.4"
• Front Wheel: Roval Traverse Rim 29", hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes
• Rear Wheel: Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 12x148mm, 28h, Sapim Force Spokes, S1-S2: 27.5", S3-S6: 29"
• Inner Tubes: Standard, Presta Valve

Cockpit

• Stem: Specialized, 35mm Clamp, 35mm Reach
• Saddle: Bridge Comp, Hollow Cr-mo rails 155/143
• Grips: Deity Supracush, Lock On, 34mm OD, 133mm Length, Black
• Handlebars: Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
• Seatpost: X-Fusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 150mm, S3: 170mm, S4-S5: 200mm, S6: 230mm

Geometry (mm)

Weight: 16.79 kg (37 lb, 0.2 oz), manufacturer spec
