Specialized Stumpjumper 15 EVO Expert (2027)

$6,199.99
By Specialized

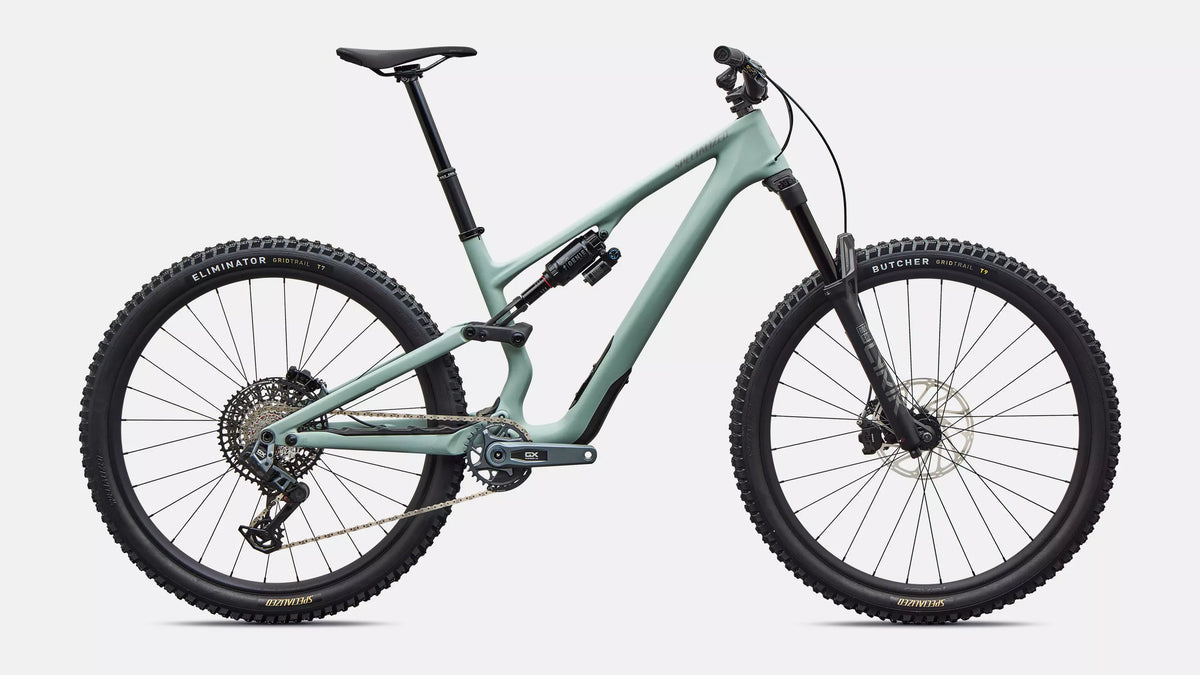

Color: Satin Agave Grey / Desert Metallic
Size

Specialized Stumpjumper 15 EVO Expert (2027)

Product Details

One Bike To Rule All Trails

Stumpjumper 15 EVO Expert

Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

At a Glance

Use

Trail

Frame

FACT 11m carbon, SWAT Door integration, adjustable Trail Geometry

Suspension

Front: 160mm RockShox Lyrik Select+ fork<br>Rear: 145mm RockShox Super Deluxe Select+ shock w/ GENIE

Drivetrain

SRAM GX Eagle AXS Transmission

Wheels

Roval Traverse HD Alloy wheels w/ DT Swiss 370 hubs

Weight

15.26 kg (33 lb, 10.3 oz)

Technical Specifications

Frameset
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
SWAT
SWAT 4.0 internal downtube storage
Suspension
Rear Shock
All New Rockshox Super Deluxe Select + GENIE, RCT damper with (LSC) Low Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
Fork
Rockshox Lyrik Select+, 29" 160mm (S2-S6); 150mm (S1), DebonAir+ air spring, Charger 3.1 RC2 damper with HSC and LSC, rebound adjust, 15x110mm
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm Centerline Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm Centerline Rotor
Drivetrain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Bottom Bracket
SRAM DUB Threaded Wide
Rear Derailleur
SRAM GX Eagle AXS Transmission
Crankset
SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Cassette
SRAM XG-1275 Transmission 12-Speed 10-52t
Wheels & tires
Front Tire
Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4
Rear Tire
Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Front Wheel
Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes
Rear Wheel
Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 12x148mm, 28h, Sapim Force Spokes, S1-S2: 27.5", S3:-S6: 29"
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Specialized, 35mm Clamp, 35mm Reach
Seatpost
Bike Yoke, Revive Max 3.0, 34.9, S1: 125mm, S2: 160mm, S3-S4: 185mm, S5-S6: 213mm
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Grips
Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Product details
Product ID
263533
Weight
Weight
15.26 kg (33 lb, 10.3 oz)
Weight Size
S4

Geometry

S1 S2 S3 S4 S5 S6
Crank Length 165 165 165 170 170 170
Handlebar Width 780 780 800 800 800 800
Stem Length 35 35 35 35 35 35
Saddle Width 155 155 143 143 143 143
Seatpost Length 125 160 185 185 213 213
Stack 611 621 630 644 658 671
Reach 400 420 445 470 495 525
Headtube Length 95 100 110 125 140 155
Headtube Angle 64 64 64 64 64 64
BB Height 337 340 340 340 340 340
BB Drop 38 35 35 35 35 35
Trail 133 134 134 134 134 134
Fork Length (full) 561 573 573 573 573 573
Fork Rake/Offset 44 44 44 44 44 44
Front Center 724 755 785 816 848 884
Chainstay Length 430 432 435 435 445 445
Wheelbase 1153 1186 1217 1249 1290 1327
Top-tube Length (horizontal) 542 574 596 625 649 678
Bike Standover Height 738 751 745 745 745 751
Seat Tube Length 385 385 405 425 445 465
Seat Tube Angle 77.7 76.5 76.5 76 76 76
Saddle Height for Effective ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 245 245 255 255 285 285
Min Seatpost Insertion 80 80 80 80 80 80
