Questions about the Specialized Stumpjumper 15 Expert SRAM GX AXS, FOX Performance Elite (2025)? Ask away.

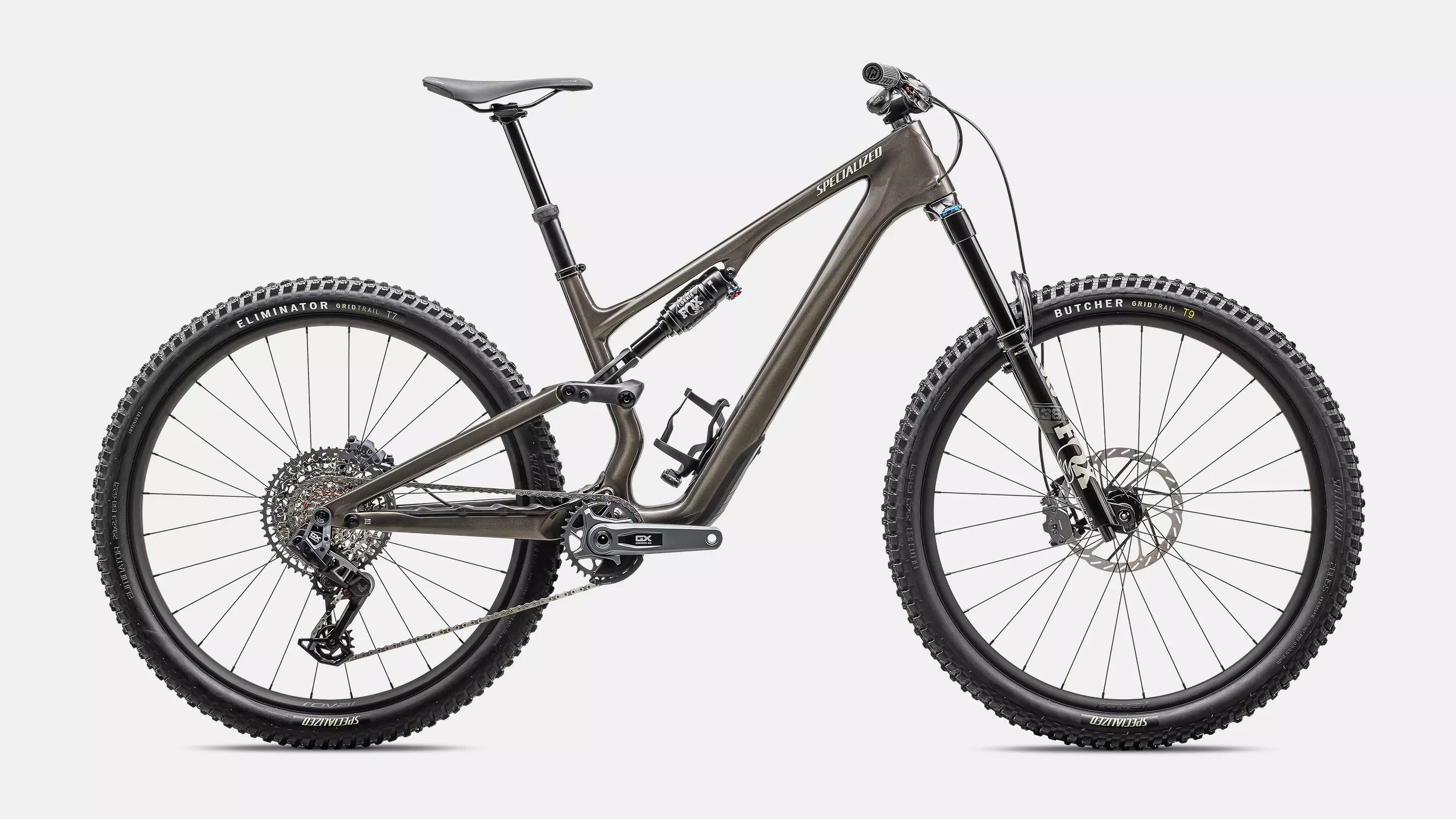

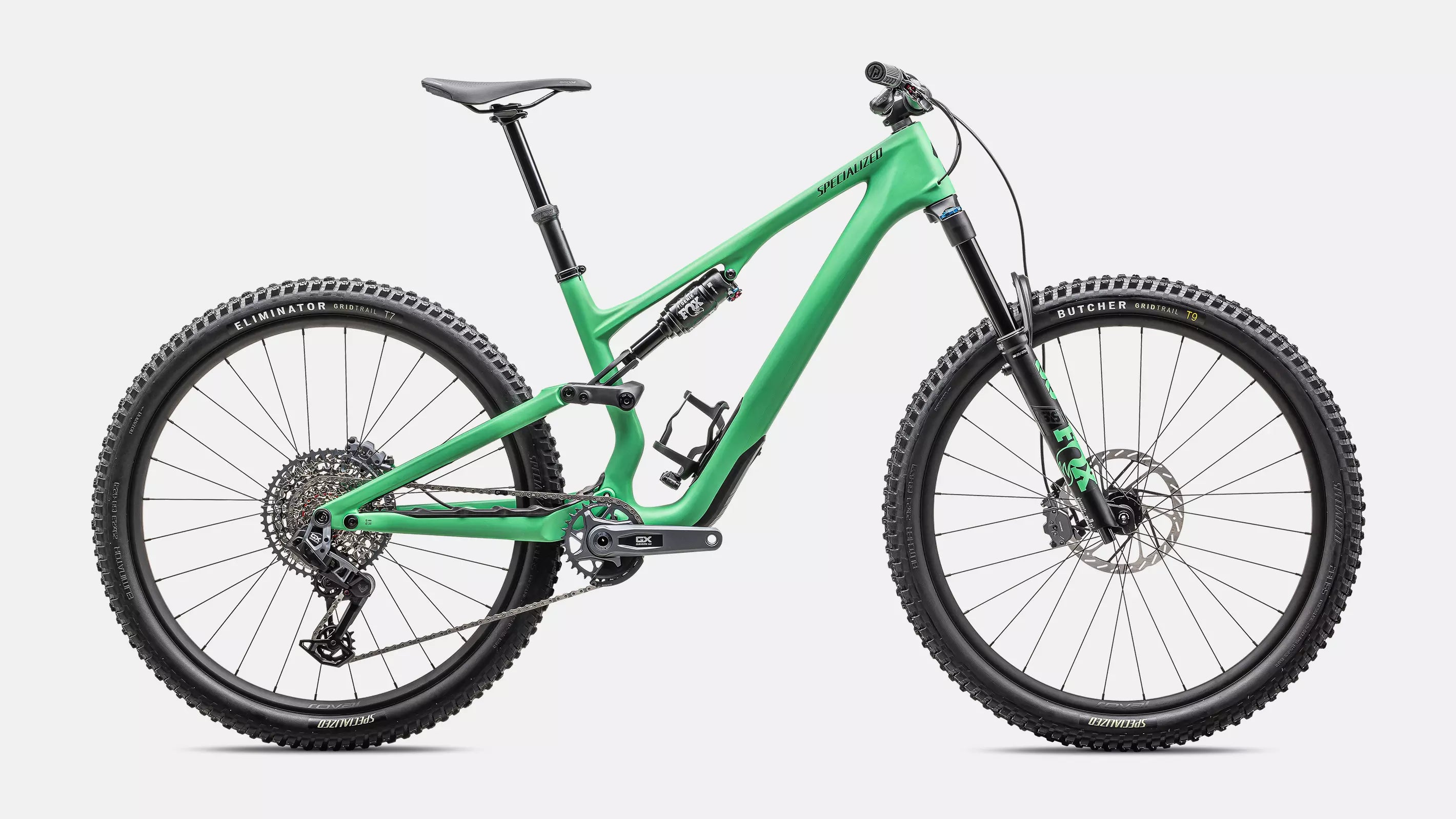

Specialized Stumpjumper 15 Expert SRAM GX AXS, FOX Performance Elite (2025)
That's $99.98 toward future purchases!
Pickup currently unavailable at CyclErie Bikes & Service - Erie, CO
- Lightweight FACT 11m carbon chassis and rear-end
- Ride Dynamics tuned FOX FLOAT Performance Elite with Specialized GENIE Shock Tech. Highly adjustable 2-position open and firm mode with the 3-position open mode compression adjuster
- Supportive and tuneable FOX FLOAT 36 Performance Elite fork with GRIP X2 damper
- Strong and trusted Roval Traverse wheels, DT Swiss 370 hub
- Smooth and precise SRAM GX Eagle T-Type AXS drivetrain
- Powerful and reliable SRAM Maven Bronze 4-piston brakes
- Adjustable travel with PNW LOAM dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Technical Specifications
- Frame
- FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
- Seat Binder
- Alloy, 38.6mm
- Fork
- FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel
- Rear Shock
- FOX FLOAT Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm HS2 Rotor
- Chain
- SRAM GX Eagle Transmission Flattop Chain
- Cassette
- SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
- Bottom Bracket
- SRAM DUB, BSA 73mm Wide, Threaded
- Shift Levers
- SRAM AXS POD Controller
- Crankset
- SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
- Rear Derailleur
- SRAM GX Eagle Transmission Derailleur
- Rims
- Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: S1-S2: 27.5, S3- S6: 29
- Front Hub
- DT Swiss 370, 15x110mm, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Rear Hub
- DT Swiss 370, 12x148mm, 28h
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"
- Spokes
- Sapim Force
- Inner Tubes
- Standard, Presta valve
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
- Grips
- Deity Lockjaw
- Handlebars
- Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise
- SeatPost
- PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm
- SWAT
- SWAT 4.0 internal downtube storage
- Product ID
- 221401
- Weight
- 14.47kg (31 lb, 14.4 oz)
- Weight Size
- S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 165 | 170 | 170 | 170 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 170 | 200 | 200 | 200 |
| Stack | 608 | 618 | 627 | 640 | 654 | 667 |
| Reach | 400 | 425 | 450 | 475 | 500 | 530 |
| Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 334 | 337 | 337 | 337 | 337 | 337 |
| BB Drop | 41 | 38 | 38 | 38 | 38 | 38 |
| Trail | 129 | 130 | 130 | 130 | 130 | 130 |
| Fork Length (full) | 551 | 561 | 561 | 561 | 561 | 561 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 720 | 751 | 780 | 812 | 843 | 879 |
| Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
| Wheelbase | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
| Top-tube Length (horizontal) | 541 | 573 | 595 | 624 | 647 | 677 |
| Bike Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
| Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 78 | 77 | 77 | 76.5 | 76.5 | 76.5 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 245 | 245 | 255 | 255 | 285 | 285 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
