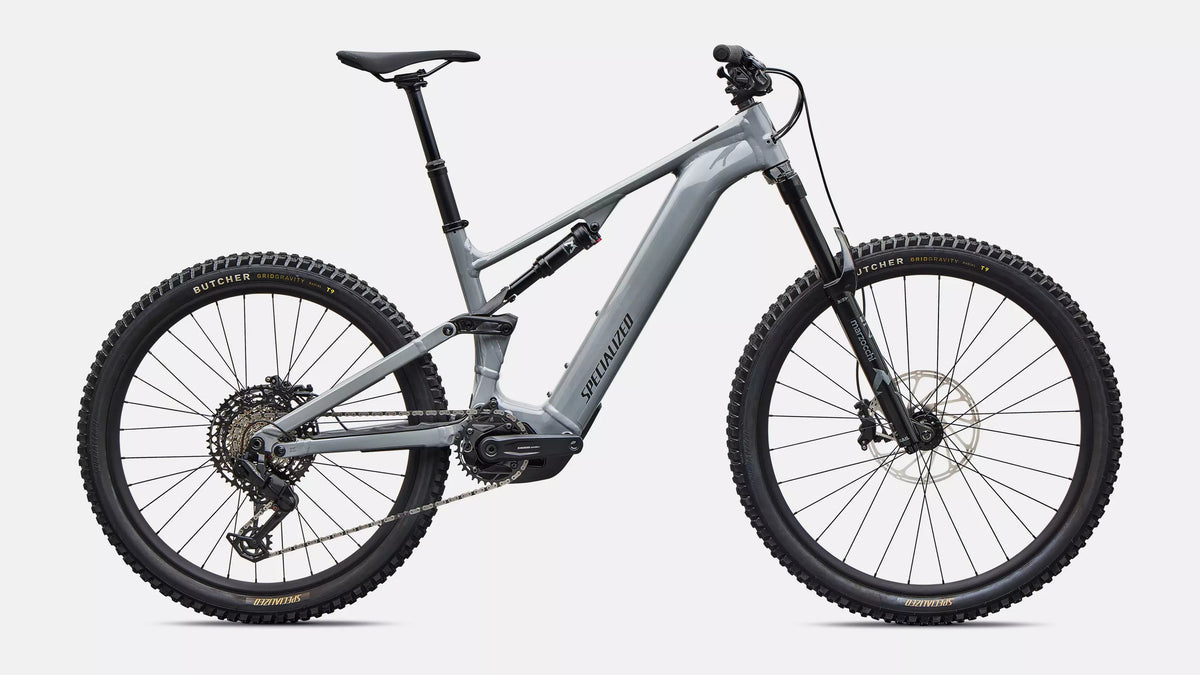

Specialized Turbo Levo 4 Alloy (2027)

$4,999.99
By Specialized
Color: Gloss Cool Grey / Smoke
Size

Specialized Turbo Levo 4 Alloy (2027)

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance

Use

Full Power E-MTB Trail

E-System

Specialized 3.1 Motor w/ 810 Watts & 105Nm, 840Wh Battery, up to 5 hour range

Frame

Premium M5 Alloy, Geo Adj & SWAT Storage

Suspension

Front: 160mm Marzocchi Bomber Z1<br>Rear: 150mm Marzocchi Bomber Inline (shock subject to upgrade)

Drivetrain

SRAM 70 Eagle T-Type Mechanical

Wheels

Specialized Alloy Rims / Bear Pawls hubs

Technical Specifications

E-bike
Battery
840Wh battery
UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Charger
Specialized 4amp charger
Frameset
Seat Binder
Alloy, 38.6mm
Frame
Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
Suspension
Rear Shock
Marzocchi Bomber Inline, Evol LV air sleeve, rebound adjust
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Cassette
SRAM 12-speed,10-52t
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Shift Levers
SRAM Eagle 70 T-Type, single click with MMX
Rear Derailleur
SRAM Eagle 70 Transmission, 12-speed, easy shift under load
Crankset
SRAM S1000 Alloy crank, ISIS interface, 155mm length
Wheels & tires
Rear Tire
Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
Front Tire
Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
Spokes
DT Swiss Elemental
Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Saddle
Body Geometry Bridge Saddle, steel rails
Grips
Specialized Trail Grips
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Accessories
SWAT
SWAT Internal downtube storage
Product details
Product ID
263412
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
Weight
26.0 kg (57 lb, 5.1 oz)
Weight Size
S4

Geometry

S1 S2 S3 S4 S5 S6
Crank Length 155 155 155 155 155 155
Handlebar Width 780 780 800 800 800 800
Stem Length 40 40 40 40 40 40
Saddle Width 155 155 143 143 143 143
Seatpost Length 100 125 150 170 200 200
Stack 609 618 626 638 652 667
Reach 407 435 455 480 505 535
Headtube Length 94 95 103 117 132 149
Headtube Angle 64 64.5 64.5 64.5 64.5 64.5
BB Height 355 350 350 350 350 350
BB Drop 24.13 29.5 29.5 29.5 29.5 29.5
Trail 132 132 137 132 132 132
Fork Length (full) 567 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44 44
Front Center 744 765 789 820 851 888
Chainstay Length 435 435 435 435 435 435
Wheelbase 1179 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 556 578 599 627 655 689
Bike Standover Height 753 753 754 753 758 761
Seat Tube Length 379 390 405 425 445 465
Seat Tube Angle 76 77 77 77 77 77
Saddle Height for Effective ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 264 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80 80
