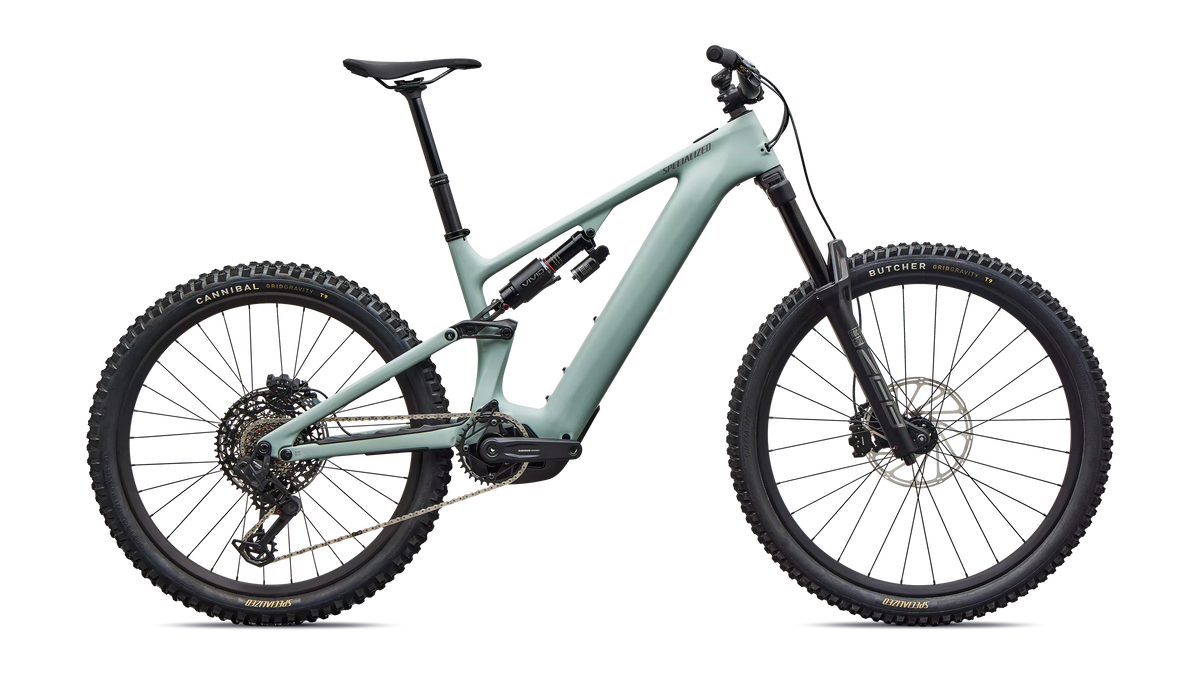

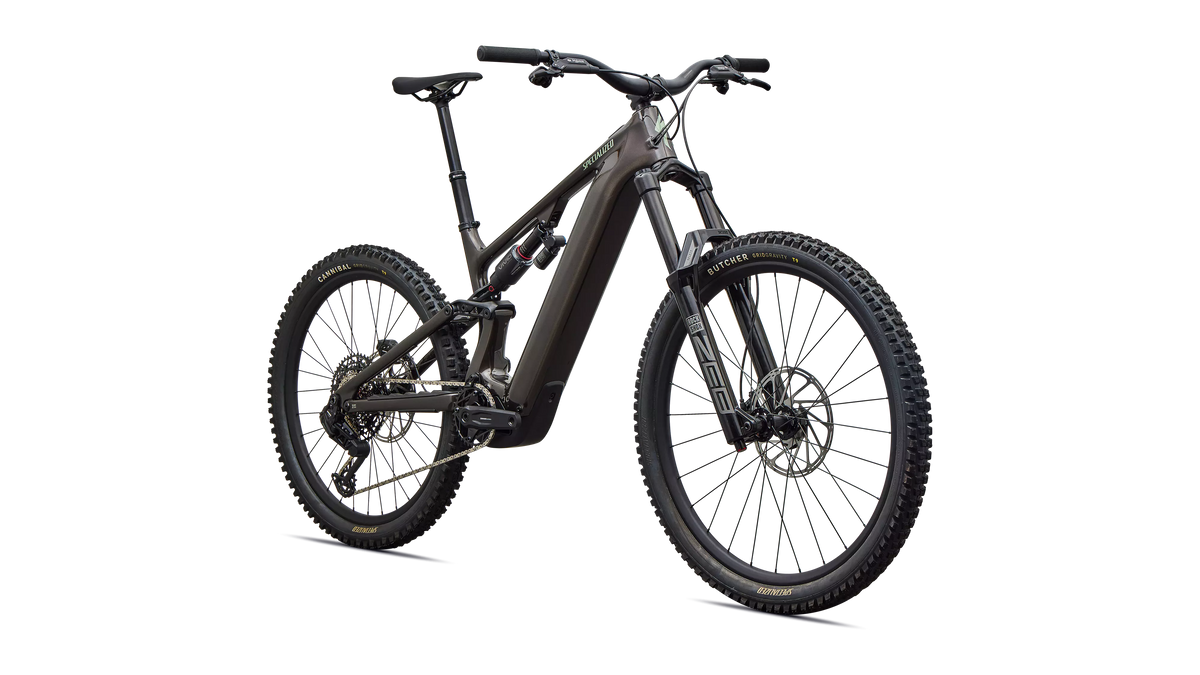

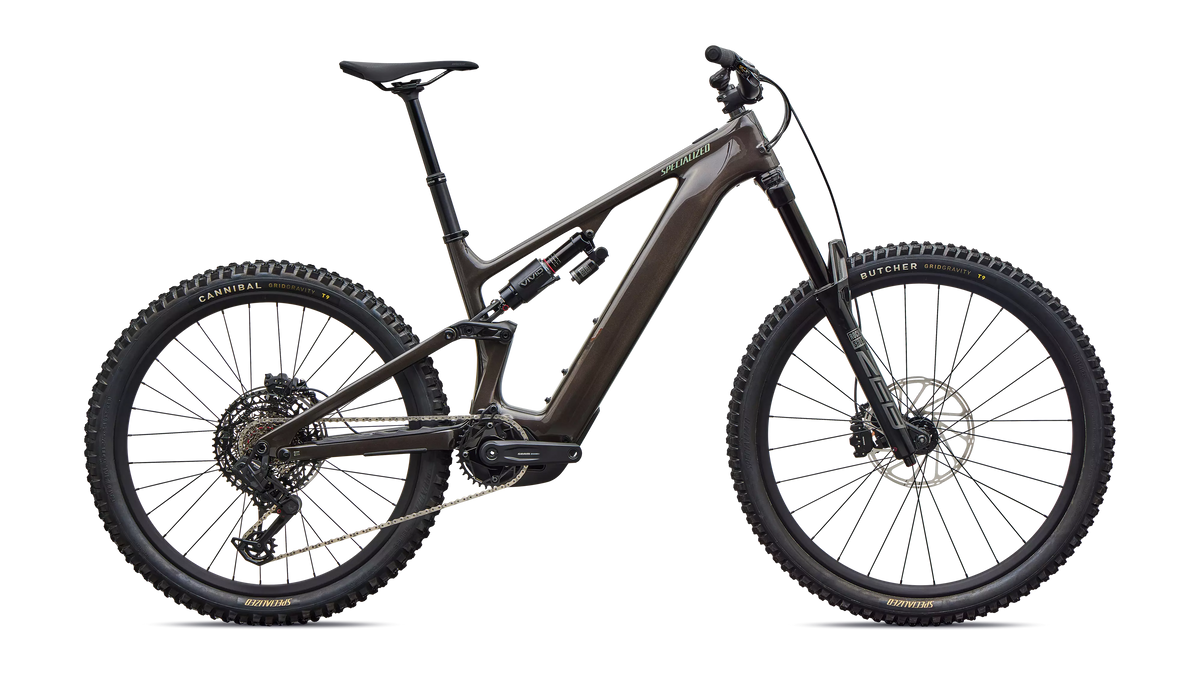

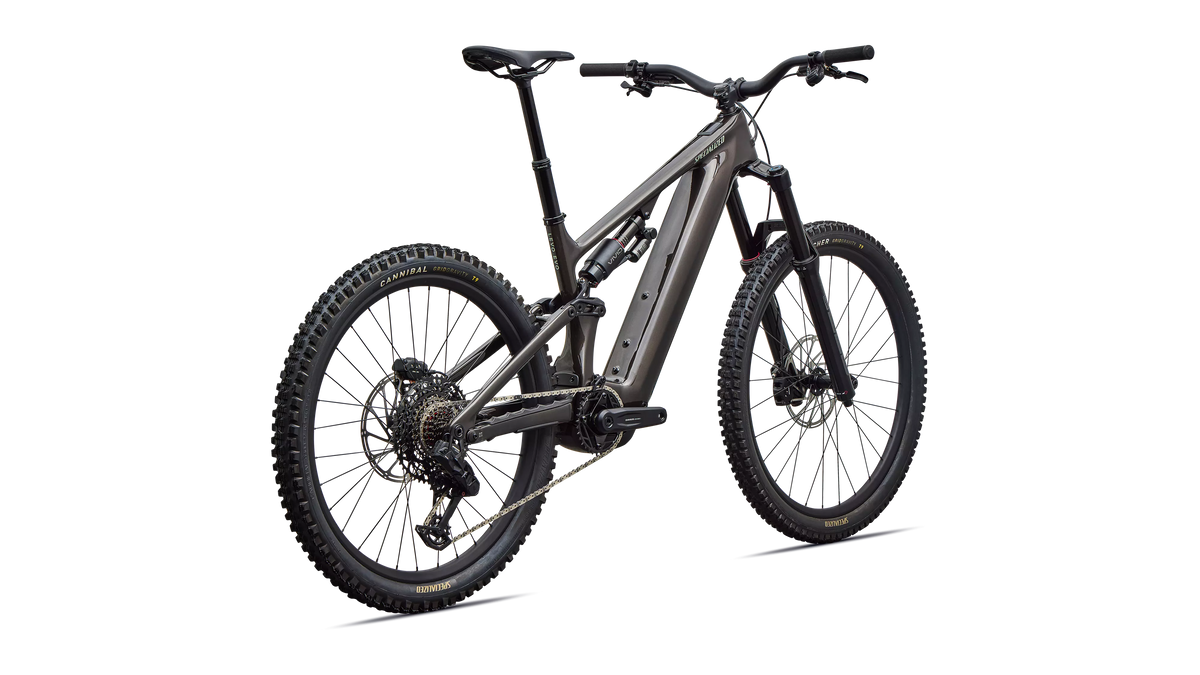

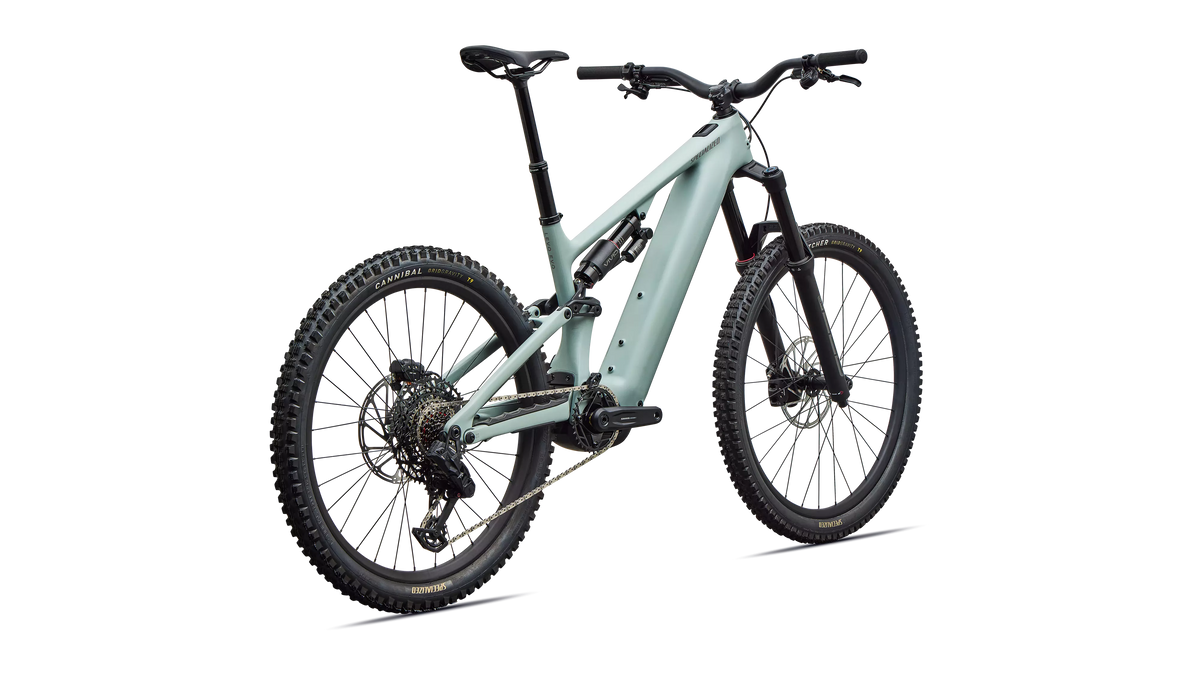

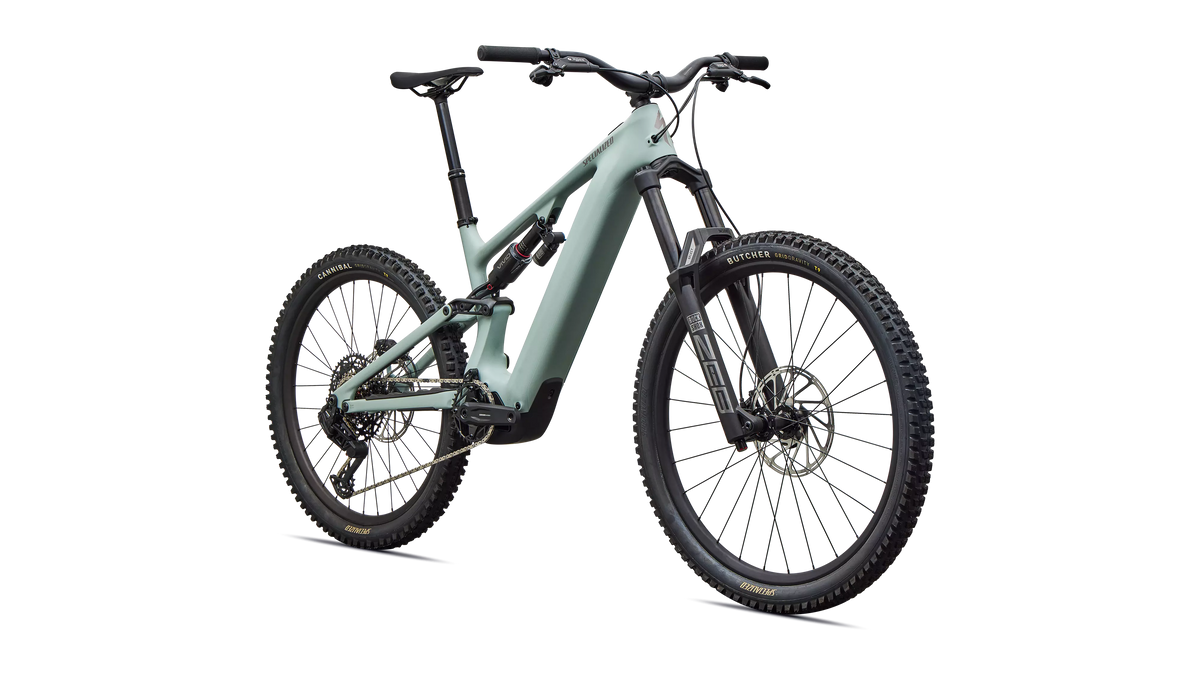

Specialized Turbo Levo 4 EVO Comp (2027)

Specialized Turbo Levo 4 EVO Comp (2027)

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric All Mountain.

Key Features

• Use: Electric All Mountain
• E-System: Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
• Frame: Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
• Suspension: Fork: 180mm RockShox Zeb Select; Shock: Vivid Select Air Linear
• Drivetrain: SRAM S1000 Eagle AXS
• Wheels: Specialized Alloy Wheels

Technical Specifications

E-Bike

• Battery: 840Wh battery

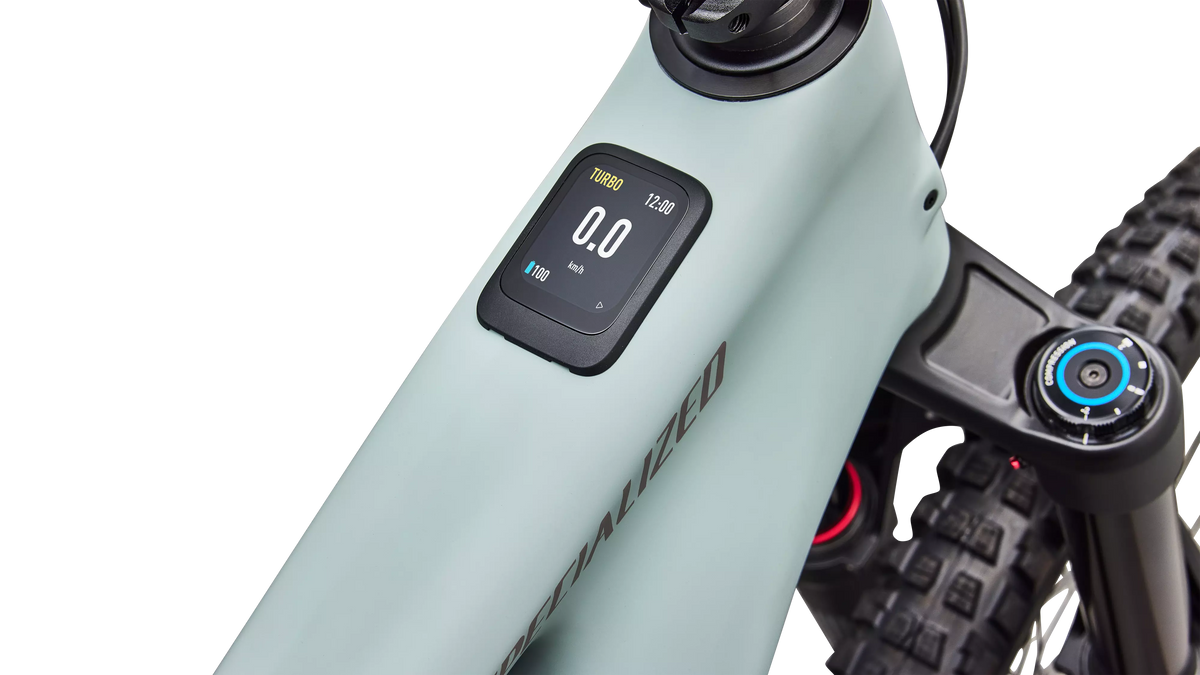

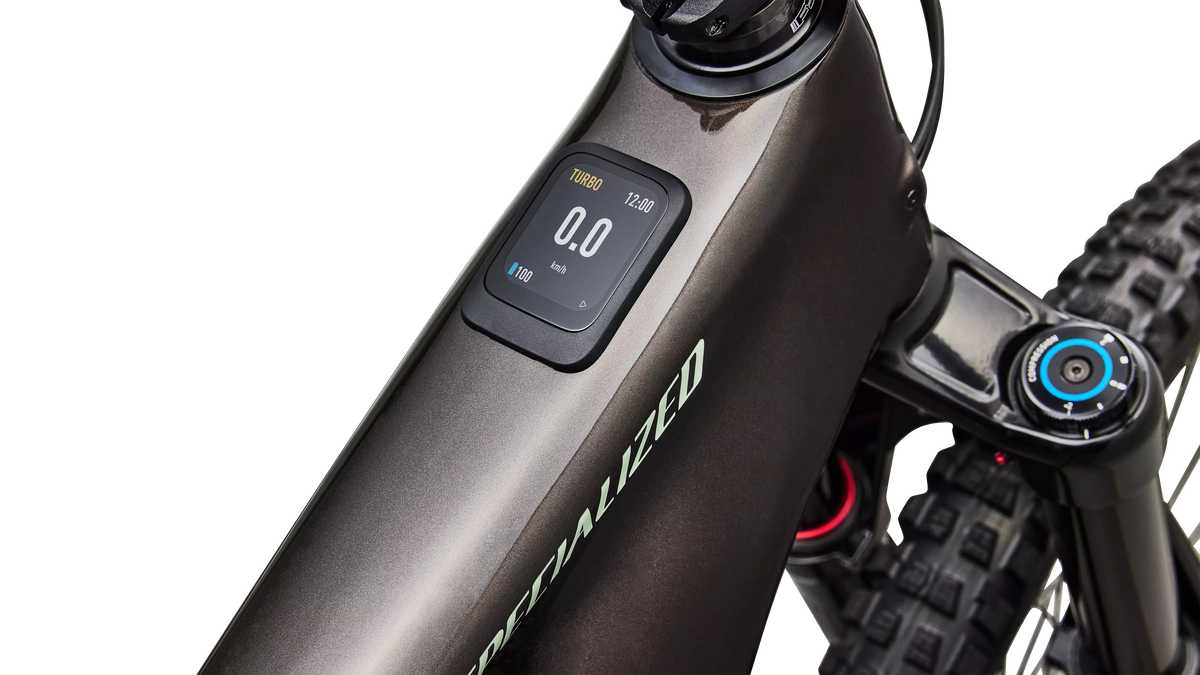

• UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

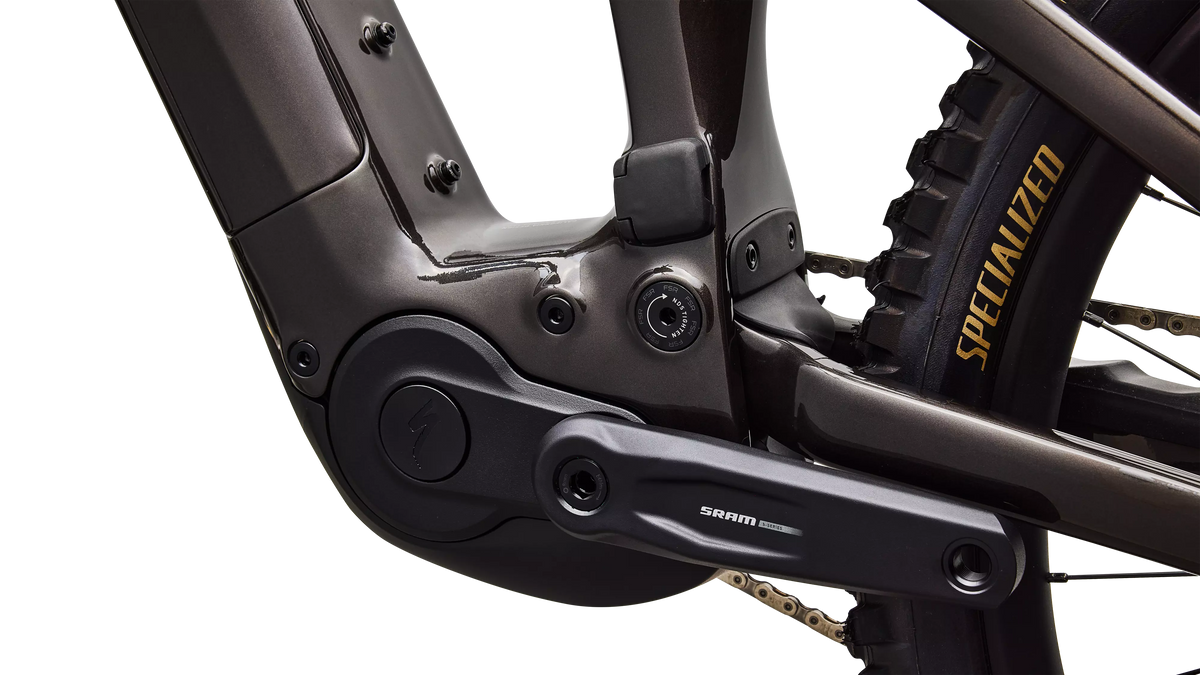

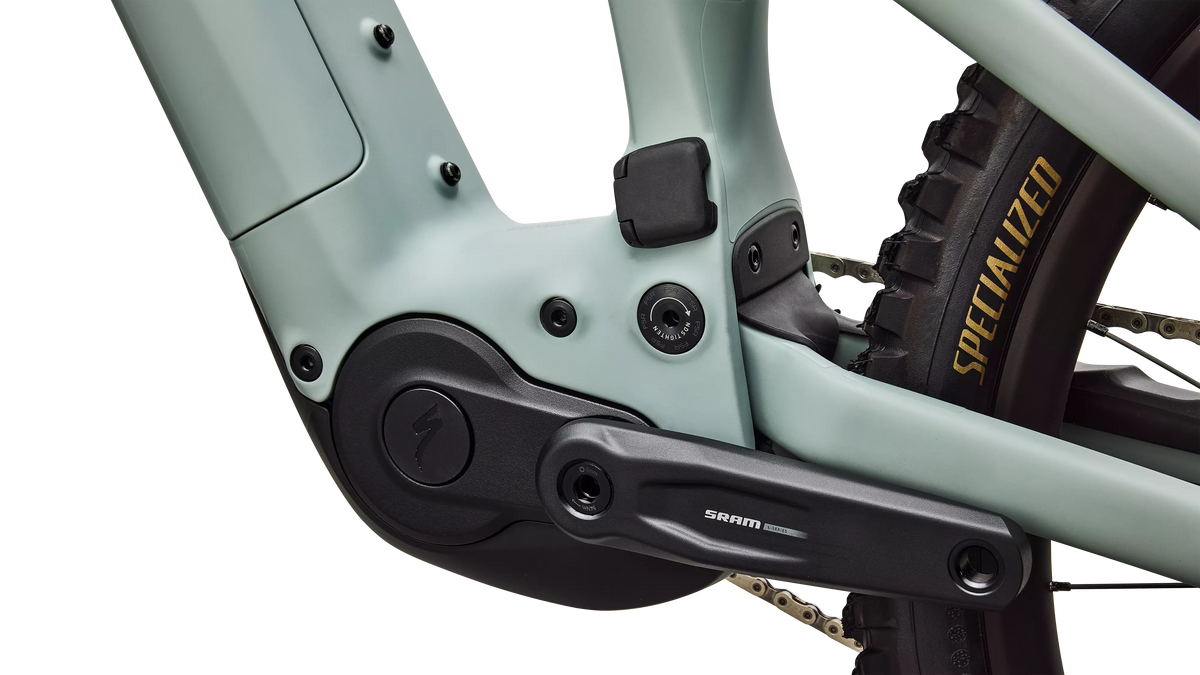

• Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
• Charger: Specialized 4amp charger

Frameset

• Seat Binder: Alloy, 38.6mm
• Frame: Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Suspension

• Fork: All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

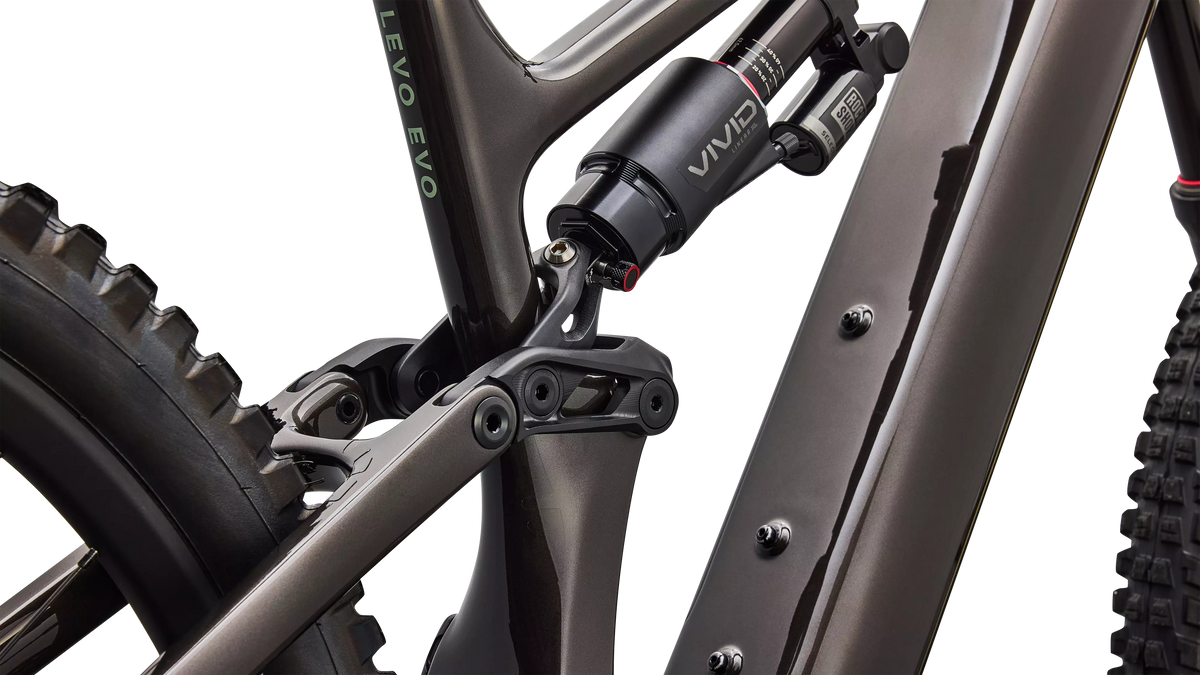

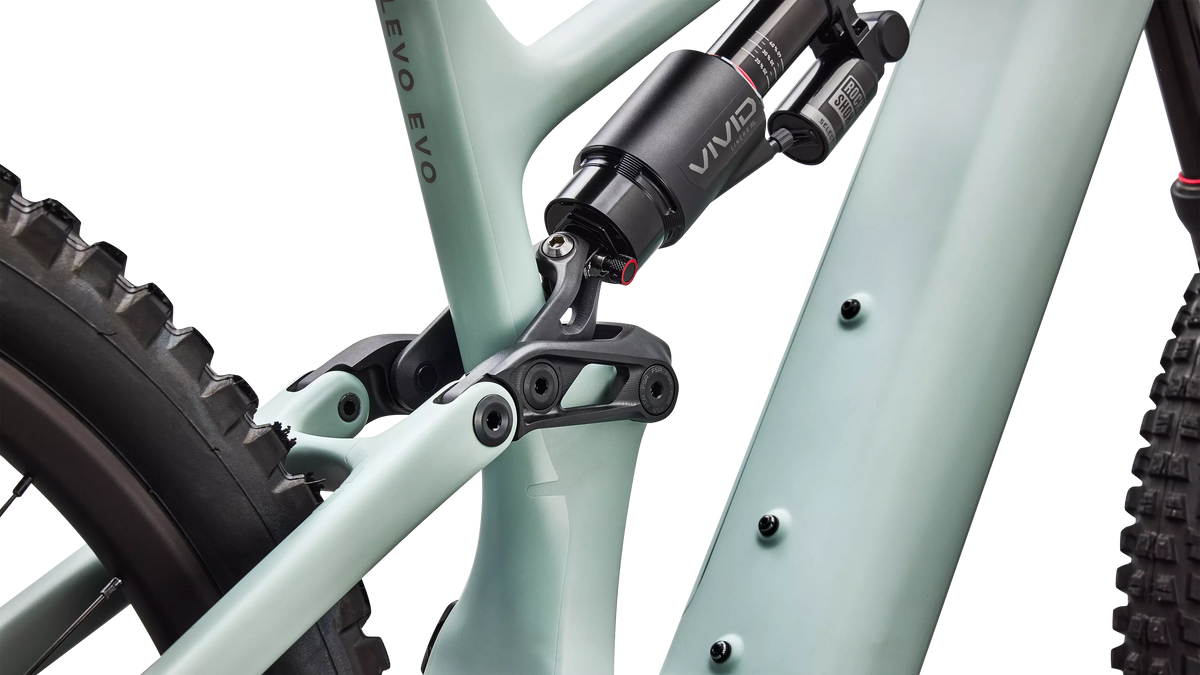

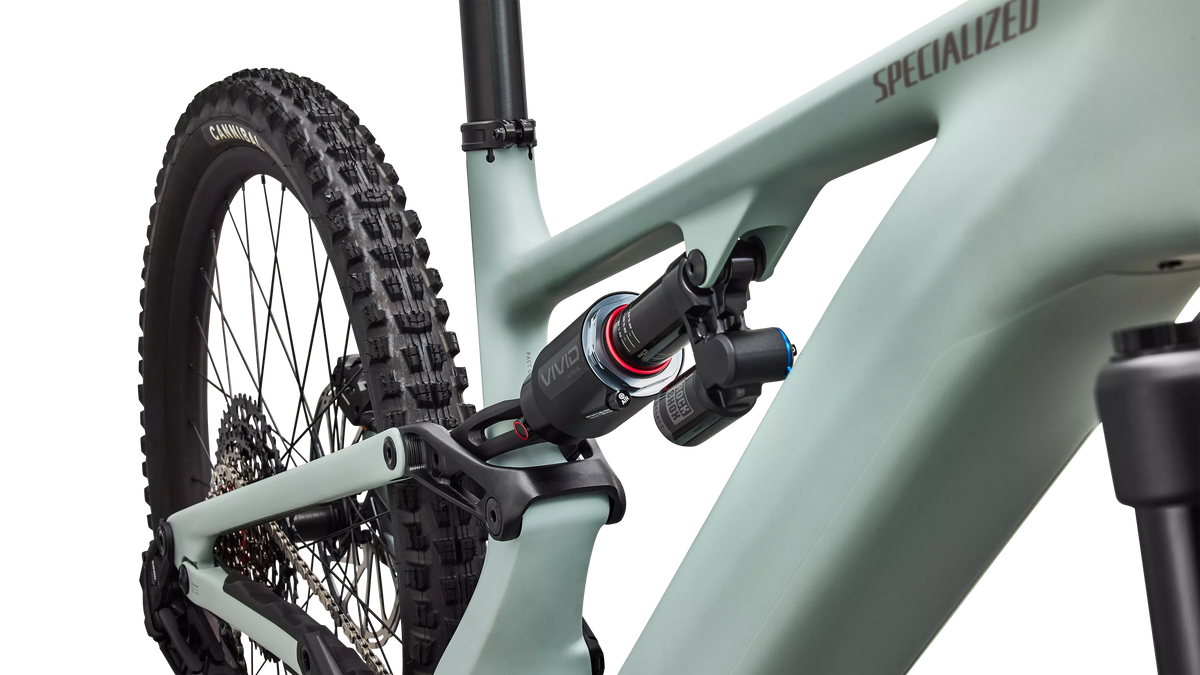

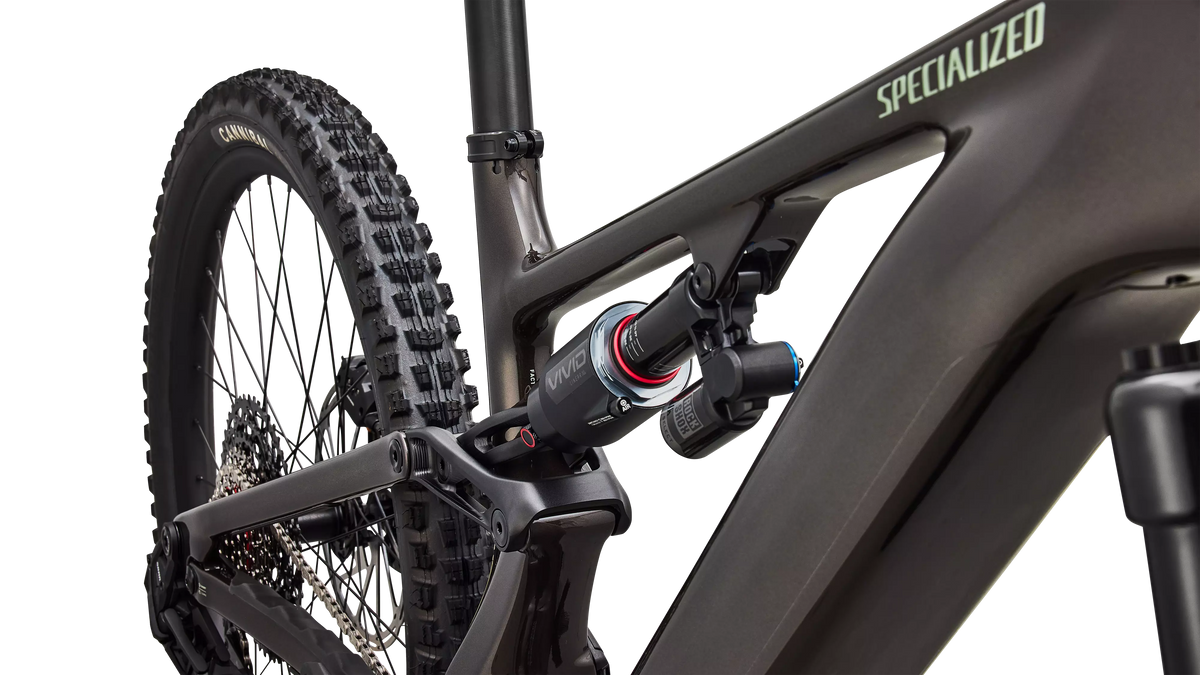

• Rear Shock: All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust

Brakes

• Rear Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
• Front Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

• Cassette: SRAM 12-speed,10-52t
• Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
• Shift Levers: SRAM AXS Pod Controller w/discrete clamp
• Chain: SRAM GX Eagle Transmission 12-Speed Flattop Chain
• Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length
• Rear Derailleur: SRAM S1000 Eagle AXS

Wheels & Tires

• Front Tire: Butcher, GRID Gravity, T9, TLR, 29x2.4"
• Rear Tire: Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
• Spokes: DT Swiss Elemental
• Rims: Specialized Alloy Rims
• Front Hub: Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
• Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
• Inner Tubes: Standard, Presta Valve

Cockpit

• Stem: Alloy Trail Stem, 35mm bar bore

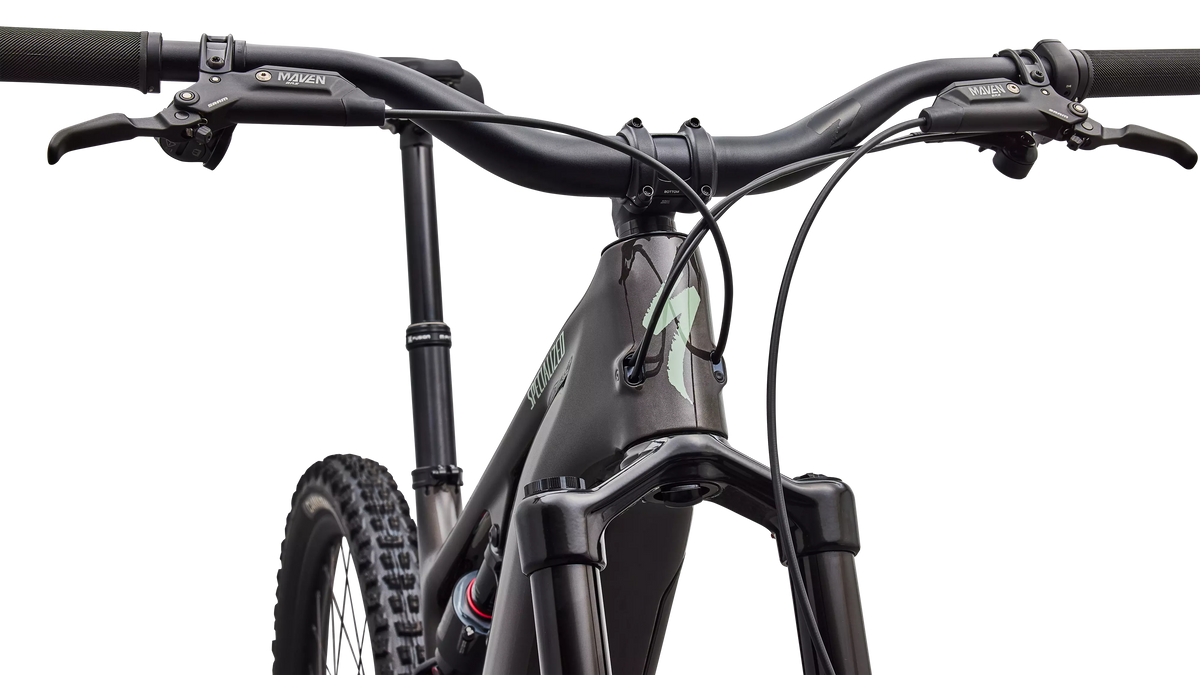

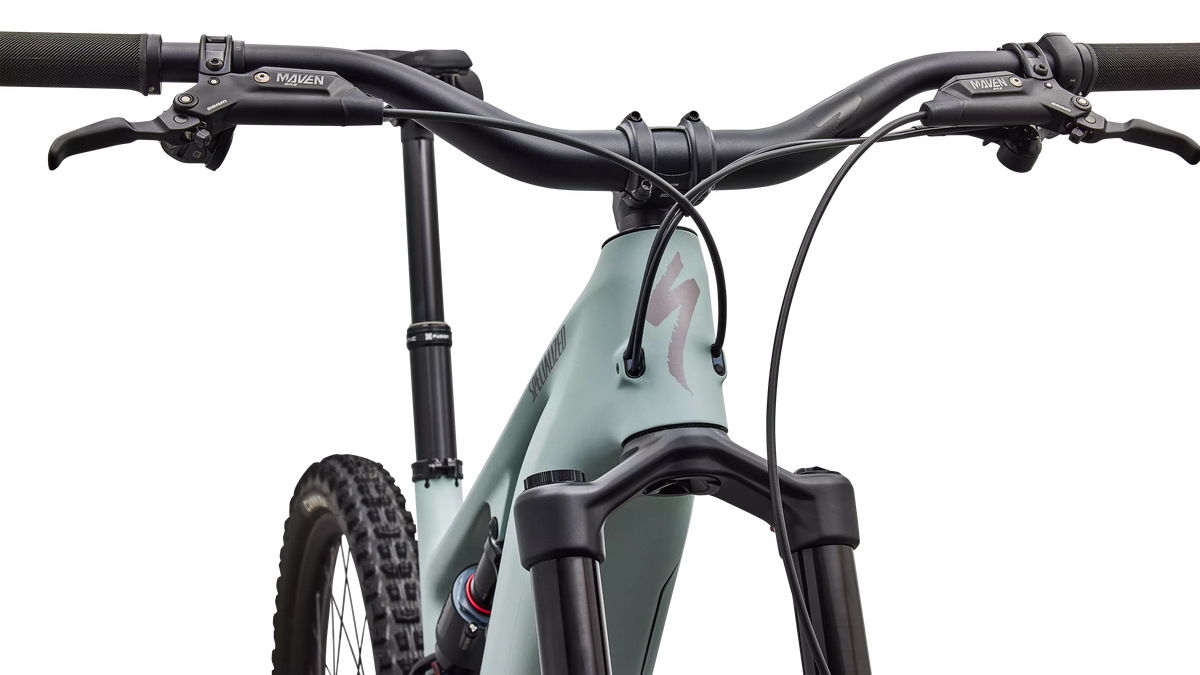

• Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
• Saddle: Bridge Comp, Hollow Cr-mo rails 155/143
• Grips: Specialized Trail Grips
• Seatpost: Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 200mm

Accessories

• SWAT: SWAT Internal downtube storage

Geometry (mm)

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

Weight: approx. 55 lbs, manufacturer spec
